Yamaha DME Series User Manual

1. Installing the Software
4. In-depth information
on DME Units
3. Advanced Setup
(via Ethernet cables)
2. Basic Setup
(via USB cable)
Appendix: Detailed
DME-N Network Driver Settings

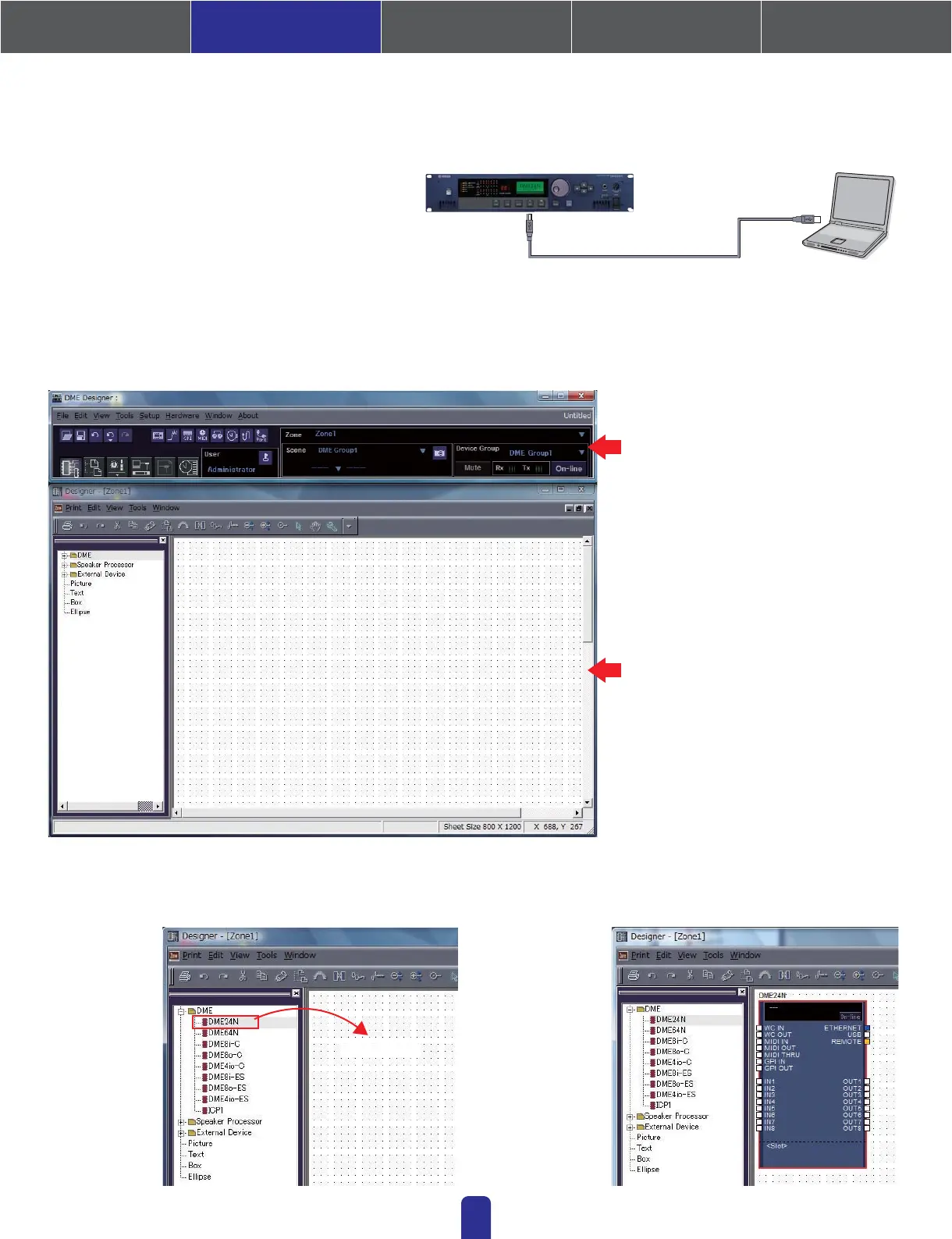

USB cable
Main Panel window
Upon launch, two windows will be displayed.
2-1. Preparation
Before launching DME Designer, it is critical that the DME unit is turned on and then connected to the computer using a USB cable.
Once the DME unit has been connected, launch DME Designer.
In order to setup the currently-connected DME unit for editing,
double-click [DME] at the le of the Designer window.
04
is section covers the most basic conguration
– that is, using a single PC to control a single DME unit.
2. Basic Setup
Connecting a single DME unit directly to a computer via USB cable
Designer window
Next, either
double-click the
currently connected
DME unit (a
DME24N in this
case) or drag and
drop it to the editing
area located to the
right of the list.
In response to this action, the Device Group and Sampling Frequency
Settings window will be displayed. Click the [OK] button to proceed.
* Group settings are not
necessary when only one
DME unit is connected.
* The sampling rate can
be changed later on.
Drag and drop

Yamaha DME Series Specifications

General

Manufacturer	Yamaha
Model Series	DME Series
Software Control	DME Designer
Sampling Frequency Rate	48 kHz
Internal Processing	32-bit
Total Harmonic Distortion	0.005%
Frequency Response	20 Hz - 20 kHz
Connectivity	Ethernet, MIDI, Analog, Digital
Control	Ethernet
Input Channels	Varies by model
Output Channels	Varies by model
Network Capability	Ethernet for control and monitoring
Compatibility	Windows
Type	Digital Mixing Engine
