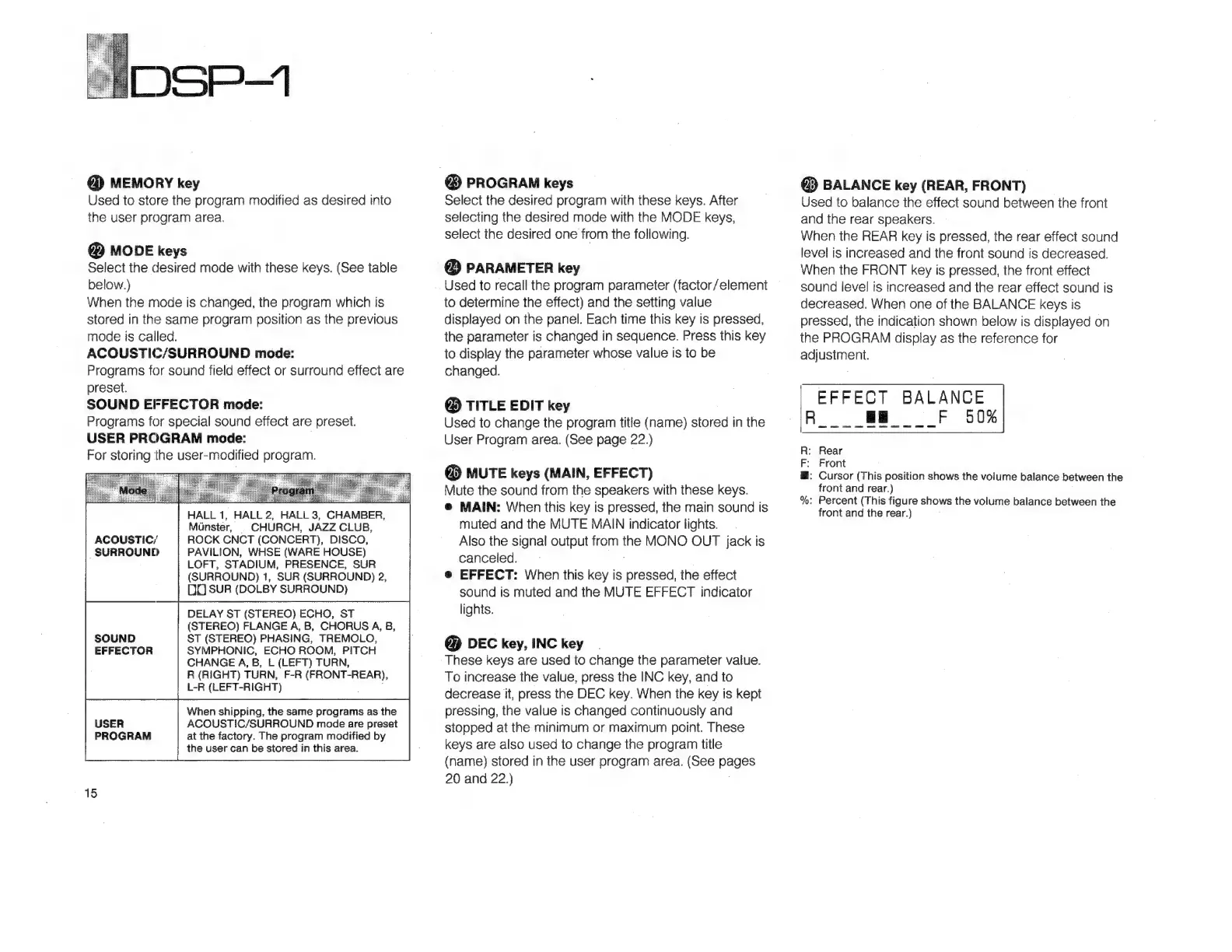

DS —1
@) MEMORY key
Used to store the program modified as desired into
the user program area.
@ MODE keys
Select the desired mode with these keys. (See table
below.)
When the mode is changed, the program which is
stored in the same program position as the previous
mode is called.
ACOUSTIC/SURROUND mode:
Programs for sound field effect or surround effect are
preset.
SOUND EFFECTOR mode:
Programs for special sound effect are preset.
USER PROGRAM mode: |
For storing the user-modified program.
i
HALL 1, HALL 2, HALL 3, GHAMBER,
Münster, CHURCH, JAZZ CLUB,
ROCK CNCT (CONCERT), DISCO,
PAVILION, WHSE (WARE HOUSE)
LOFT, STADIUM, PRESENCE, SUR
(SURROUND) 1, SUR (SURROUND) 2,
OO) SUR (DOLBY SURROUND)
ACOUSTIC;
SURROUND
DELAY ST (STEREO) ECHO, ST
(STEREO) FLANGE A, B, CHORUS A, B,
ST (STEREO) PHASING, TREMOLO,
SYMPHONIC, ECHO ROOM, PITCH
CHANGE A, B, L (LEFT) TURN,
R (RIGHT) TURN, F-R (FRONT-REAR),
L-R (LEFT-RIGHT)
SOUND
EFFECTOR
When shipping, the same programs as the
ACOUSTIC/SURROUND mode are preset
at the factory. The program modified by
the user can be stored in this area.
USER
PROGRAM
15
&® PROGRAM keys
Select the desired program with these keys. After
selecting the desired mode with the MODE keys,
select the desired one from the following.
6D PARAMETER key
. Used to recall the program parameter (factor/element
to determine the effect) and the setting value
‘displayed on the panel. Each time this key is pressed,
the parameter is changed in sequence. Press this key
to display the parameter whose value is to be
changed.
@ TITLE EDIT key
Used to change the program title (name) siöreð in the
User Program area. (See page 22.)
@ MUTE keys (MAIN, EFFECT)
Mute the sound from the speakers with these keys.
@ MAIN: When this key is pressed, the main sound is
muted and the MUTE MAIN indicator lights. — .
Also the signal output from the MONO OUT jack is
canceled.
@ EFFECT: When this key is weed the effect
sound is muted and the MUTE EFFECT indicator
lights.
@ DEC key, INC key
‘These keys are used to change the parameter value.
To increase the value, press the INC key, and to
decrease it, press the DEC key. When the key i is kept
pressing, the value is changed continuously and
stopped at the minimum or maximum point. These
keys are also used to change the program title
(name) stored in the user program area. (See pages
20 and 22.)
@ BALANCE key (REAR, FRONT)
Used to balance the effect sound between the front
and the rear speakers.
When the REAR key is pressed, the rear effect sound
level is increased and the front sound is decreased.
When the FRONT key is pressed, the front effect
sound level is increased and the rear effect sound is
decreased. When one of the BALANCE keys is
pressed, the indication shown below is displayed on
the PROGRAM display as the reference for
adjustment.
EFFECT BALANCE
R: Rear
F: Front
@: Cursor (This position shows the volume balance between the
front and rear.)
%: Percent (This figure shows the volume balance between the
front and the rear.)
