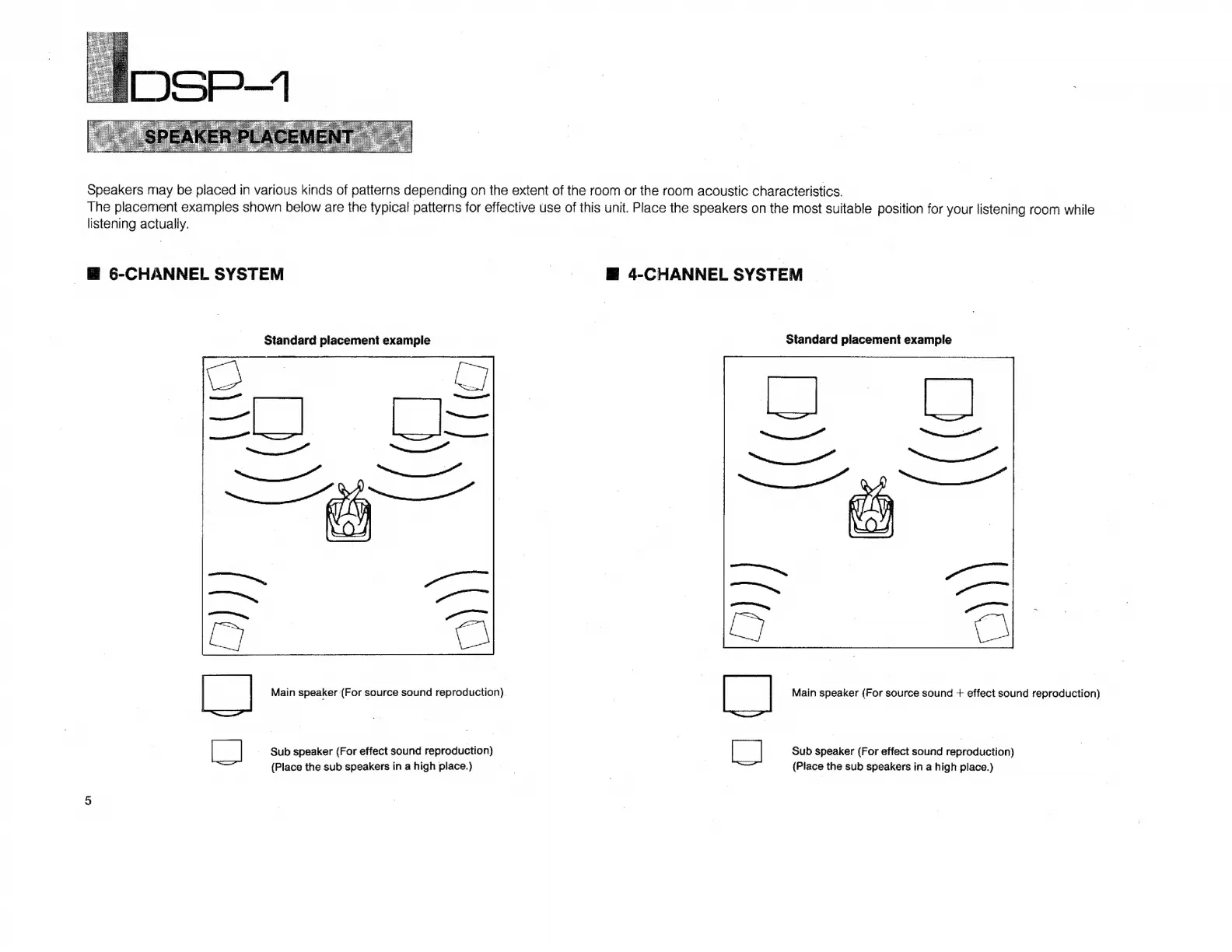

Yamaha DSP-1 - SPEAKER PLACEMENT; 6-Channel System Placement; 4-Channel System Placement

Speakers may be placed in various kinds of patterns depending on the extent of the room or the room acoustic characteristics.
The placement examples shown below are the typical patterns for effective use of this unit. Place the speakers on the most suitable position for your listening room while
listening actually. |
Æ 6-CHANNEL SYSTEM | 3 E 4-CHANNEL SYSTEM
Standard placement example Standard placement example
| | Main speaker (For source sound reproduction). | | Main speaker (For source sound + effect sound reproduction)
|_| Sub speaker (For effect sound reproduction) |_| Sub speaker (For effect sound reproduction)
(Place the sub speakers in a high place.) . (Place the sub speakers in a high place.)
