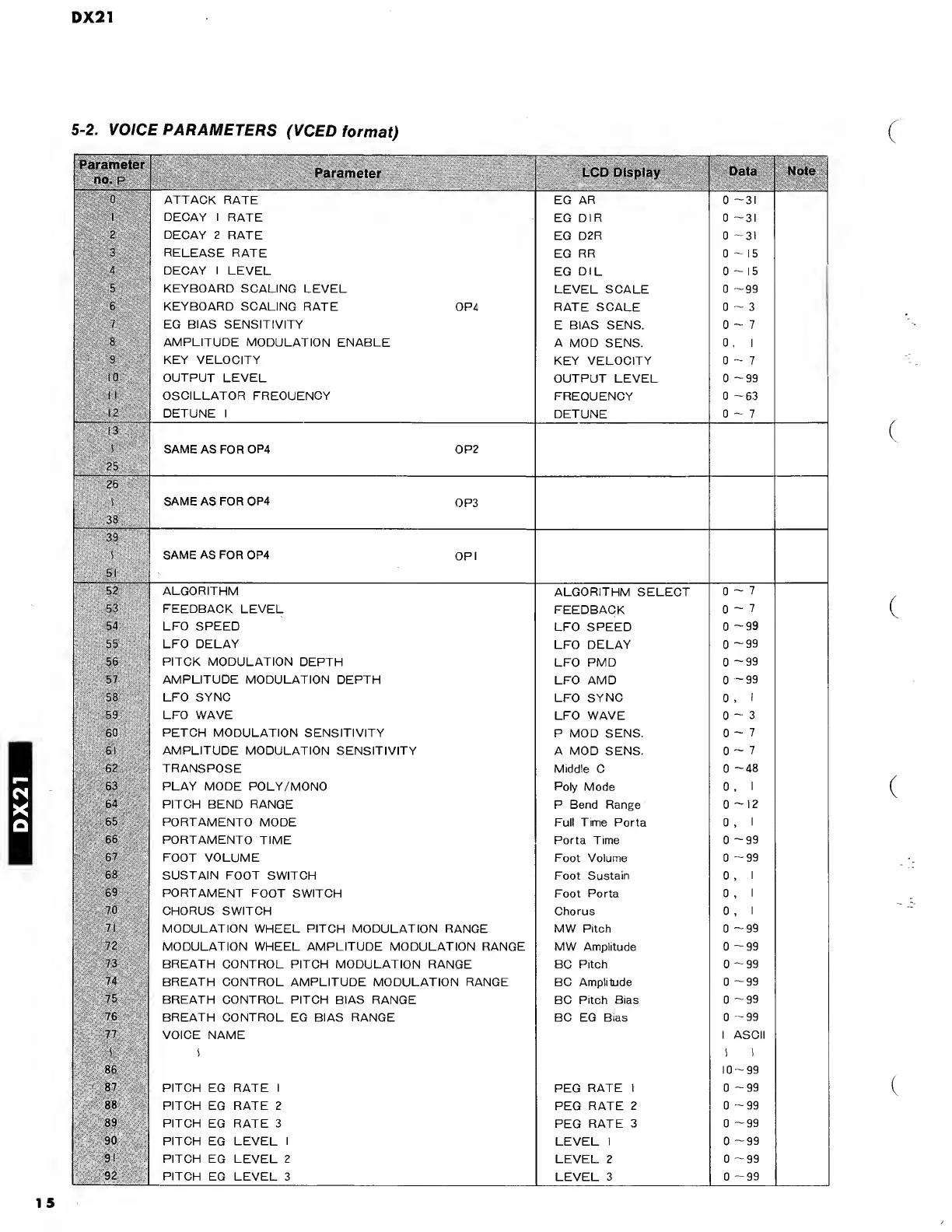

5-2. VOICE PARAMETERS (VCED format)
1 Parameter
no. p
Parameter
LCD Display
Data
Note
0
ATTACK RATE EG AR 0 — 31
]
DECAY 1 RATE
EG DIR
0 — 31
2
DECAY 2 RATE
EG D2R
0 — 31
3
RELEASE RATE
EG RR
0 ~ 15
4
DECAY 1 LEVEL
EG DIL
0 ~ 15
5
KEYBOARD SCALING LEVEL
LEVEL SCALE
0 ~99
6
KEYBOARD SCALING RATE OP4
RATE SCALE
0 ~ 3
7
EG BIAS SENSITIVITY
E BIAS SENS.
0-7
8
AMPLITUDE MODULATION ENABLE
A MOD SENS.
0 . 1
9
KEY VELOCITY
KEY VELOCITY 0-7
10 OUTPUT LEVEL
OUTPUT LEVEL
0-99
1 1
OSCILLATOR FREOUENCY
FREOUENCY
0-63
12
DETUNE 1
DETUNE
0-7
13
1
SAME AS FOR OP4 OP2
25
26
V
SAME AS FOR OP4 OP3
38
39
1
SAME AS FOR OP4 OPI
51
52
ALGORITHM
ALGORITHM SELECT
0-7
53
FEEDBACK LEVEL
FEEDBACK
0~7
54
LFO SPEED
LFO SPEED
0~99
55 LFO DELAY
LFO DELAY
0~99
56
PITCK MODULATION DEPTH
LFO PMD
0~99
57
AMPLITUDE MODULATION DEPTH
LFO AMD 0 ~99
58
LFO SYNC
LFO SYNC 0 , 1
59 LFO WAVE
LFO WAVE
0~3
60
PETCH MODULATION SENSITIVITY
P MOD SENS.
0~7
61 AMPLITUDE MODULATION SENSITIVITY
A MOD SENS.
0~7
62
TRANSPOSE
Middle C
0-48
63
PLAY MODE POLY/MONO
Poly Mode 0 , 1
64
PITCH BEND RANGE
P Bend Range
0-12
65
PORTAMENTO MODE
Full Time Porta
0 , 1
66
PORTAMENTO TIME Porta Time 0 ~99
67
FOOT VOLUME
Foot Volume
0-99
68
SUSTAIN FOOT SWITCH Foot Sustain
0 , I
69
PORT AMENT F~OOT SWITCH Foot Porta
0 , 1
ffllPip
CHORUS SWITCH
Chorus
0 , 1
MODULATION WHEEL PITCH MODULATION RANGE MW Pitch
0-99
MODULATION WHEEL AMPLITUDE MODULATION RANGE
MW Amplitude
0 -99
j; ■
BREATH CONTROL PITCH MODULATION RANGE BC Pitch 0 -99
BREATH CONTROL AMPLITUDE MODULATION RANGE BC Amplitude
0-99
BREATH CONTROL PITCH BIAS RANGE
BC Pitch Bias
0 -99
BREATH CONTROL EG BIAS RANGE BC EG Bias
0-99
VOICE NAME 1 ASCII
iMillillllllll
•-
10-99
PITCH EG RATE 1 PEG RATE 1
0-99
PITCH EG RATE 2
PEG RATE 2
0-99
PITCH EG RATE 3 PEG RATE 3
0-99
mm 1
PITCH EG LEVEL 1
LEVEL 1
0 -99
PITCH EG LEVEL 2 LEVEL 2
0 -99
>;A
PITCH EG LEVEL 3
LEVEL 3
0 -99
