PERIODIC MAINTENANCE AND MINOR REPAIR
Removing and installing the
cowlings and panel

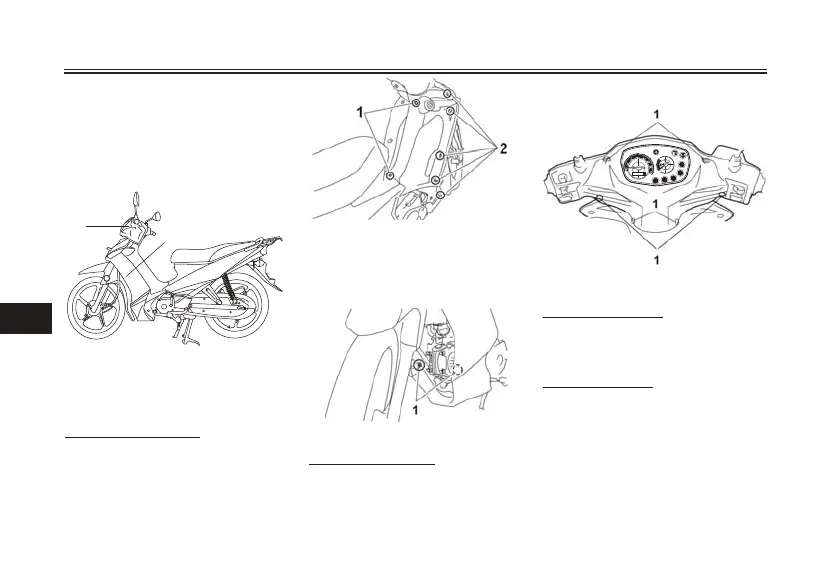

The cowling and panels shown need to
be removed to perform some of the
maintenance jobs described in this
chapter. Refer to this section each time
the cowling or a panel needs to be
removed and installed.
1. Cowling
2. Panel
Removing and installing the cowling
To remove the cowling
1. Remove group A screws (2 pcs).
2. Remove group B screws (10 pcs).
Removing and installing the panel
To remove the panel
To install the panel
1. Place the panel in the original position.
2. Install the screws.
To install the cowling
1. Place the cowling in the original
position.
2. Install the screws.
1. Remove the screws (6 pcs).
2. Remove the panel.
1. Group A screws (x2)
2. Group B screws (x10)
3. Remove group C screws (2 pcs).
4. Remove the cowling.
1. Group C screws (x2)
1. Group C screws (x6)
