Yamaha EF4000DFW - Wiring Diagram; Ef4000 Dfw

– 39 –

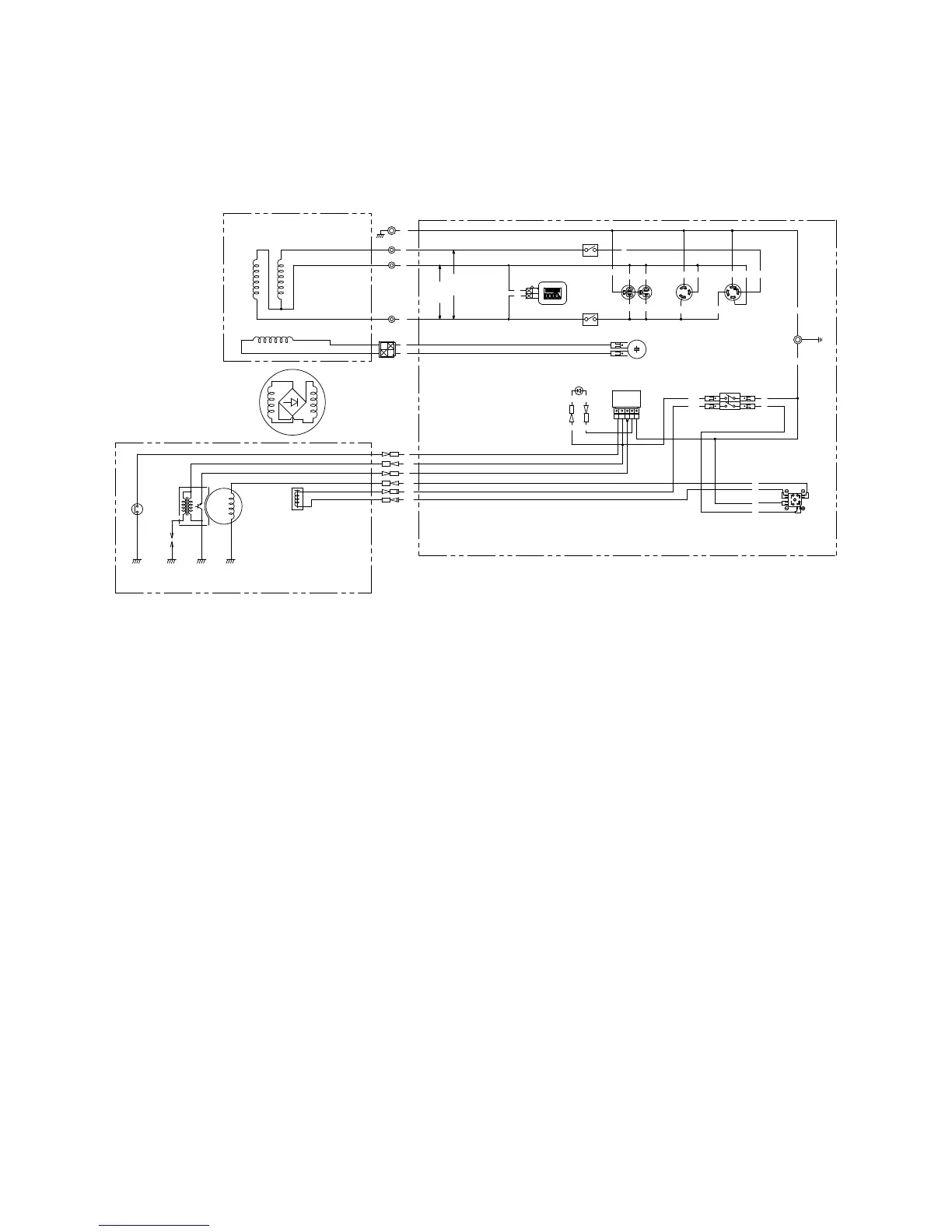

WIRING DIAGRAM
EF4000DFW
1 Rotor assembly
2 Sub coil
3 Main coil
4 Stator assembly
5 Voltage/hour meter
6 AC switch (N.F.B.)
7 AC receptacle
8 Engine switch
9 Rectifier
0 Condenser
q Oil warning unit
w Oil warning light
e Carburetor solenoid valve
r Charging coil
t TCI unit
y Spark plug
u Oil level switch
Color code
B Black
Br Brown
G Green
L Blue
O Orange
R Red
Y Yellow
B/W Black/White
G/R Green/Red
G/Y Green/Yellow
L/R Blue/Red
L/W Blue/White
B
Br
G/Y
R
Br
G
G
R
R
Br
G
B
G/Y
G
G/Y
BL
R
Br
G/Y
R
Br
L
G/Y
240V
120V
B/W Y
B/W Y
L
B/W
B
L/R
Y
L
G/R
L/R
L/W
L
O Y
O
B/W
B/W
Br
R
Br
R
G/R
B
Y
L/W
1
2
4
5
6
6
7 7
7 7
8
0
q
w
r
t
y
u
e
3
9
