1-46
OUTBOARD MOTOR DIMENSIONS

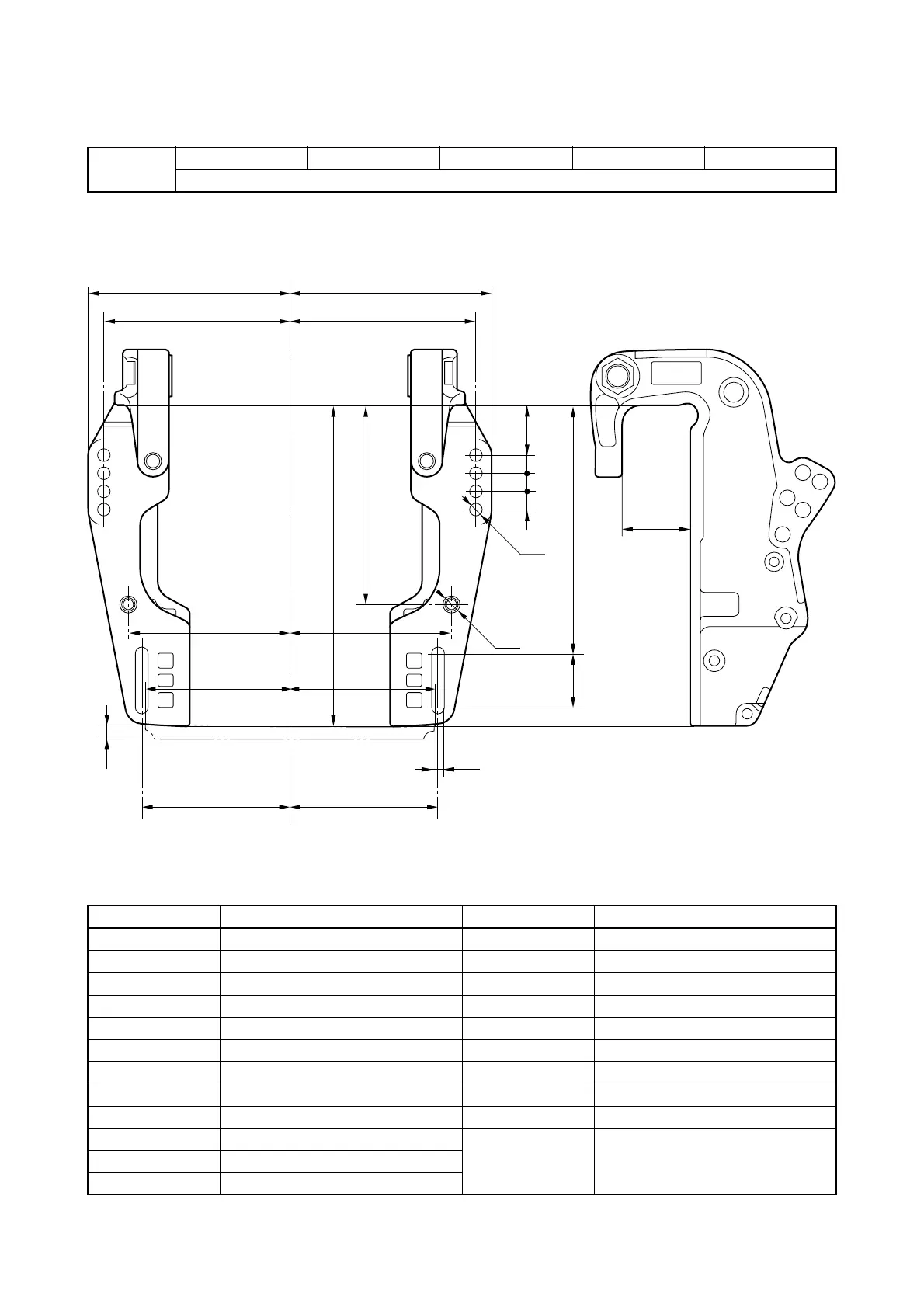

CLAMP BRACKET DIMENSIONS
Model
55B 60F E60H
PTT & Hydro-tilt for S transom
Symbol mm (in.) Symbol mm (in.)
B1 125.4 (4.9) C1 —
B2 254 (10.0) C2 —
B3 163.5 (6.4) C3 68.5 (2.7)
B4 50.8 (2.0) D1 13 (0.51)
B5 180 (7.1) D2 55.5 (2.2)
B6 329 (13.0) D3
Studbolt hole: M12 X 1.25-40 deep
B7 138.1 (5.4) D4 —
B8 203.2 (8.0) AN1 19 (0.75)
B9 18.5 (0.73) AN2 101.5 (4.0)
B10 —
B11 —
B12 —
B6
B8
B1
B7
D1
B3
B5
C/L
B2
D2
C3
D1
B4
B9
B9
B9
B1
B7
B3
B5
D3
AN1
AN2 AN2
To Next Page
