Starter motor
Removing the starter motor
Before removing the starter motor, make
sure to disconnect the negative battery ter-
minal.
1. Remove:
• Starter motor
See “Starter motor” (7-24).

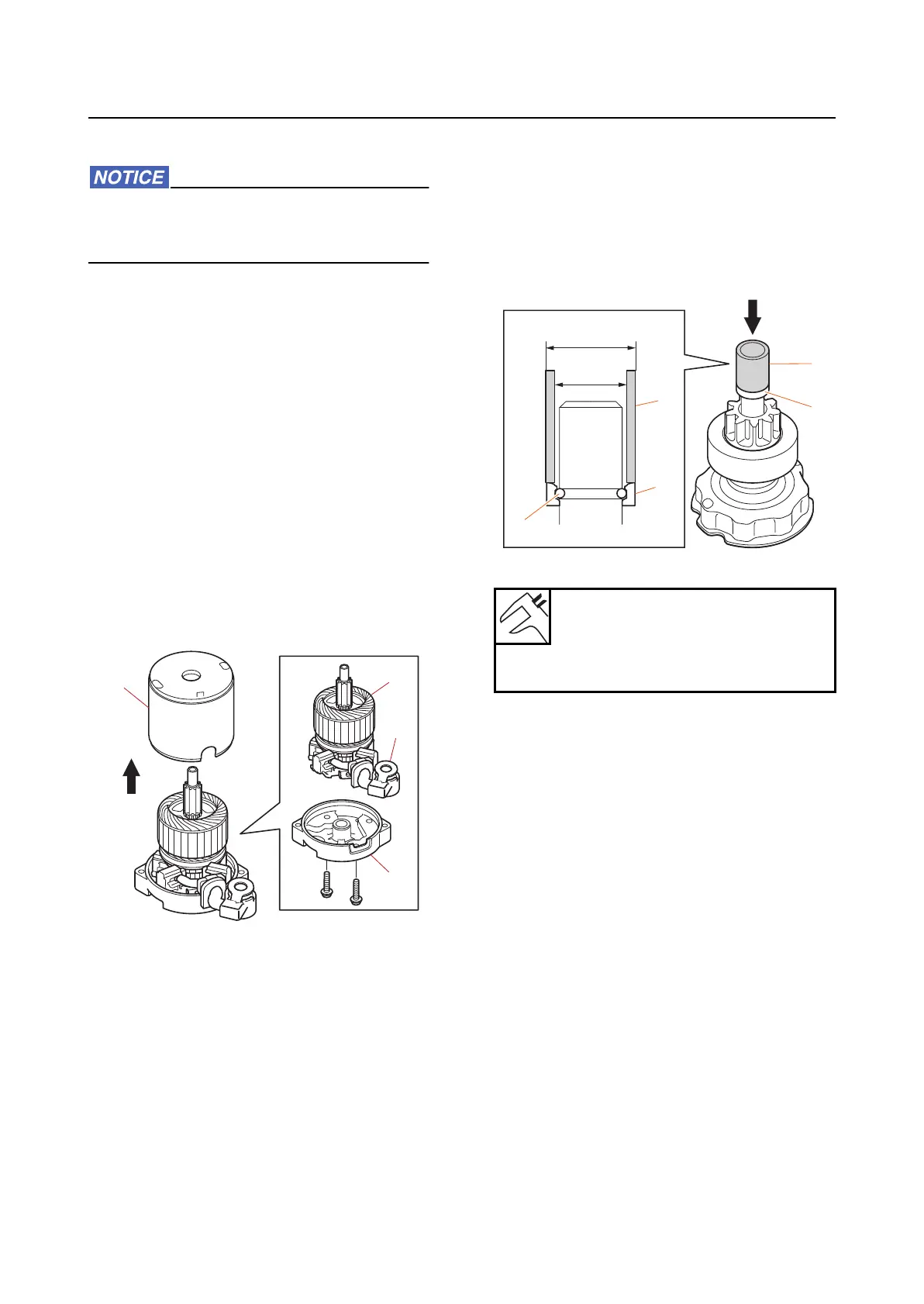

Disassembling the starter motor
1. Remove:
• Stator
• Bracket screw
•Bracket
• Armature
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Remove the stator “1”.
b. Remove the armature “2” along with the
brush holder assembly “3” from the brack-
et “4”.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
2. Remove:
•Cap
• Pinion stopper
• Clip
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Push the pinion stopper “1” down, and
then remove the clip “2”.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
Checking the starter motor pinion
1. Check:
• Pinion teeth
Cracked/worn  Replace the pinion.
2. Check:
• Pinion movement
Not smooth  Replace.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Turn the pinion counterclockwise to check
that it operates smoothly and turn it clock-
wise to check that it locks in place.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
3
2
1
4
Pipe “3”
(commercially available)
“a”: 15.5 mm (0.61 in)
“b”: 11.0 mm (0.43 in)
a
b
1
1
2
3
3
