9-27

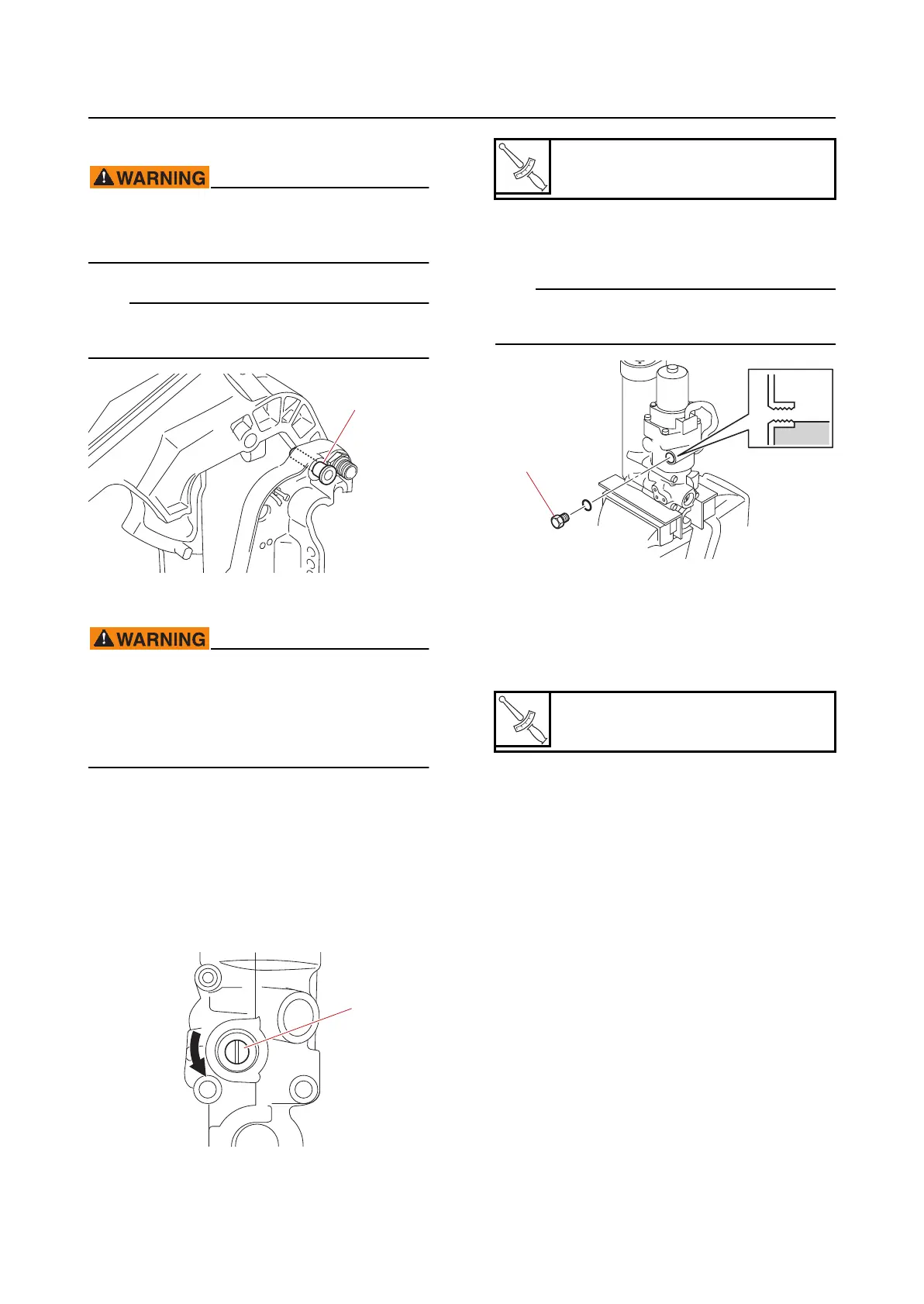

PTT unit
Removing the PTT unit
When removing the PTT unit with the power
unit installed, make sure to suspend the
outboard motor.
Fully tilt the swivel bracket up, and then sup-
port it using the tilt support knob “1”.
Bleeding the PTT unit
Before removing the reservoir cap, make
sure that the trim and tilt ram is fully ex-
tended. Otherwise, fluid could be expelled
forcefully from the PTT unit due to internal
pressure.
1. Bleed:
• PTT unit
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Place the PTT unit in an upright position.
b. Turn the manual valve “1” counterclock-
wise to check that it is closed.
c. Remove the reservoir cap “1”, and then
check the fluid level.
If the fluid is at the proper level, a small amount
of fluid should flow out of the filler hole.
d. If the fluid is below the proper level, add
the recommended fluid.
e. Install the reservoir cap, and then tighten it
to the specified torque.
Manual valve “1”
2.5 N·m (0.25 kgf·m, 1.8 lb·ft)
Reservoir cap
7 N·m (0.7 kgf·m, 5.2 lb·ft)
