5-7
GB

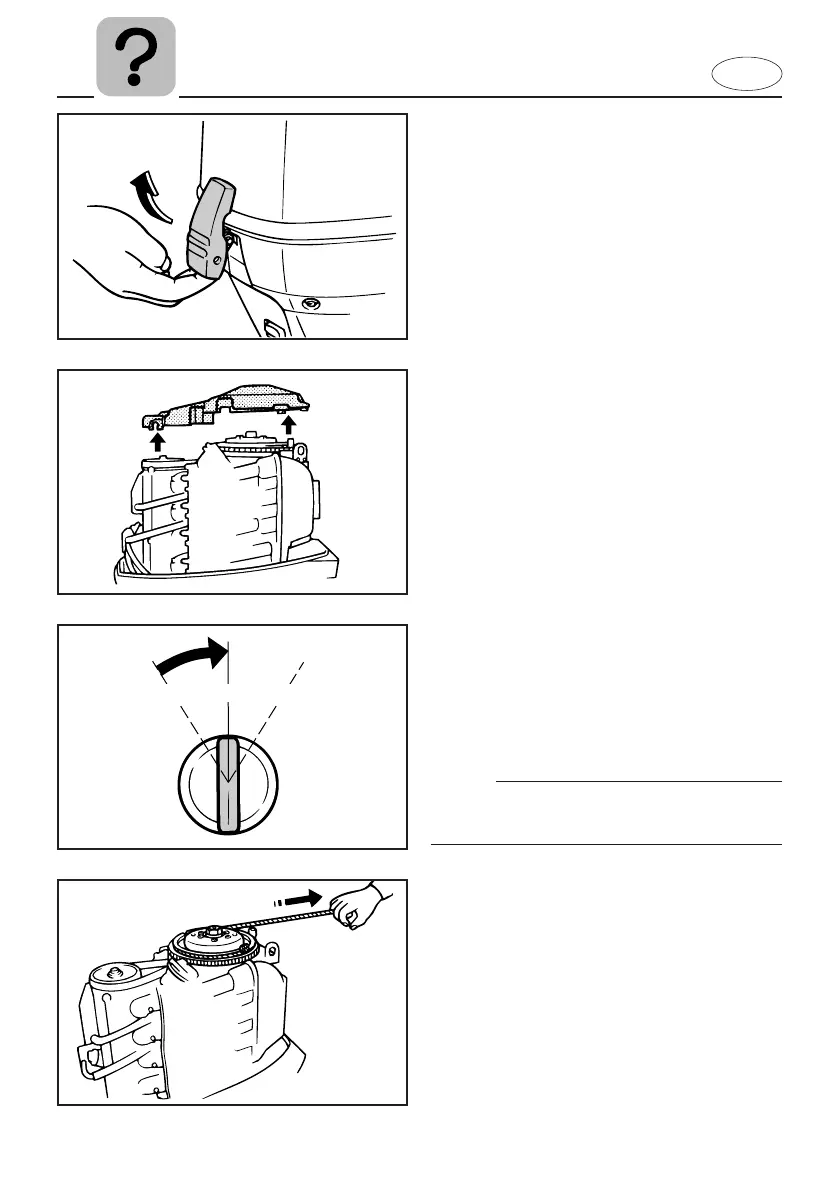

1) Remove the top cowling.
208013
208015
2) Remove the flywheel cover upward.
3) Prepare the engine for starting. See
“STARTING ENGINE” for procedures.
Be sure the engine is in Neutral and
that the lanyard is attached to the
engine stop switch. The main switch
must be “ON”.
NOTE:
Refer to “ENGINE FAILS TO OPERATE”
for cold engine starting procedures.
4) To start the engine with emergency
starter rope, insert the knotted end of
the rope into the notch in the flywheel
rotor and wind the rope several turns
clockwise. Then, give a strong pull
straight out to crank the engine.
Repeat if necessary.
62Y-9-78 (E,F,ES) 5 5/25/00 4:21 PM Page 20
