Yamaha F4A Owner's Manual

2-1
GB
q
w
r
i
u
y
o
e
t
w
!0
!1
!4
!8
!7
!6
!3
!2
!5
!9
EMU01206

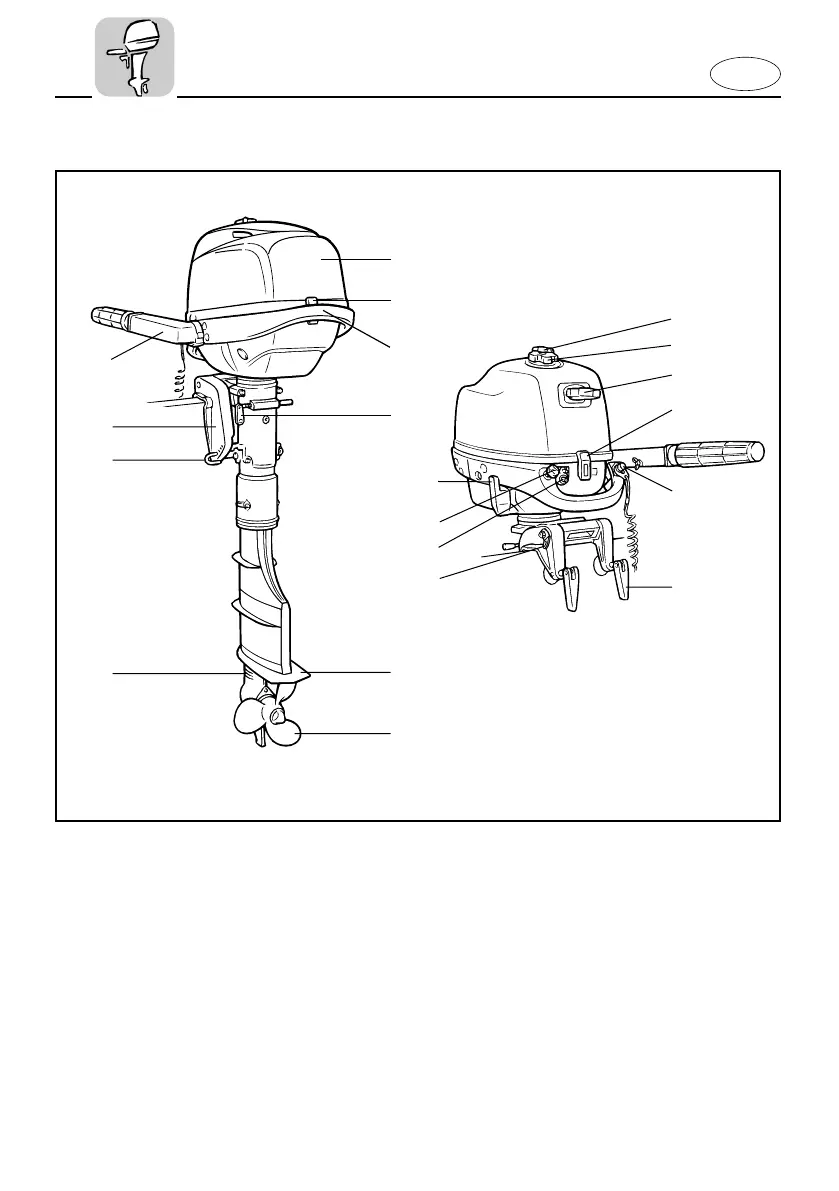

MAIN COMPONENTS
1 Top cowling
2 Top cowling lock lever
3 Carrying handle
4 Steering friction adjusting screw
5 Anti-cavitation plate
6 Propeller
7 Cooling water inlet
8 Trim angle adjusting rod
9 Clamp bracket
0 Tiller handle
q Air vent screw
w Fuel tank cap
e Recoil starter handle
r Engine stop button / Engine stop lanyard
switch
t Clamp screw
y Rope attachment
u Fuel hose joint
i Choke knob
o Gear shift lever
* May not be exactly as shown; also may not
be included as standard equipment on all
models.
68D-F9-73A0-02 3/5/03 5:43 PM Page 4

Yamaha F4A Specifications

General

Starting System	Manual
Fuel Induction System	Carburetor
Ignition System	CDI
Lubrication System	Wet sump
Max. Output	4 hp
Gear Ratio	2.08:1
Dry Weight	27 kg
Shaft Length	381 mm (S), 508 mm (L)
Steering	Tiller
Gear Shift	Forward, Neutral
