Yamaha F70 - Page 33

Components
27
F70HA
TRIP TIME BATT
Km/h
knot
mph
km
mile
SPEED
YAMAHA
set
mode
24
25
26
27
12
1
3
2
1920212223
4
11
1513
16
9
11
5
6
7
8
18
17
28
14
10
ZMU07118

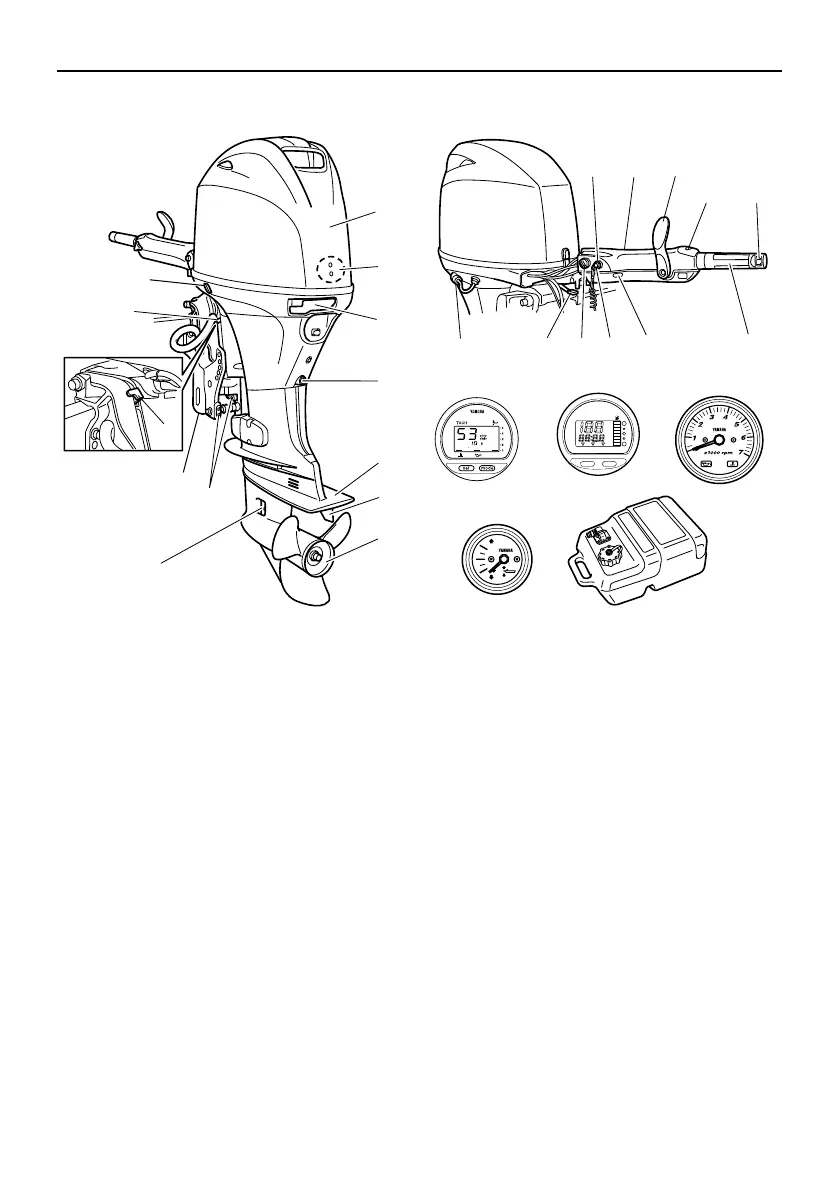

1. Top cowling
2. Water separator
3. Cowling lock lever
4. Drain screw
5. Anti-cavitation plate
6. Trim tab (anode)
7. Propeller*
8. Cooling water inlet
9. Anode(s)
10. Clamp bracket
11. Tilt support lever
12. Power trim and tilt switch
13. Engine stop button/Engine shut-off switch
14. Tiller handle
15. Gear shift lever
16. Variable trolling RPM switch
17. Power trim and tilt switch
18. Throttle grip
19. Alert indicator
20. Clip
21. Main switch
22. Steering friction adjuster
23. Flushing device
24. Digital tachometer*
25. Digital speedometer*
26. Tachometer*
27. Trim meter*
28. Fuel tank*
