Yamaha F75 - Fuel Tank (Portable Fuel Tank)

Components
24
EMU43882
Fuel tank (portable fuel tank)
This model can be equipped with an optional
portable fuel tank.
The type of portable fuel tank that is available
varies according to local laws or regulations.
If using the type “A” portable fuel tank, the
parts of the fuel tank are as follows.
WARNING
EWM00021
The fuel tank supplied with this engine is
its dedicated fuel reservoir and must not
be used as a fuel storage container. Com-
SET MODE
SET MODE
1
4
6
3
2
5
ZMU05429

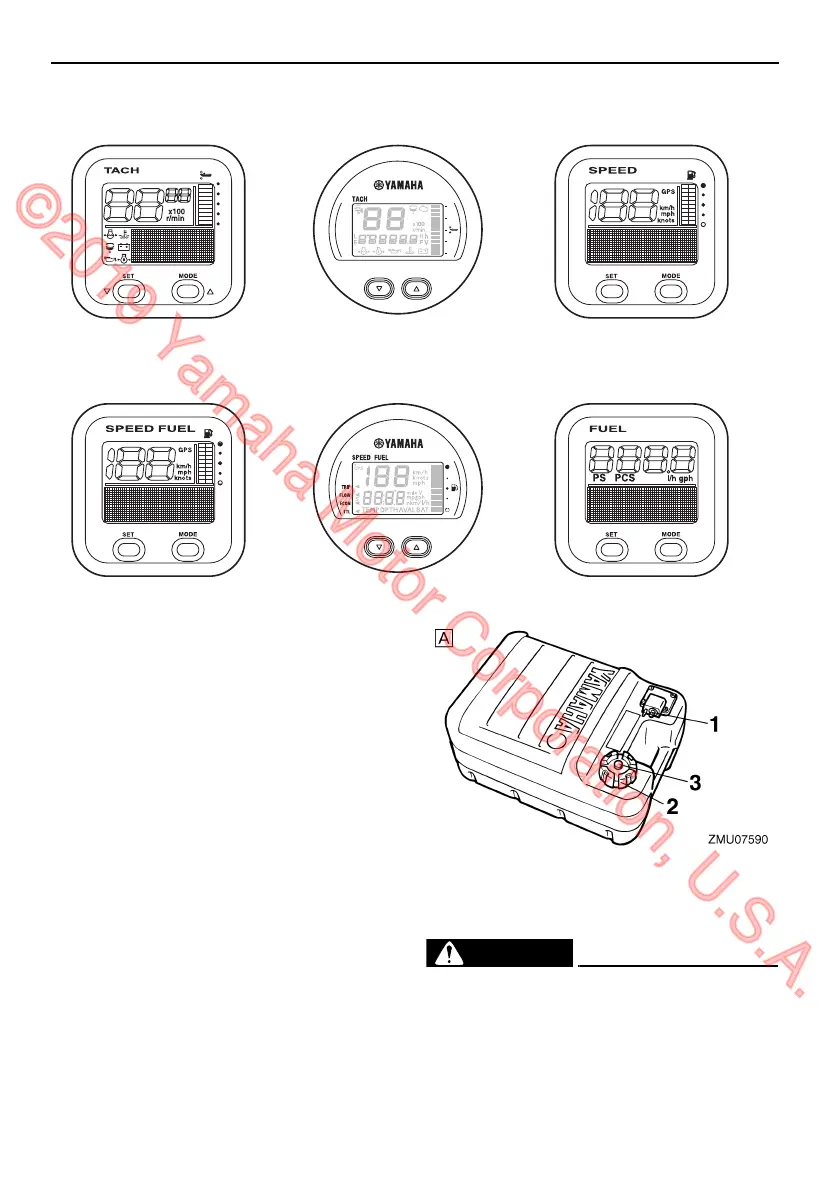

1. Tachometer unit (Square type)*
2. Tachometer unit (Round type)*
3. Speedometer unit (Square type)*
4. Speed & fuel meter unit (Square type)*
5. Speed & fuel meter unit (Round type)*
6. Fuel management meter unit (Square type)*
1. Fuel joint
2. Fuel tank cap
3. Air vent screw
