PERIODIC MAINTENANCE AND MINOR REPAIR
6-20
6
indicator groove has almost disap-
peared, have a Yamaha dealer replace
the brake pads as a set.
EAU22500
Rear brake pads
Check each rear brake pad for damage
and measure the lining thickness. If a
brake pad is damaged or if the lining
thickness is less than 0.8 mm (0.03 in),
have a Yamaha dealer replace the
brake pads as a set.
EAU22680
Checking the brake and clutch
fluid levels
Front brake
Rear brake
Clutch
Insufficient brake fluid may allow air to
enter the brake or clutch systems, pos-
sibly causing them to become ineffec-
tive.
Before riding, check that the brake fluid
is above the minimum level mark and
replenish if necessary. A low brake fluid
level may indicate worn brake pads
and/or brake system leakage. If the
brake level is low, be sure to check the
brake pads for wear and the brake sys-
tem for leakage.
NOTE:
The rear brake fluid reservoir is located
behind panel C. (See page 6-5.)
Observe these precautions:

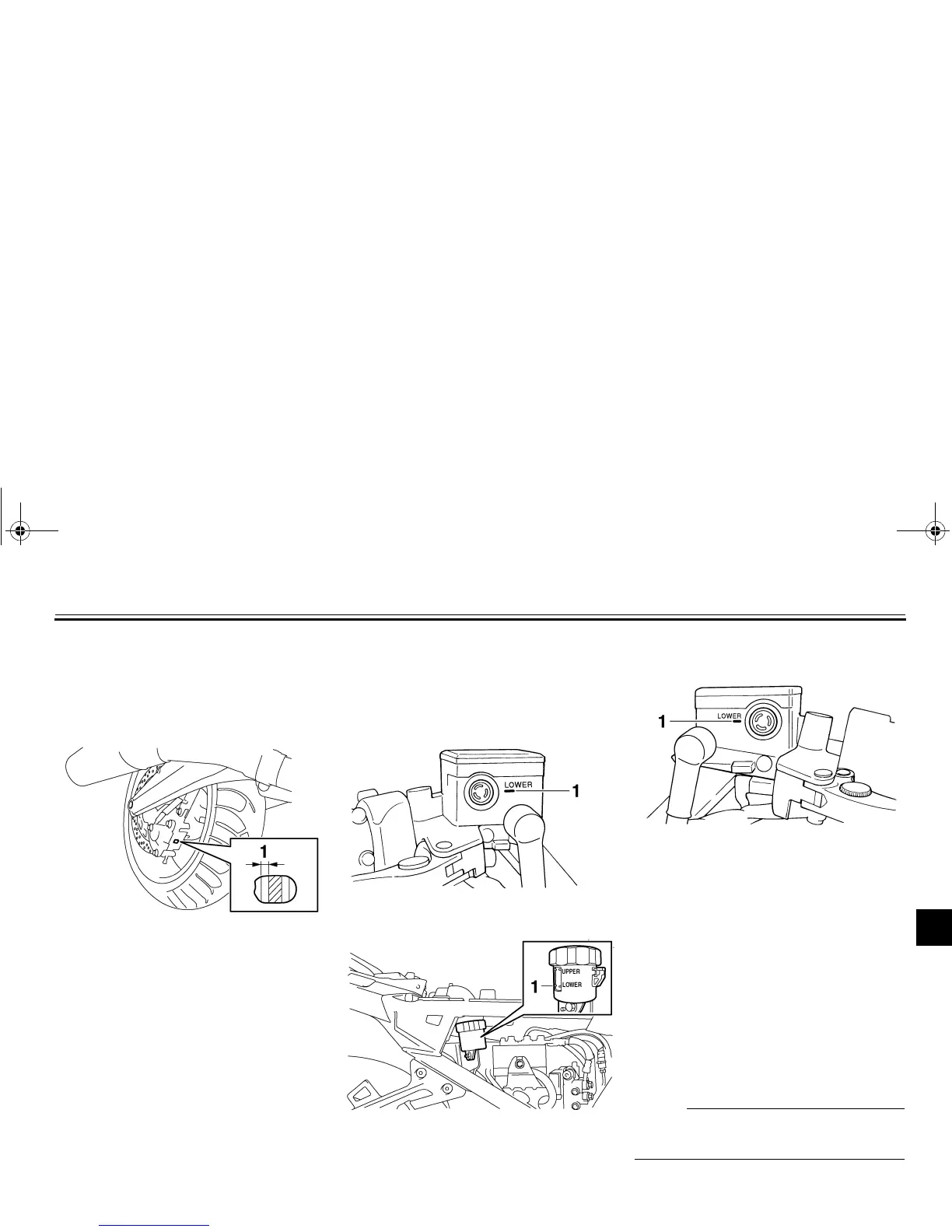

1. Lining thickness
1. Minimum level mark
1. Minimum level mark
1. Minimum level mark
