3-32

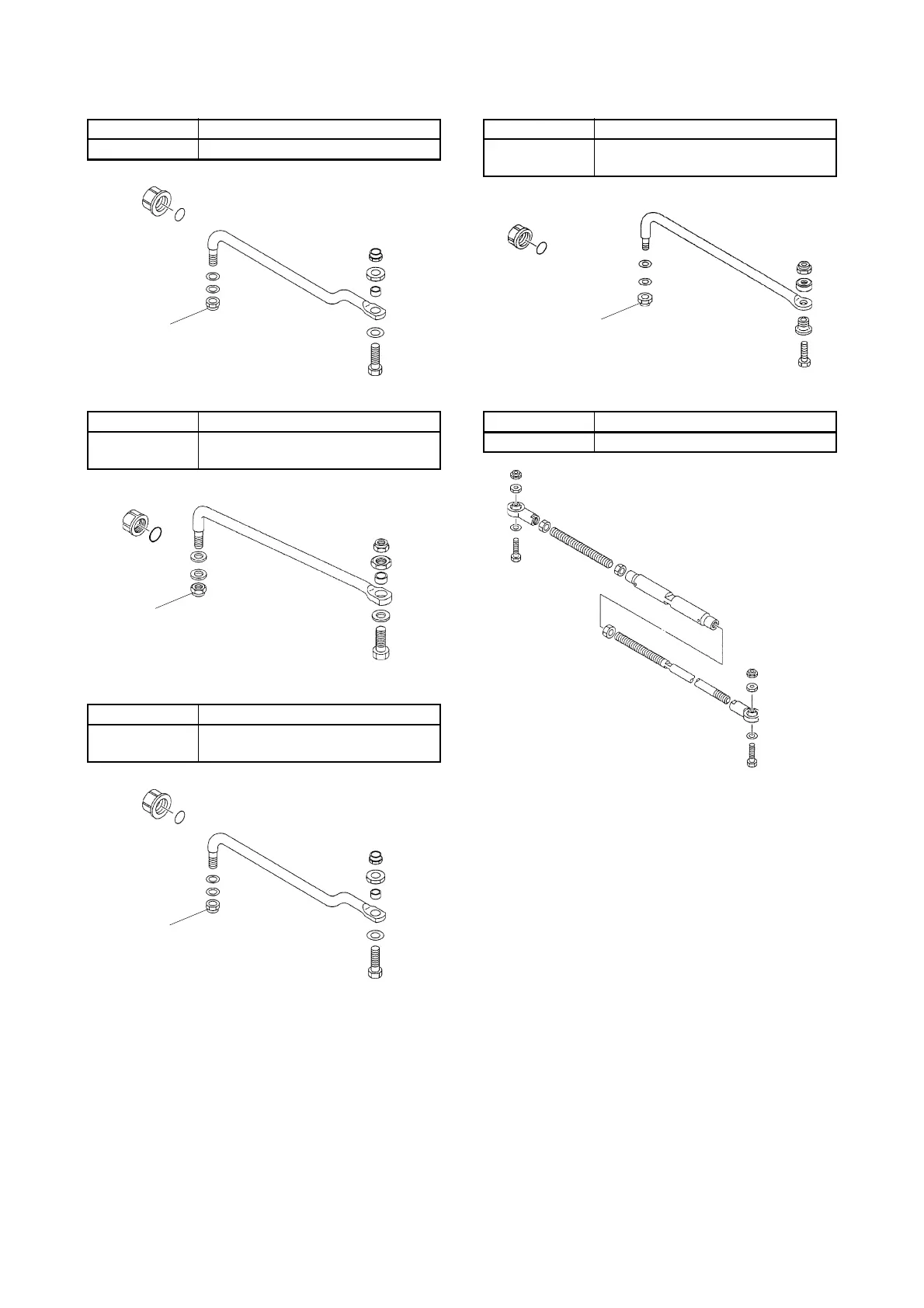

STEERING GUIDE ATTACH
MENT KIT
Part No.
Applicable model
697-61350-00
55B
Part No.
Applicable model
67F-61350-00
F75B (F75), F8
0B
F90B (F90), F100D
Part No.
Applicable model
688-61350-10
60F, 70B (70), 75C, 90A (90)
75A, 85A, E60H
(1)
(1)
(1)
Part No.
Applicable model
6E5-61350-02
F75C, F95A, F100B
F115 – F250, 115 – 300
Part No.
Applicable model
6E5-61301-01
40 – 300, F30 – F250
(1)
Twin engine tie-bar kit
Adjustable distance:
600 mm (23.6 in.) – 800 mm
(31.5 in.)
101
103
