Yamaha FT8DMH Rigging Guide

5-37
Remote
Oil Tank
Fuel tank
OUT
IN
2-stroke oil injection
(*2)
6Y5-83553-F1 (8 m)
6Y5-85752-02
Speed hose (* 1)
6R3-85721-30 (3 m)
-50 (5 m) -80 (8 m)
6Y5-83653-00 (5 m)
-10 (6 m) -20 (7 m) -30 (8 m) -40 (9 m) -50 (10.5 m)
6Y5-8350T-90
FUEL
SPEED
TACH
GPS
(*1)
6Y5-85721-F0
6Y5-87122-S0
(* 1) Select either speedometer or GPS (NMEA0183)
If GPS is connected, speed tube is not required.
(* 2) Water separator (Market obtainable)
NMEA
0183
Engine Oil Tank
688-82520-00
6Y5-83553-M0 (2.5 m)
GPS
NMEA
0183
Speed hose (* 1)
6Y5-85721-F0
SPEED/FUEL
(+)
(+)

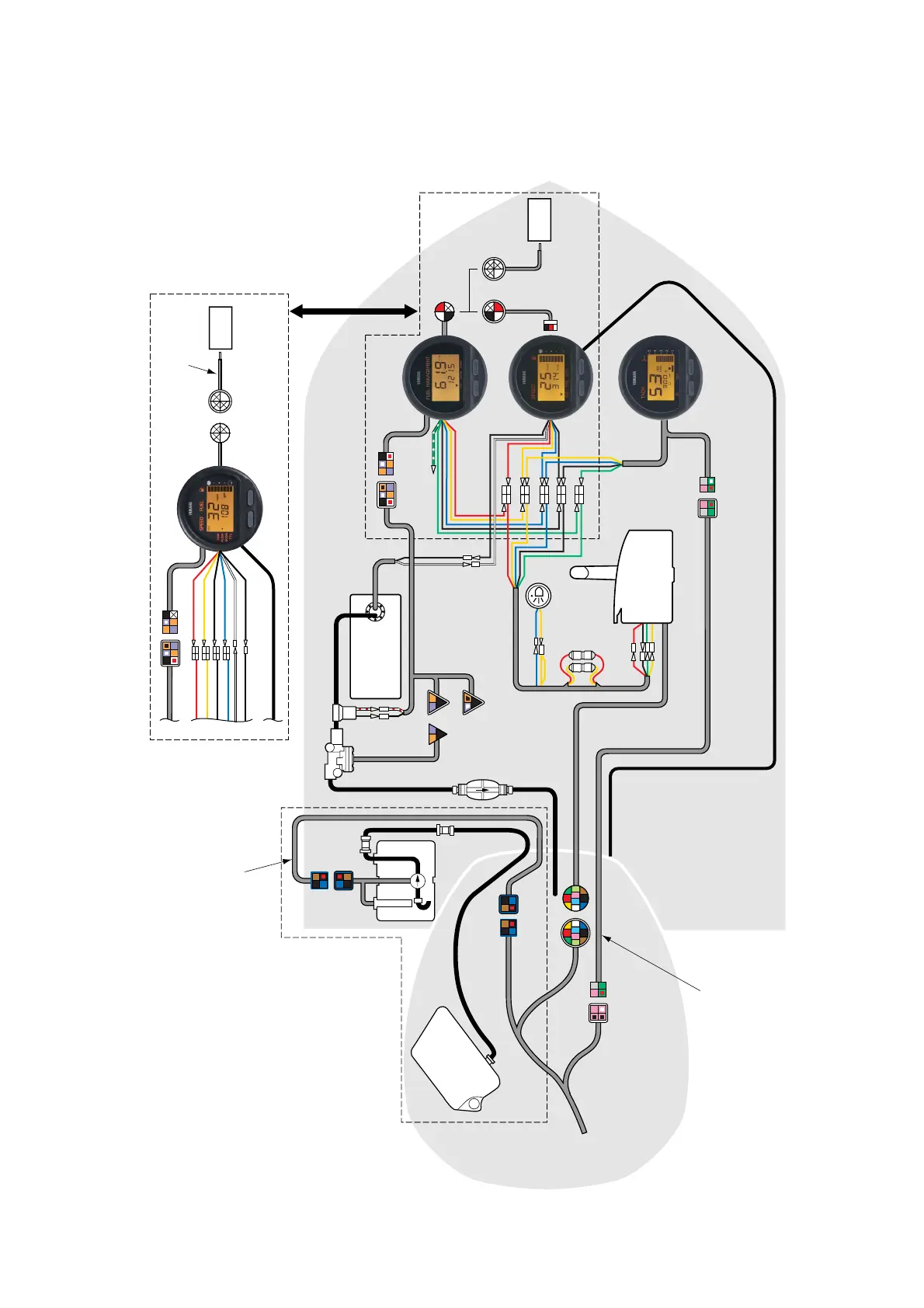

WIRING DIAGRAMS
DIGITAL METER
SINGLE-MOTOR w/ SIDE-MOUNT RC
115-300 w/ oil injection (except 250G),
F115-F250

Yamaha FT8DMH Specifications
