Yamaha FT8DMH Rigging Guide

3-21

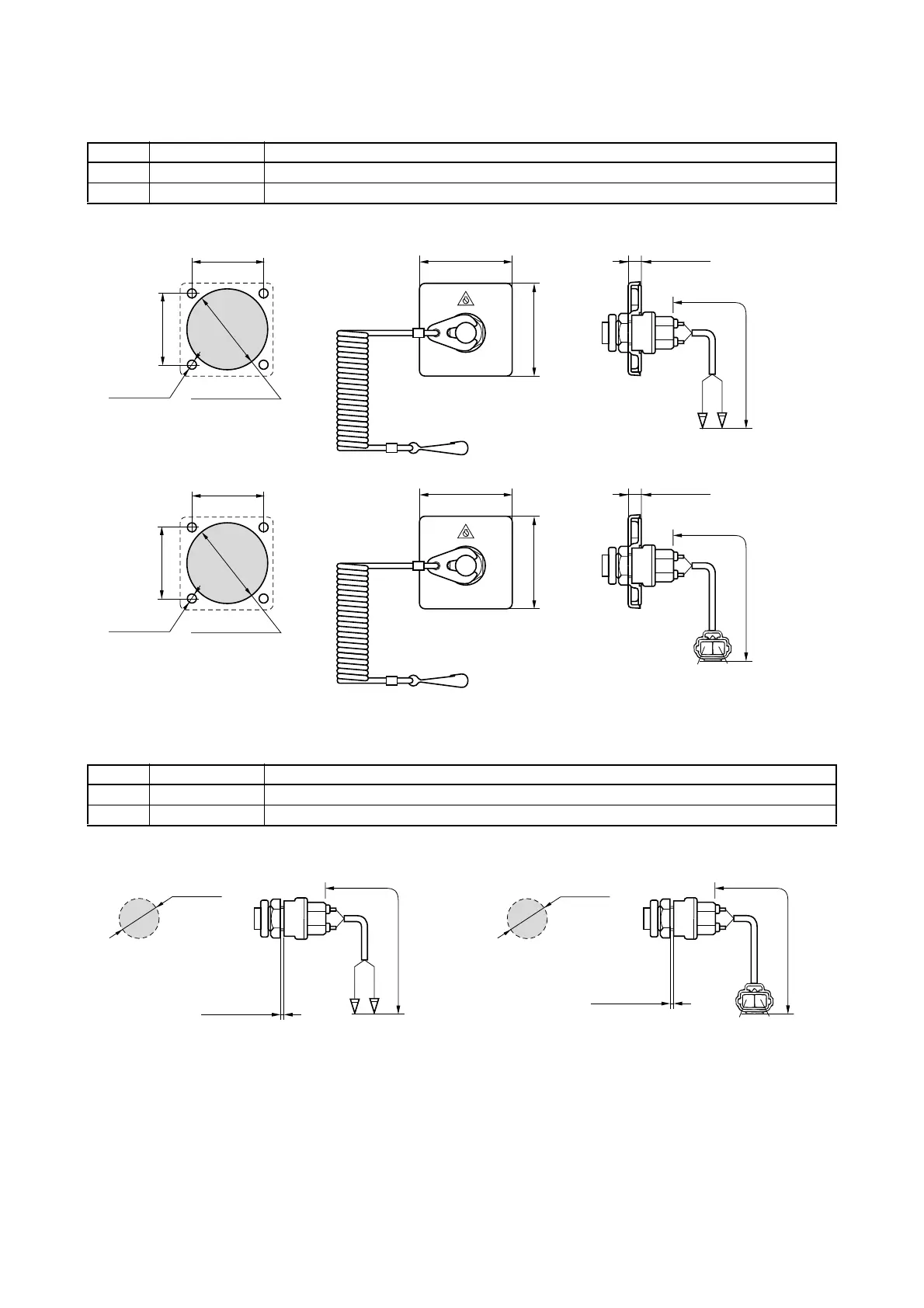

REMOTE SWITCH APPLICATIONS
EMERGENCY STOP SWITCH W/ PANEL
EMERGENCY STOP SWITCH W/O PANEL
Ref. No. Part No. Description
1 64D-82570-10 With bullet connectors for stop switch
2 64D-82570-30 With 2-pin coupler for stop switch
Ref. No. Part No. Description
1 688-82575-01 With bullet connectors for stop switch
2 64D-82575-10 With 2-pin coupler for stop switch
63 (2.48)
63 (2.48)
9 (0.35)
W
B
1000 (39.4)
47 (1.85)
47 (1.85)
54 (2.12)5.6 (0.22)
63 (2.48)
63 (2.48)
9 (0.35)
1000 (39.4)
B
W
47 (1.85)
47 (1.85)
54 (2.12)5.6 (0.22)
1
2
mm (in.)
mm (in.)
W
B
1000 (39.4)
16 (0.63)
1000 (39.4)
B
W
16 (0.63)
Max. 4 (0.16)
Max. 4 (0.16)
12
mm (in.)mm (in.)
