3-27

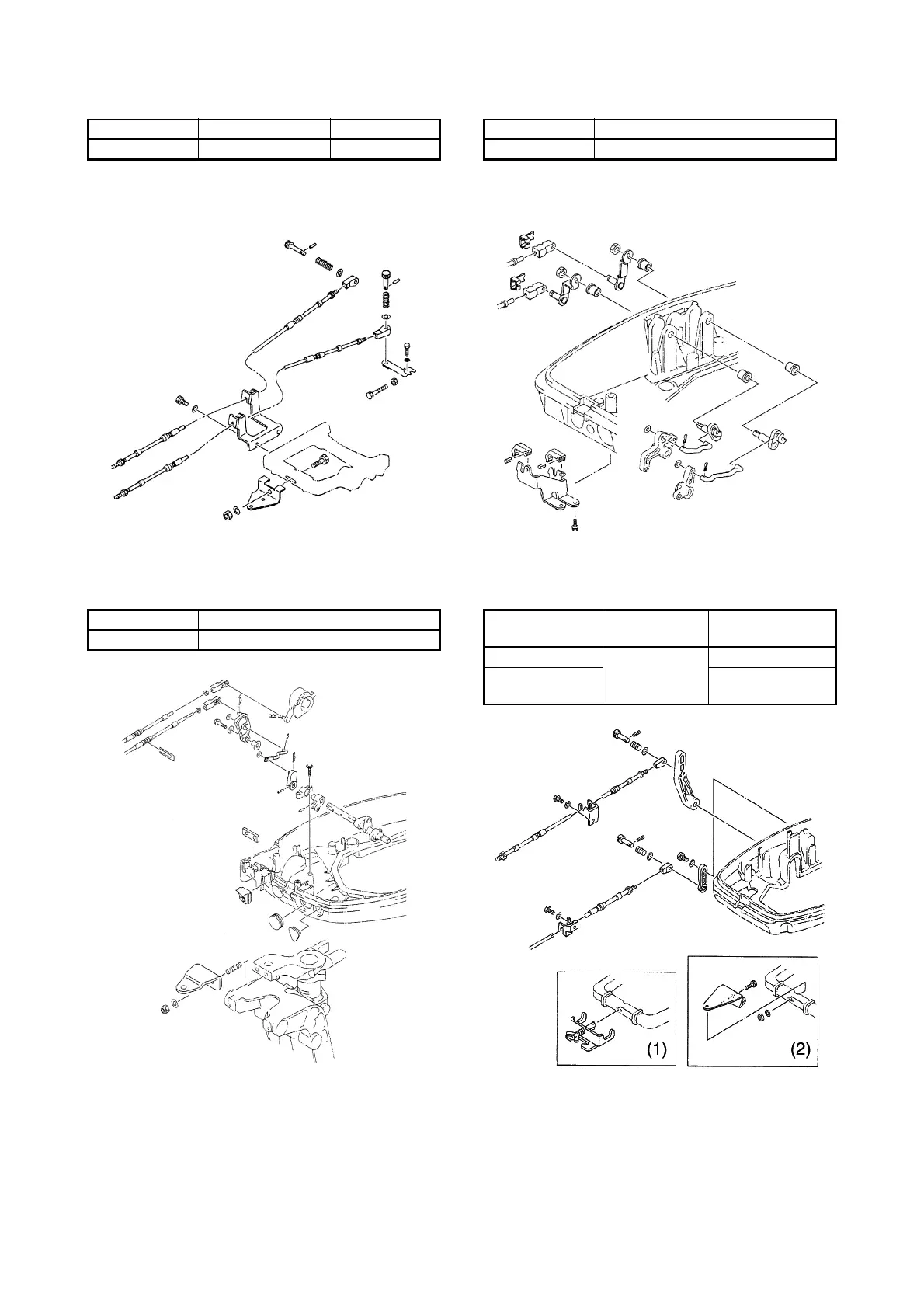

REMOTE CONTROL ATTACHMENT KIT
Part No.
Applicable model
Remarks
655-48501-10
E8D/EK8D
Ball post type
Part No.
Applicable model
65W-48501-00
F20A, F25A (F25), FT25B (T25)
Part No.
Applicable model
6L2-48501-11
20D (20
), 25N (25)
Part No.
Applicable
model
Remarks
689-48501-01-4D
25B, 25X, 30H
E25B, E30H
Rope type (1)
689-48501-21-4D
Ball post/ Steer-
ing guide type (2
)
To be continued.
