15
Function and operation of components

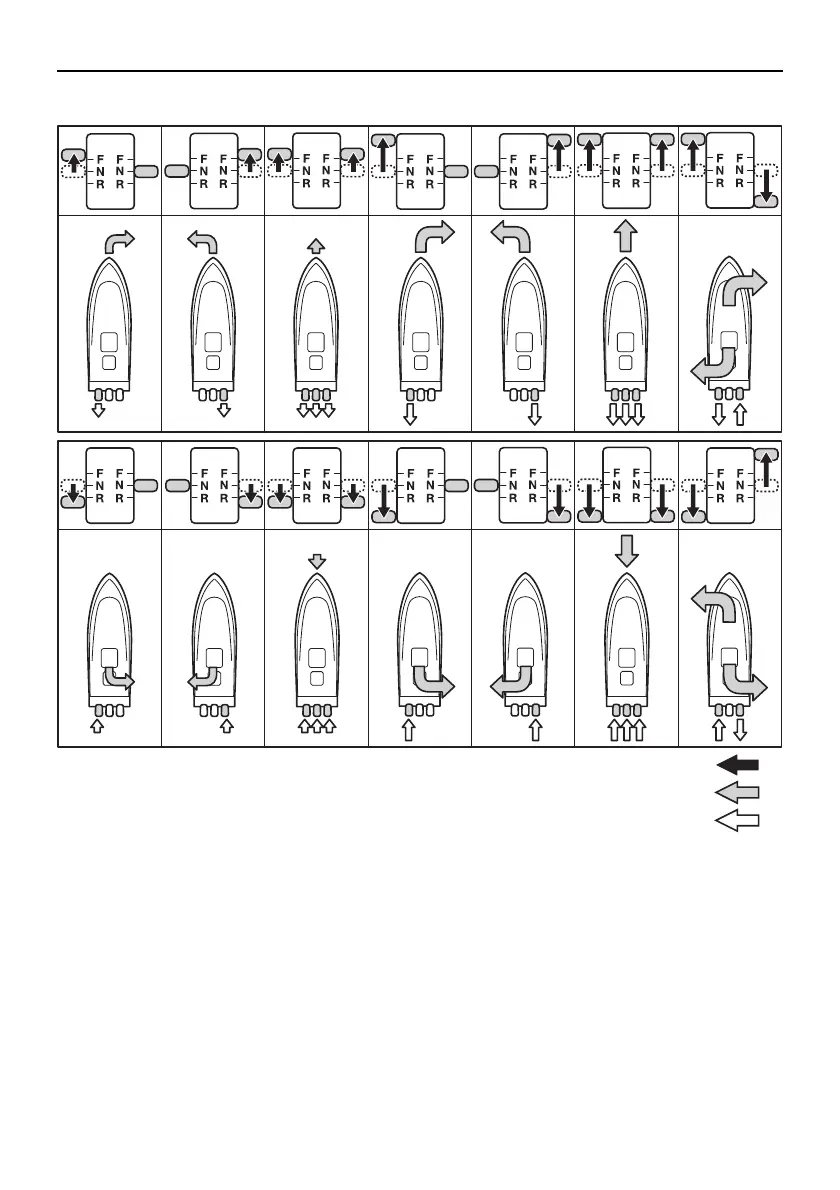

By moving both remote control levers, the boat can be maneuvered as shown below.
A. Lever operation
B. Boat direction and turning force (The size of the arrow is proportional to the turning
force.)
C. Propulsion
A
B
C
