Yamaha M7CL StageMix V1.5 - iPad WiFi Settings

Yamaha Commercial Audio M7CL StageMix User Guide V1.5
Page 5

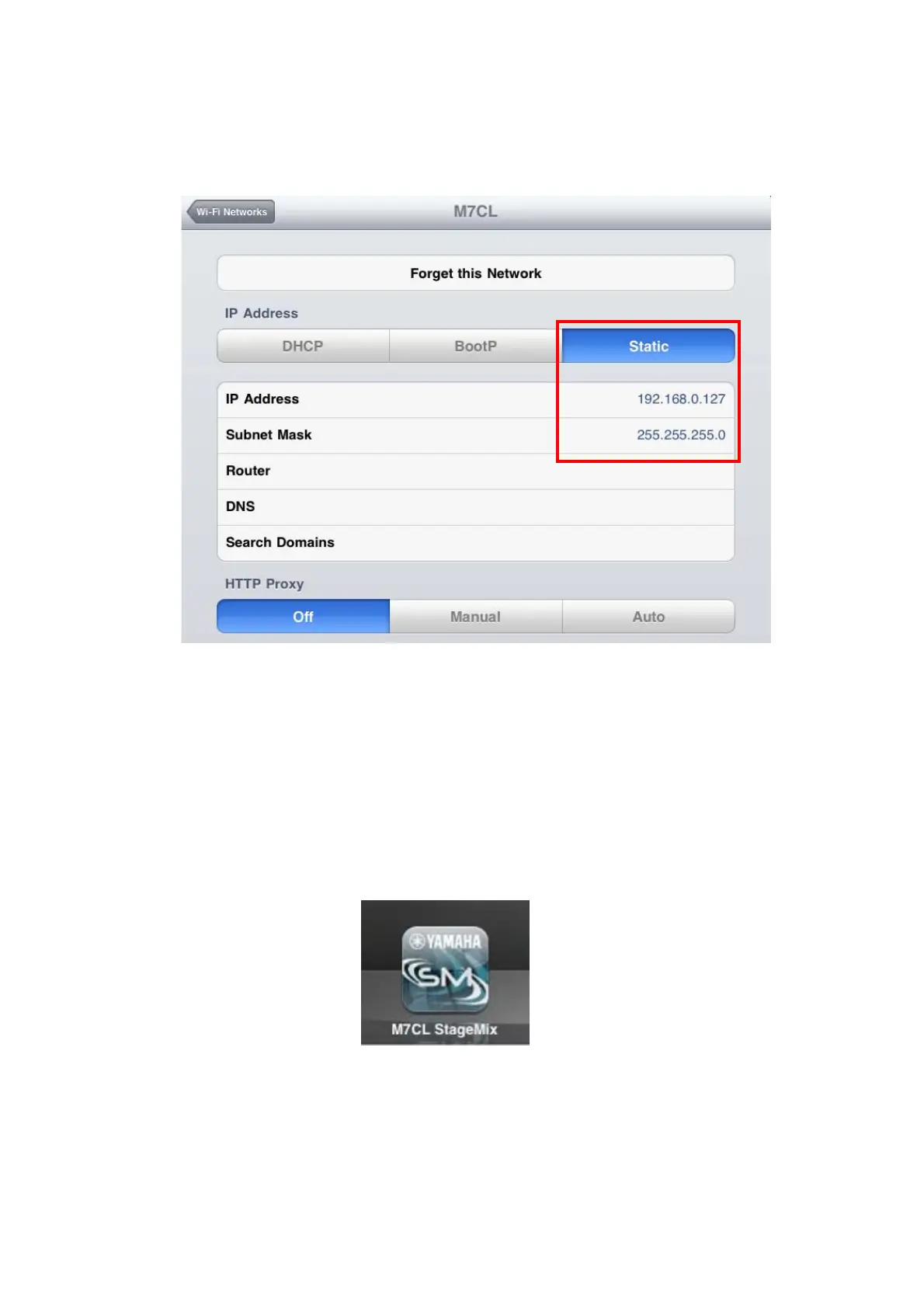

c. Press the blue circle with the white arrow to the right of the selected
network to edit the IP address.
d. Select [Static].
e. Write an IP Address similar to the one for the M7CL, but with just the
last number different. (For example, if M7CL is 192.168.0.128, give an
address to the iPad such as 192.168.0.127).
f. Enter “255.255.255.0” for the Subnet Mask.
g. Press the iPad’s Home button to exit the Settings menu.
3.3 StageMix Setup
Launch the “M7CL StageMix” App
The “Select Mixer” screen will appear. From this screen, you can do any of
the following things:
• Access the OFFLINE DEMO mode to explore the features and user
interface of M7CL StageMix.
• Configure StageMix to work with an M7CL console.
