MODX Supplementary Manual
5

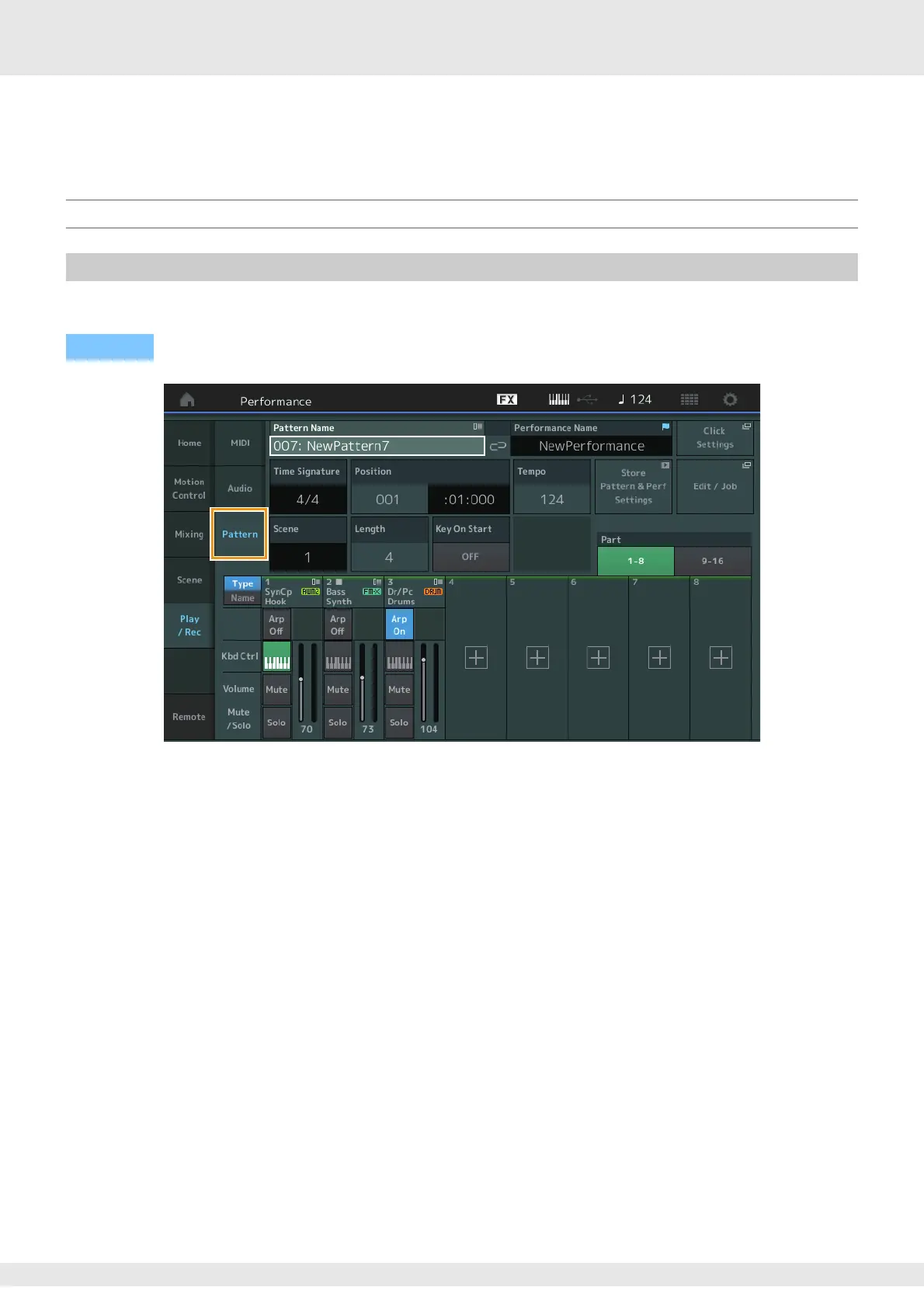

New Pattern Sequencer function
This new function lets you record pattern sequences to each Scene.
 Playback/Waiting for Playback
Pattern Name
Indicates the selected pattern name. Touching the parameter calls up the menu to Load, Rename and create a New Pattern.
Link icon
Indicates that the Pattern data and Performance data contained in the Pattern data match.
When the Pattern data and Performance data contained in the Pattern data do not match, a broken Link icon is shown.
Performance Name
Indicates the selected performance name.
NOTE When you change the parameters in Performance, a blue flag indication appears at the right side of the Performance Name.
Time Signature
Indicates the meter of the Pattern.
Position
Determines the starting position of Recording/Playback. The indicator also shows the current position during playback.
The measure number is in the left cell and the beat number and clock value are in the right cell.
Tempo
Determines the tempo to playback the Pattern.
Range: 5 – 300
Click Settings
Opens the Tempo Settings display.
Scene
Indicates the selected scene number.
Play/Rec
Pattern
Operation
[PERFORMANCE (HOME)]  [Play/Rec]  [Pattern]

Yamaha MODX8 Specifications

General

Type	Synthesizer
Aftertouch	No
Arpeggiator	Yes
Headphones	1 x 1/4"
Storage	USB Flash Drive
Keyboard	88-key
Sound Engine	AWM2, FM-X
Polyphony	AWM2: 128, FM-X: 64
Preset Voices	Over 2000
User Memory	1 GB
Effects	Reverb, Chorus, Part EQ
Display	7-inch TFT Color LCD
Weight	13.8 kg (30.4 lbs)
Presets	2, 370 Voices + 35 Drum Kits
Sequencer	16-track
Audio Inputs	2 x 1/4"
Audio Outputs	2 x 1/4"
USB	1 x USB to host, 1 x USB to device
MIDI I/O	In/Out
Pedal Inputs	2 x 1/4" (sustain, assignable)
