Yamaha MOTIF ES6 Software Manual

26

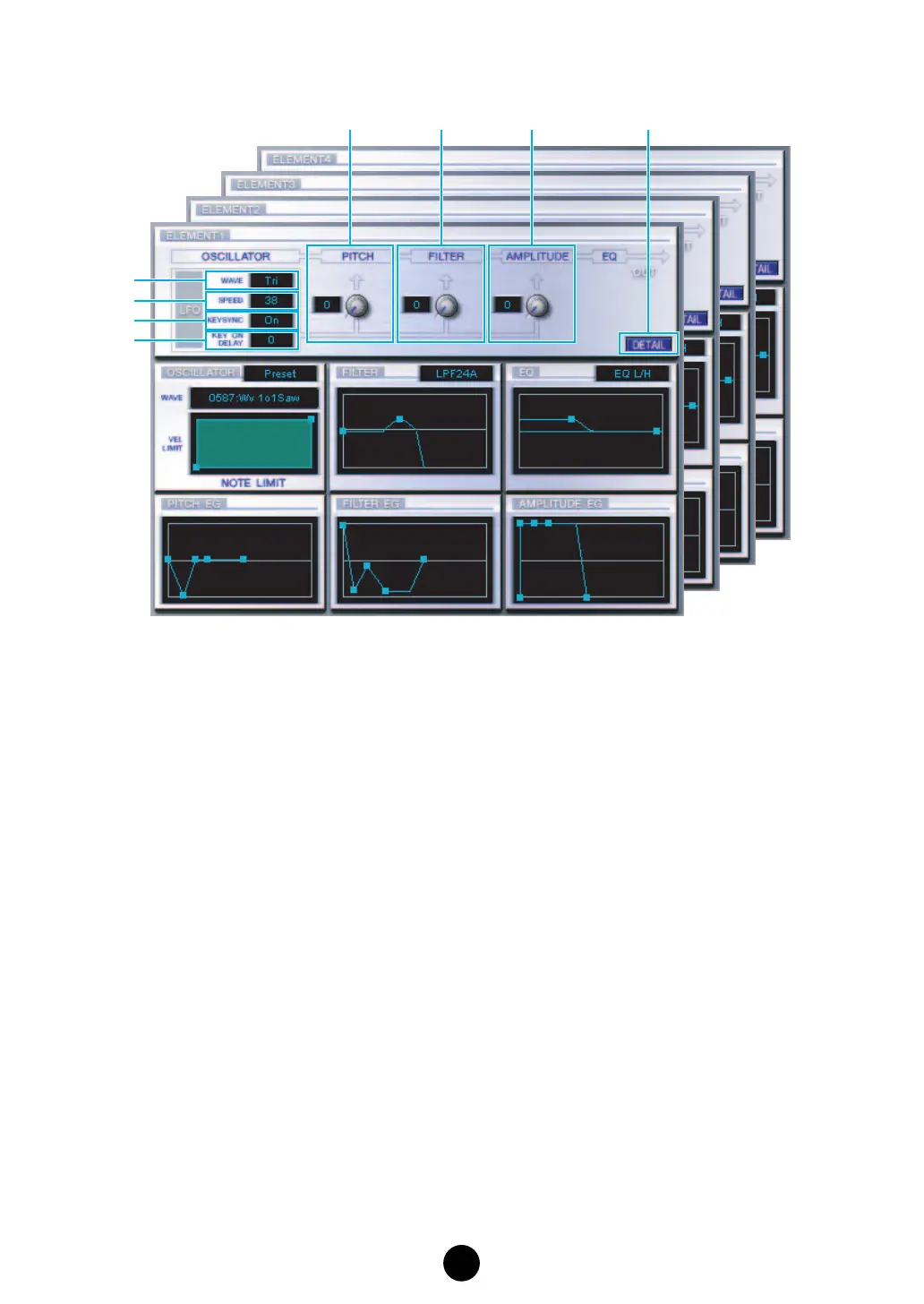

● ELEMENT Dialog
1 LFO WAVE
Click on the “WAVE” text box and select the LFO’s waveform.
2 LFO SPEED
Click on the “SPEED” text box and specify its speed.
3 KEY SYNC
Click on the “KEY SYNC” text box to switch LFO key sync on or off. (If switched on, the LFO
waveform is restarted each time you play a note.)
4 KEY ON DELAY
Determines the time (delay) between the moment a Note On message is received and the
point at which the LFO comes into effect.
5 LFO PITCH knob
Use this to set the pitch modulation depth of the LFO. You can also enter a value directly in the
text box to the left of the knob.
6 LFO FILTER knob
Use this to set the filter modulation depth of the LFO. You can also enter a value directly in the
text box to the left of the knob.
7 LFO AMPLITUDE knob
Use this to set the amplitude modulation depth of the LFO. You can also enter a value directly in
the text box to the left of the knob.
1
2
3
4
567 8

Yamaha MOTIF ES6 Specifications

General

Keyboard	61 keys, Initial Touch/Aftertouch
Polyphony	128 notes
Display	240 x 64 dot backlit LCD
Wave ROM	175MB (when converted to 16-bit linear format)
Sequencer	16 Tracks, Approx. 226, 000 notes
Arpeggiator	1, 787 types
Connectors	MIDI In/Out/Thru, USB, Foot Controller, Foot Switch
Power Supply	AC Adaptor (PA-300 or an equivalent recommended by Yamaha)
Storage	SmartMedia
User Voices	128 normal voices + 32 drum kits
