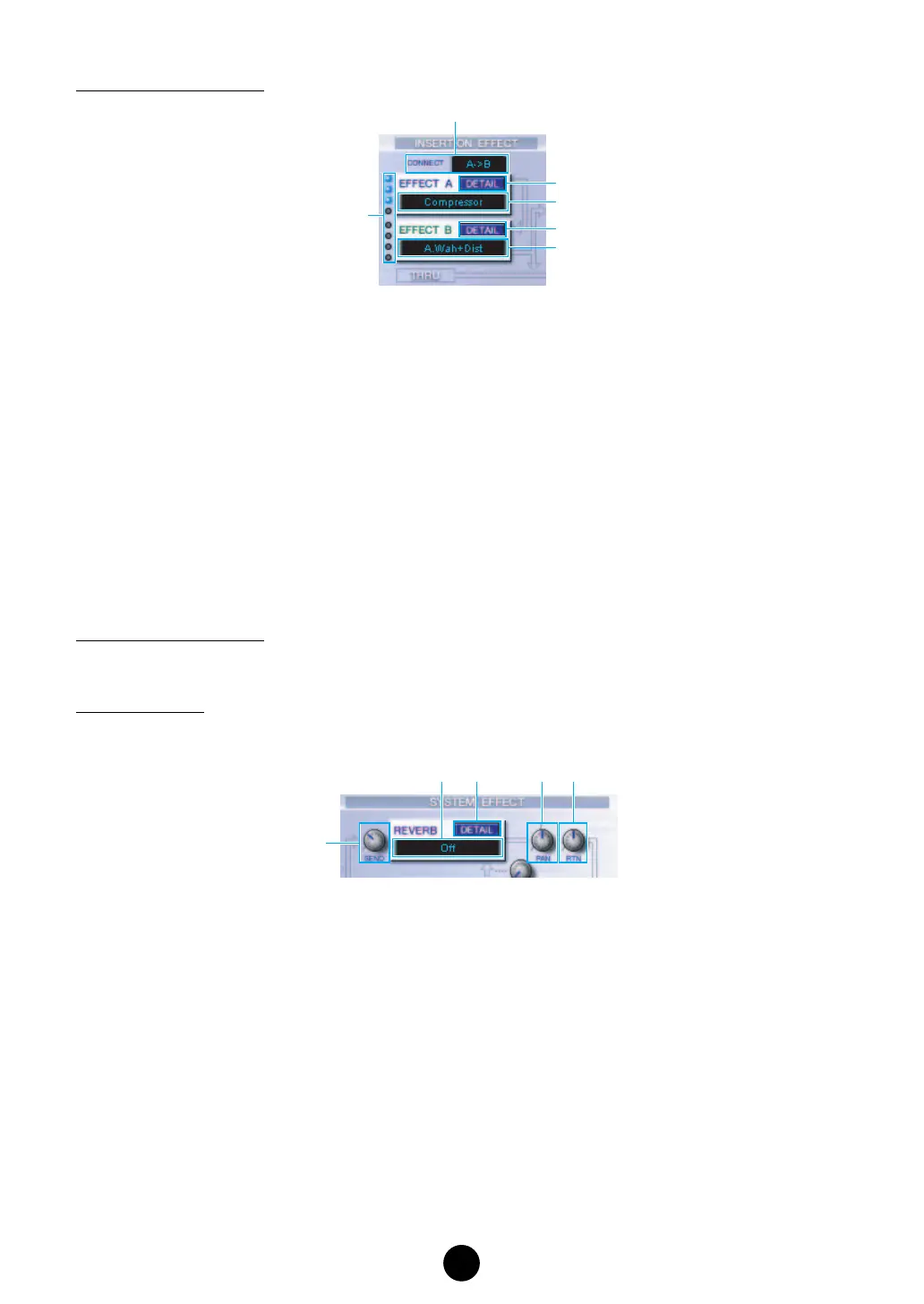

Insertion Effect A Unit
1 CONNECT selector
Click on the text box and choose the order in which signals are passed from one insertion
effect unit to the other.
2 Indicator lamps
These show which of the Elements are assigned to the respective Insertion Effect unit. The
Indicator lamps are not available for Drum Voices.
3 [DETAIL] button
Click this to open the Insertion Effect dialog and set the detailed parameters.
4 Effect Type selector
Click on the text box and choose the type of Insertion Effect.
Inser
tion Effect B Unit
Same as Insertion Effect A Unit. See above.
System Effects
● Reverb Unit
1 Reverb Send
Use this knob to set the level of the signal of Insertion Effect A/B (or the by-passed signal) sent
to the Reverb Effect.
2 Reverb Effect Type selector
Click on the text box and choose the type of Reverb Effect.
3 Reverb Pan controls
Use these knobs to set the stereo positioning of the Reverb Effect.
4 Reverb Return controls
Use these knobs to set the amount of Reverb Effect that is used in the output signal.
1
2
3
4
3
4
1
2345

Yamaha MOTIF ES6 Specifications

General

Keyboard	61 keys, Initial Touch/Aftertouch
Polyphony	128 notes
Display	240 x 64 dot backlit LCD
Wave ROM	175MB (when converted to 16-bit linear format)
Sequencer	16 Tracks, Approx. 226, 000 notes
Arpeggiator	1, 787 types
Connectors	MIDI In/Out/Thru, USB, Foot Controller, Foot Switch
Power Supply	AC Adaptor (PA-300 or an equivalent recommended by Yamaha)
Storage	SmartMedia
User Voices	128 normal voices + 32 drum kits
