5 [DETAIL] button
Click this to open the Reverb dialog and set the detailed parameters.

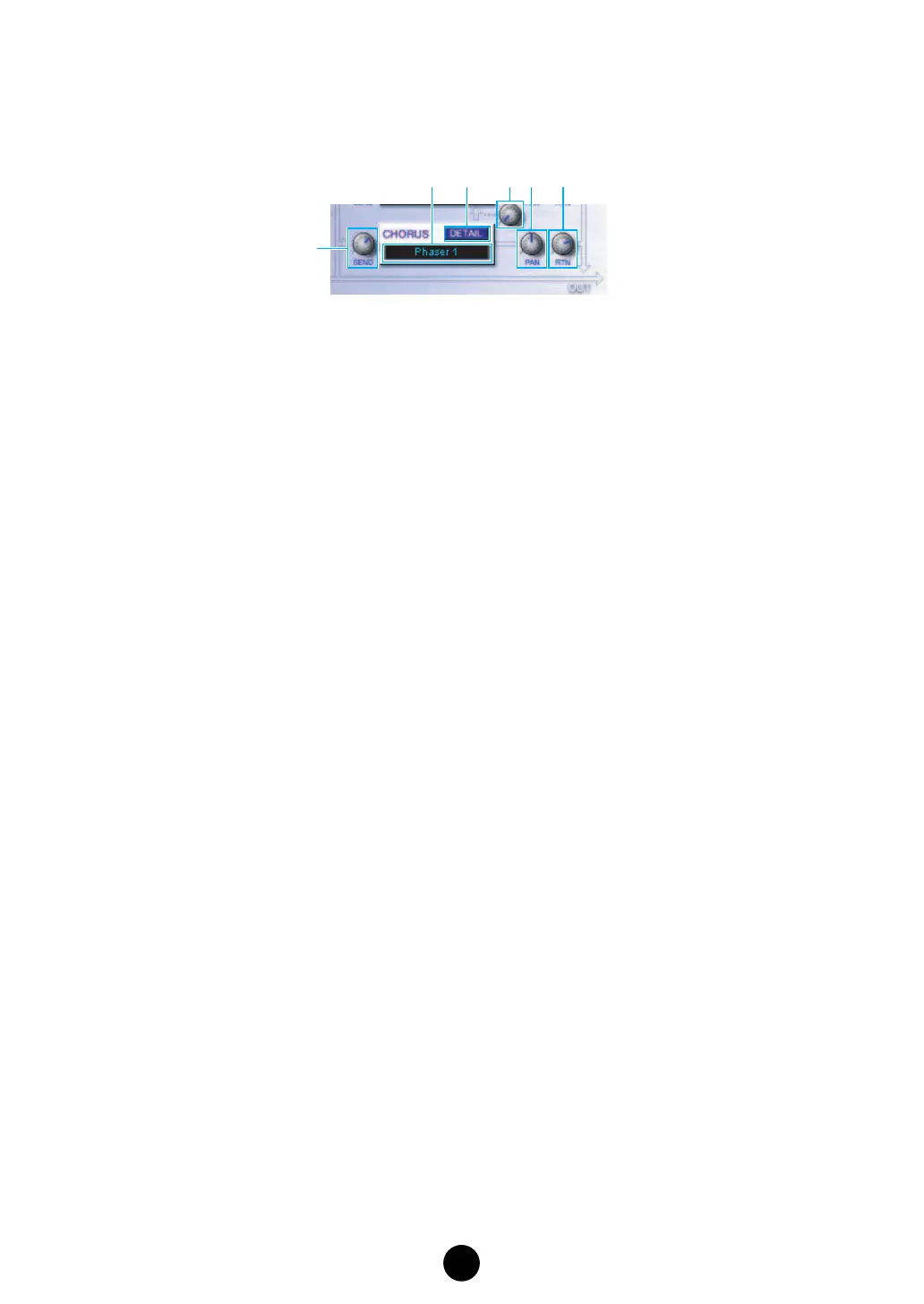

● Chorus Unit
1 Chorus Send
Use this knob to set the level of the signal of Insertion Effect A/B (or the by-passed signal) sent
to the Chorus effect.
2 Chorus Effect Type selector
Click on the text box and choose the type of Chorus Effect.
3 Chorus Pan control
Use this knob to set the stereo positioning of the Chorus Effect.
4 Chorus Return control
Use this knob to set the amount of Chorus Effect that is used in the output signal.
5 [DETAIL] button
Click this to open the Chorus dialog and set the detailed parameters.
6 CHORUS REVERB control
Use this knob to set the level of the signal of sent from the Chorus unit to the Reverb unit.
