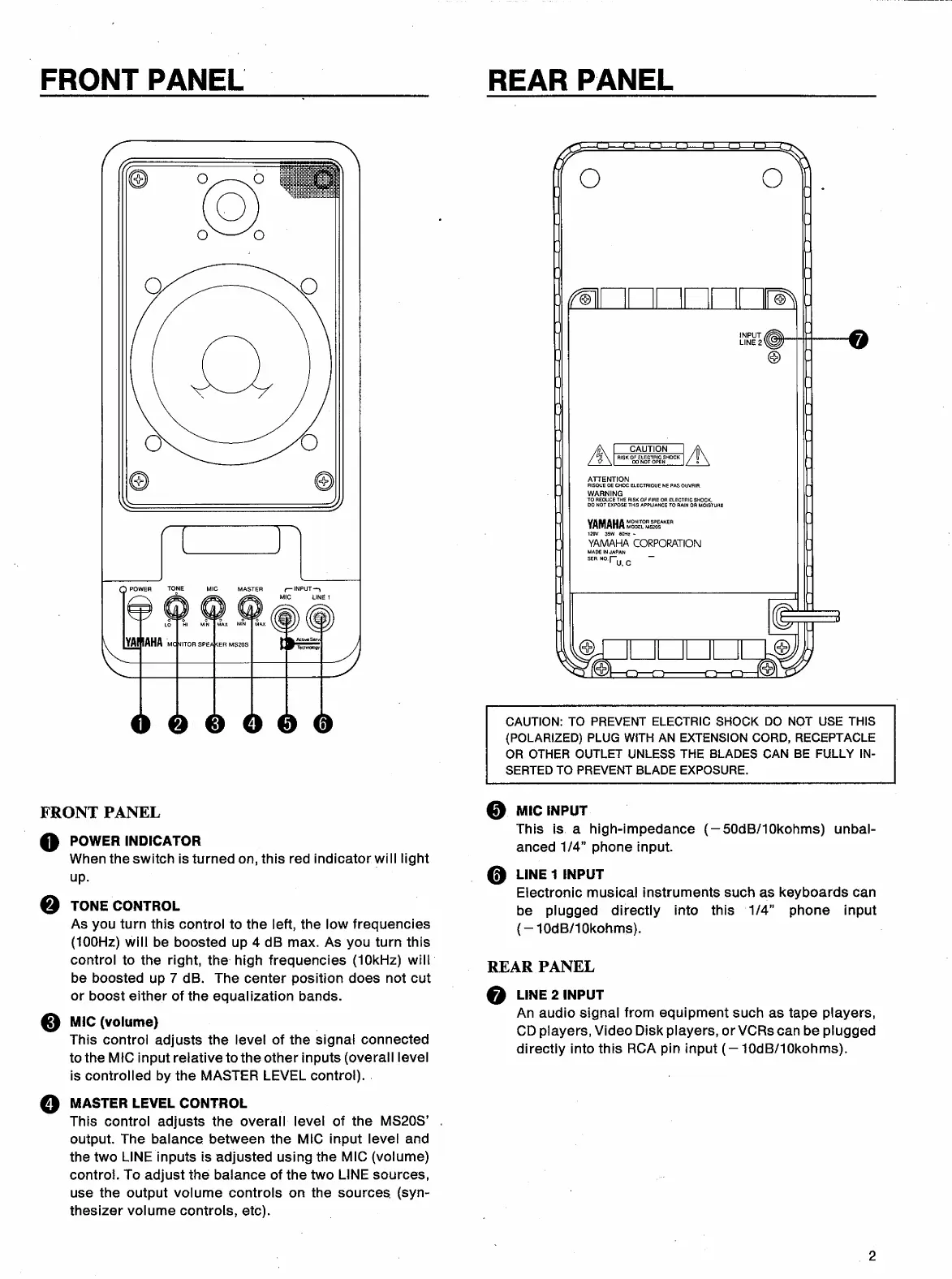

FRONT PANEL
©
FRONT PANEL
@ POWER INDICATOR
When the switch is turned on, this red indicator will light
up.
@ TONE CONTROL
As you turn this control to the left, the low frequencies
(100Hz) will be boosted up 4 dB max. As you turn this
control to the right, the high frequencies (10KHz) will
be boosted up 7 dB. The center position does not cut
or boost either of the equalization bands.
@ МІС (volume) |
This control adjusts the level of the signal connected
to the MIC input relative to the other inputs (overall level
is controlled by the MASTER LEVEL control). .
o MASTER LEVEL CONTROL
This control adjusts the overall level of the MS20S' .
output. The balance between the MIC input level and
the two LINE inputs is adjusted using the MIC (volume)
controi. To adjust the balance of the two LINE sources,
use the output volume controls on the sources (syn-
thesizer volume controls, etc).
REAR PANEL
CAUTION
RISK QF ELECTRIC SHOCK
/ ) \ А
АТТЕМПОМ
RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR.
WARNING
TO REOUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE
YAMAHA 87:25"
120V 35W вон: ~
YAMAHA CORPORATION
Gen
CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS
(POLARIZED) PLUG WITH AN EXTENSION CORD, RECEPTACLE
OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY IN-
SERTED TO PREVENT BLADE EXPOSURE.
Ө mic input
This is. a high-impedance (—50dB/10kohms) unbal-
anced 1/4” phone input.
@ LINE 1 INPUT
Electronic musical instruments such as keyboards can
be plugged directly into this 1/4” phone input
(
—
10dB/10kohms).
|
REAR PANEL
@ LINE 2 INPUT
An audio signal from equipment such as tape players,
CD players, Video Disk players, or VCRs can be plugged
directiy into this RCA pin input ( — 10dB/10kohms).
