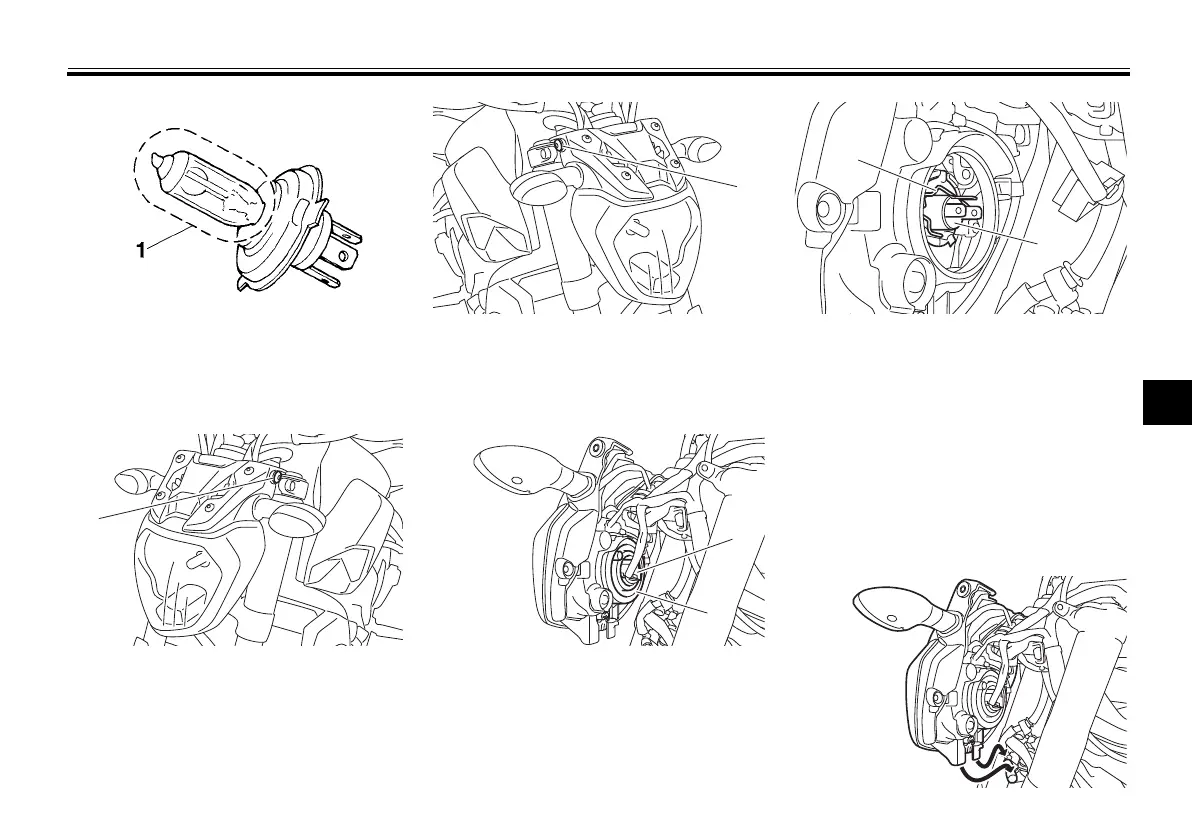

1. Remove the headlight unit by re-
moving the bolt and washer on
each side.
2. Disconnect the headlight coupler,
and then remove the headlight
bulb cover.
3. Unhook the headlight bulb holder,
then remove the burnt-out bulb.
4. Place a new headlight bulb into
position, then secure it with the
bulb holder.
5. Install the headlight bulb cover,
then connect the coupler.
6. Install the headlight unit as shown,
and then install the washer and
bolt on each side.
1. Do not touch the glass part of the bulb.
1. Bolt and washer
1. Bolt and washer
1. Headlight coupler
2. Headlight bulb cover
1. Headlight bulb holder
2. Headlight bulb
