Yamaha MT-07 2021 - Handlebar Controls and Instruments Overview

Description
3-3
3
EAU10431

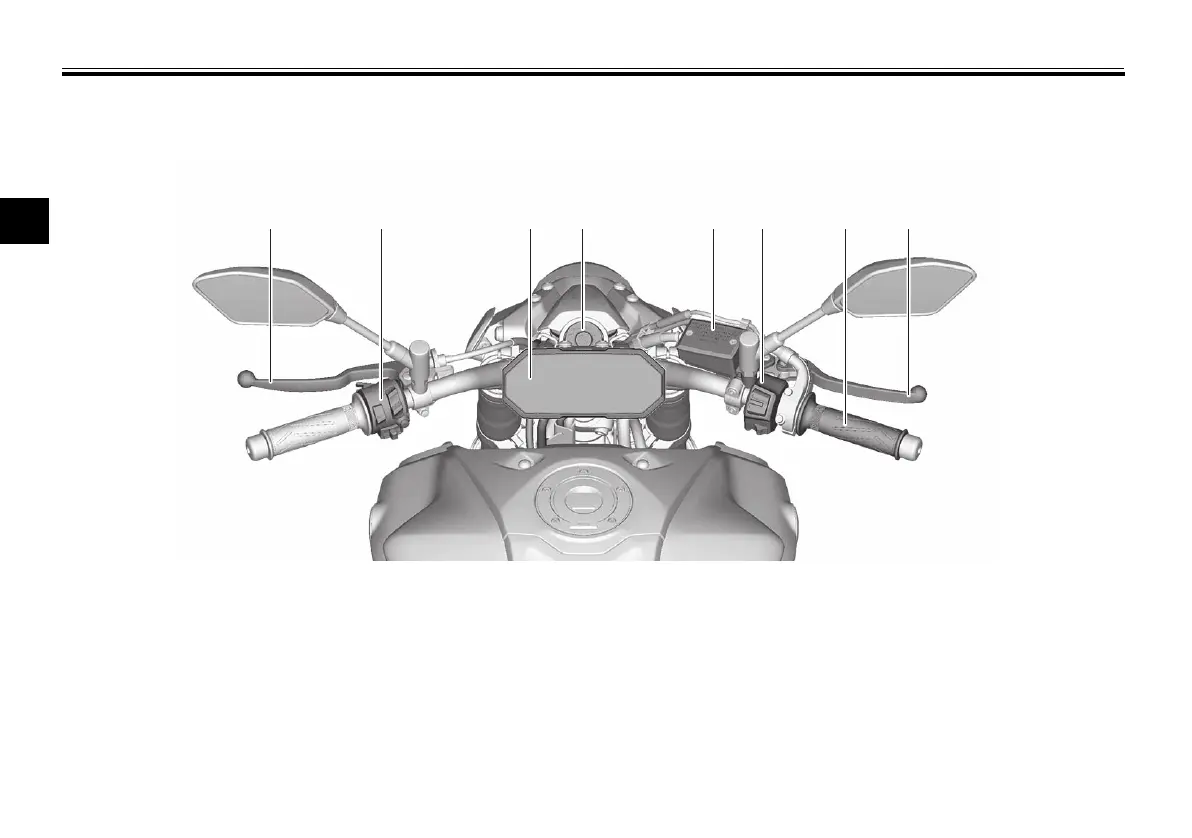

Controls and instruments
12 3 45678
1. Clutch lever (page 4-11)
2. Left handlebar switches (page 4-9)
3. Multi-function meter unit (page 4-4)
4. Main switch/steering lock (page 4-1)
5. Front brake fluid reservoir (page 7-22)
6. Right handlebar switches (page 4-9)
7. Throttle grip (page 7-17)
8. Brake lever (page 4-12)
