DESCRIPTION
2-2
2
EAU10421

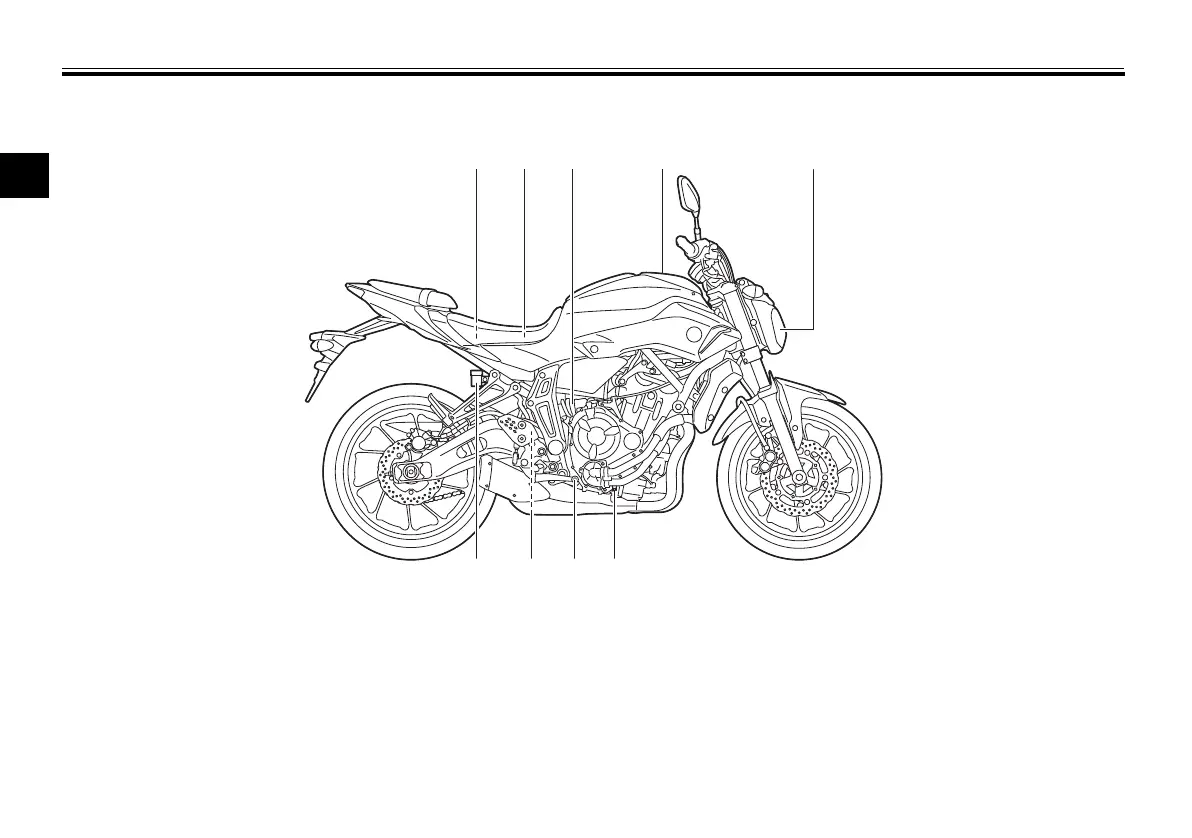

Right view
78910
1,2 3 4 65
1. Main fuse (page 6-31)
2. Fuse box (page 6-31)
3. Battery (page 6-29)
4. Shock absorber assembly spring preload adjusting ring (page 3-23)
5. Fuel tank cap (page 3-16)
6. Headlight (page 6-32)
7. Coolant drain bolt (page 6-12)
8. Brake pedal (page 3-15)
9. Rear brake light switch (page 6-19)
10.Rear brake fluid reservoir (page 6-21)
