Yamaha MT-09 2023 User Manual

Periodic maintenance and adjustment
8-19
8
braking performance, which may re-
sult in loss of control and an acci-
dent.
EAU36505
Brake light switches
The brake light should come on just
before braking takes effect. The brake
light is activated by switches connect-
ed to the brake lever and brake pedal.
Since the brake light switches are
components of the anti-lock brake sys-
tem, they should only be serviced by a
Yamaha dealer.
EAU22393
Checking the front and rear
brake pads
The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU36891
Front brake pads
Each front brake pad is provided with
wear indicators, which allows you to
check the brake pad wear without hav-
ing to disassemble the brake. To check
the brake pad wear, check the position
of the wear indicators while applying
the brake. If a brake pad has worn to
the point that a wear indicator almost

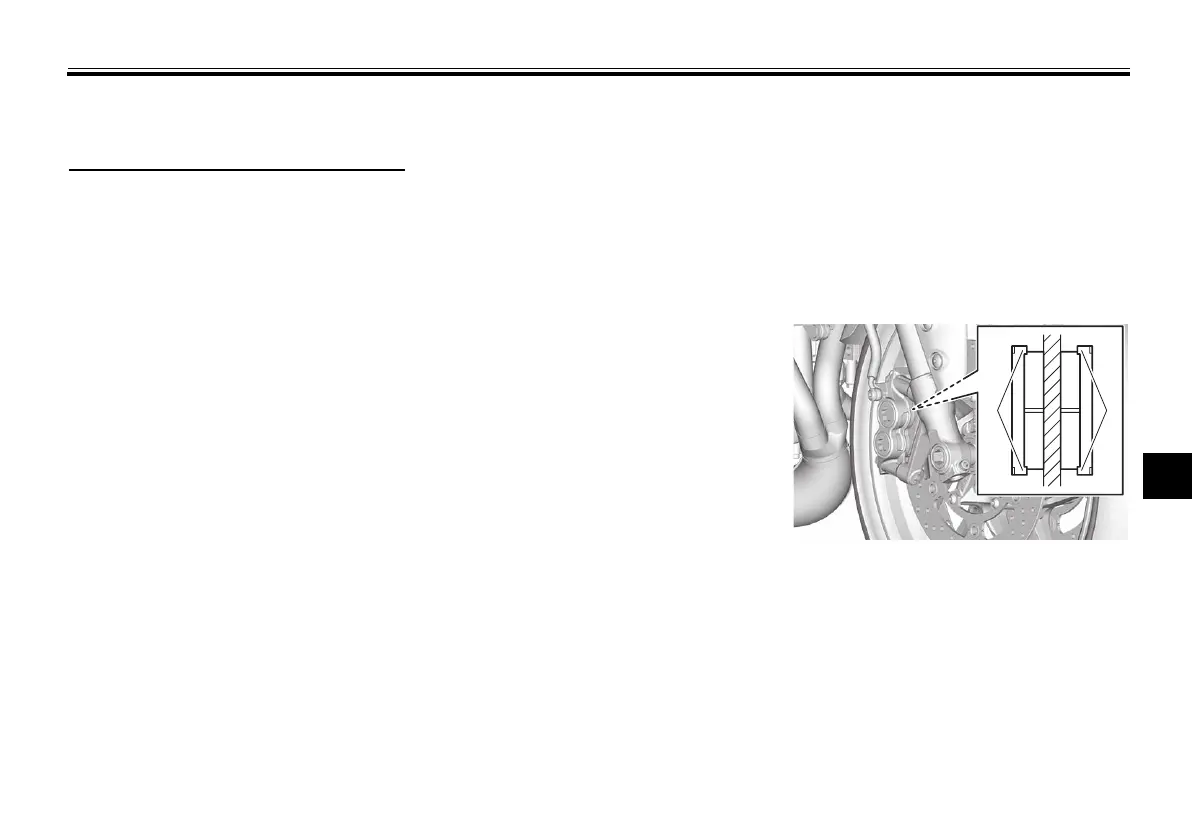

1. Brake pad wear indicator
11
UB7N12E0.book Page 19 Tuesday, August 23, 2022 10:08 AM

Yamaha MT-09 2023 Specifications

General

Displacement	889cc
Bore x Stroke	78.0 mm x 62.1 mm
Compression Ratio	11.5:1
Fuel System	Fuel Injection
Transmission	6-speed
Final Drive	Chain
Frame	Diamond
Rear Brake	Hydraulic single disc, Ø245 mm
Front Tire	120/70ZR17 M/C (58W)
Rear Tire	180/55ZR17 M/C (73W)
Overall Length	2, 090 mm
Overall Height	1, 190 mm
Seat Height	825 mm
Wheelbase	1, 430 mm
Ground Clearance	140 mm
Fuel Capacity	14 L
Wet Weight	189 kg
Lubrication System	Wet sump
Ignition System	TCI
Starter System	Electric
Fuel Consumption	5.0 L/100 km
Oil Tank Capacity	3.5 L
Caster Angle	25°
Front Travel	130 mm
Rear Travel	122 mm
Engine Type	Liquid-cooled, 4-stroke, DOHC, 3-cylinder
Maximum Power	87.5 kW (119.0 PS) @ 10, 000 rpm
Maximum Torque	93 Nm (9.5 kg-m) @ 7, 000 rpm
Front Suspension	41mm KYB inverted fork
Front Brake	Dual hydraulic disc, Ø298 mm
Clutch Type	Wet, multiple-disc
Overall Width	31.9 in (810 mm)
