Clutch lever
To disengage the drivetrain from the
engine, such as when shifting gears,
pull the clutch lever toward to the han-
dlebar. Release the lever to engage the
clutch and transmit power to the rear
wheel.
TIP
The lever should be pulled rapidly and
released slowly for smooth shifting.
(See page 8-3.)
Adjusting the clutch lever
To adjust the distance between the
clutch lever and the handlebar, gently
push the lever away from the handle-
bar and rotate the clutch lever position
adjusting knob.
Turn the adjusting knob in direction (a)
to increase the distance. Turn the ad-
justing knob in direction (b) to decrease
the distance.
EAU83692
Shift pedal
The shift pedal is located on the left
side of the motorcycle. To shift the
transmission to a higher gear, move
the shift pedal up. To shift the trans-
mission to a lower gear, move the shift
pedal down. (See page 8-3.)
The shift rod is equipped with a shift
sensor, which is part of the quick shift-
er. The shift sensor reads up and down
movement, as well as the strength of
the input force when the shift pedal is
moved.

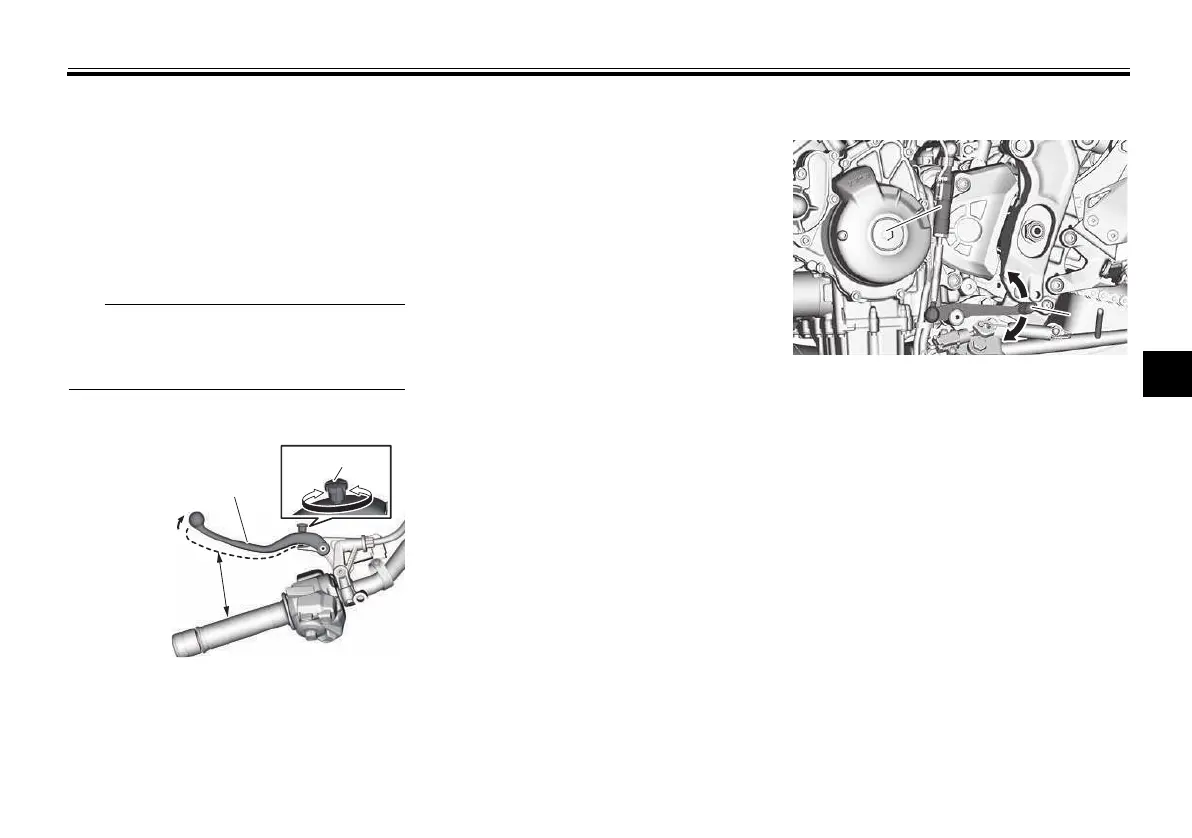

1. Clutch lever
2. Distance
3. Clutch lever position adjusting knob
(a)
3
(
)
(b)(b)
(a)
(b)
3
2
11
1. Shift pedal
2. Shift rod
111
22
