3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU72980

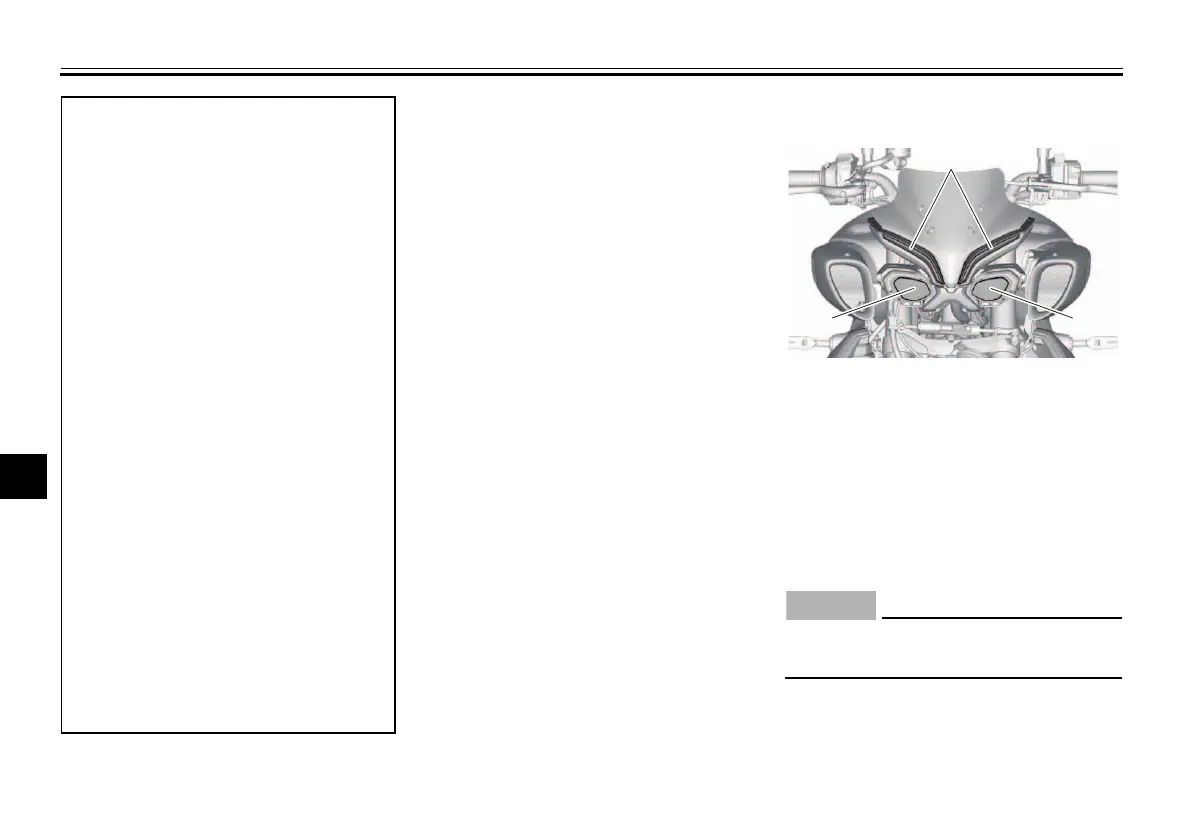

Vehicle lights
This model is equipped with full-LED
lighting. There are no user replaceable
bulbs.
If a light does not come on, check the
fuses and then have a Yamaha dealer
check the vehicle.
ECA16581
Do not affix any type of tinted film or
stickers to the headlight lens.
Specified fuses:
Main fuse:
50.0 A
Terminal fuse 1:
2.0 A
Headlight fuse:
10.0 A
Signaling system fuse:
7.5 A
Ignition fuse:
15.0 A
Radiator fan motor fuse:
15.0 A
Sub radiator fan motor fuse:
10.0 A
ABS motor fuse:
30.0 A
ABS ECU fuse:
7.5 A
ABS solenoid fuse:
15.0 A
Fuel injection system fuse:
15.0 A
Backup fuse:
10.0 A
Electronic throttle valve fuse:
7.5 A
Brake light fuse:
1.0 A
Cruise control fuse:
1.0 A
1. Headlight
2. Auxiliary light
