Instrument and control functions
5-37
1
2
3
4
5
6
7
8
9
10
11
12
13
EAU84680

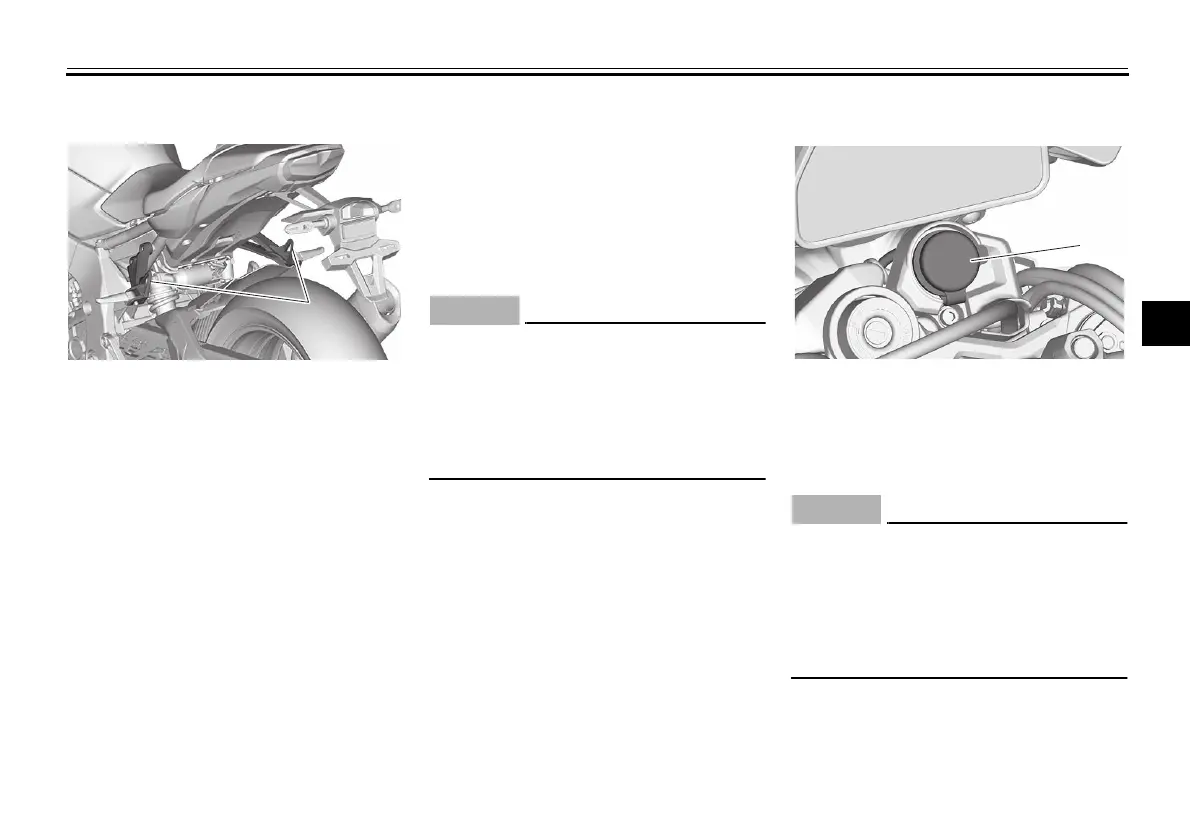

Luggage strap holders
Use the indicated strap points to secure
luggage ties to the vehicle.
EAU67050
EXUP system
This model is equipped with Yamaha’s
EXUP (EXhaust Ultimate Power valve)
system. This system boosts engine
power by means of a valve that controls
exhaust flow within the exhaust cham-
ber.
ECA15611
The EXUP system has been set and
extensively tested at the Yamaha
factory. Changing these settings
without sufficient technical knowl-
edge may result in poor perfor-
mance of or damage to the engine.
EAU49454
Auxiliary DC jack
A 12-V accessory connected to the
auxiliary DC jack can be used when the
main switch is on.
ECA15432
The accessory connected to the
auxiliary DC jack should not be used
with the engine turned off, and the
load must never exceed 12 W (1.0 A),
otherwise the fuse may blow or the
battery may discharge.
To use the auxiliary DC jack
1. Turn the main switch off.
2. Remove the auxiliary DC jack cap.
1. Luggage strap holder
1. Auxiliary DC jack cap
B5Y-9-10-E0.book 37 ページ ２０２１年１２月１５日 水曜日 午後１時３０分
