Instrument and control functions
5-36
1
2
3
4
5
6
7
8
9
10
11
12
13
When turning the damping force adjust-
er in direction (b), it may turn beyond
the stated specifications, however such
adjustments are ineffective and may
damage the suspension.
Slow compression damping force
Turn the adjusting screw in direction (a)
to increase the compression damping
force.
Turn the adjusting screw in direction (b)
to decrease the compression damping
force.
To set the compression damping force,
turn the adjuster in direction (a) until it
stops, and then count the clicks in di-
rection (b).
When turning the damping force
adjuster in direction (a), the 0 click
position and the 1 click position
may be the same.
When turning the damping force
adjuster in direction (b), it may click
beyond the stated specifications,
however such adjustments are in-
effective and may damage the
suspension.
EWA10222
This shock absorber assembly con-
tains highly pressurized nitrogen
gas. Read and understand the fol-
lowing information before handling
the shock absorber assembly.
Do not tamper with or attempt to
open the cylinder assembly.
Do not subject the shock ab-
sorber assembly to an open
flame or other high heat source.
This may cause the unit to ex-
plode due to excessive gas
pressure.
Do not deform or damage the
cylinder in any way. Cylinder
damage will result in poor
damping performance.
Do not dispose of a damaged or
worn-out shock absorber as-
sembly yourself. Take the shock
absorber assembly to a Yamaha
dealer for any service.
Fast compression damping setting
Minimum (soft):
5.5 turn(s) in direction (b)
Standard:
3 turn(s) in direction (b)
Maximum (hard):
0 turn(s) in direction (b)

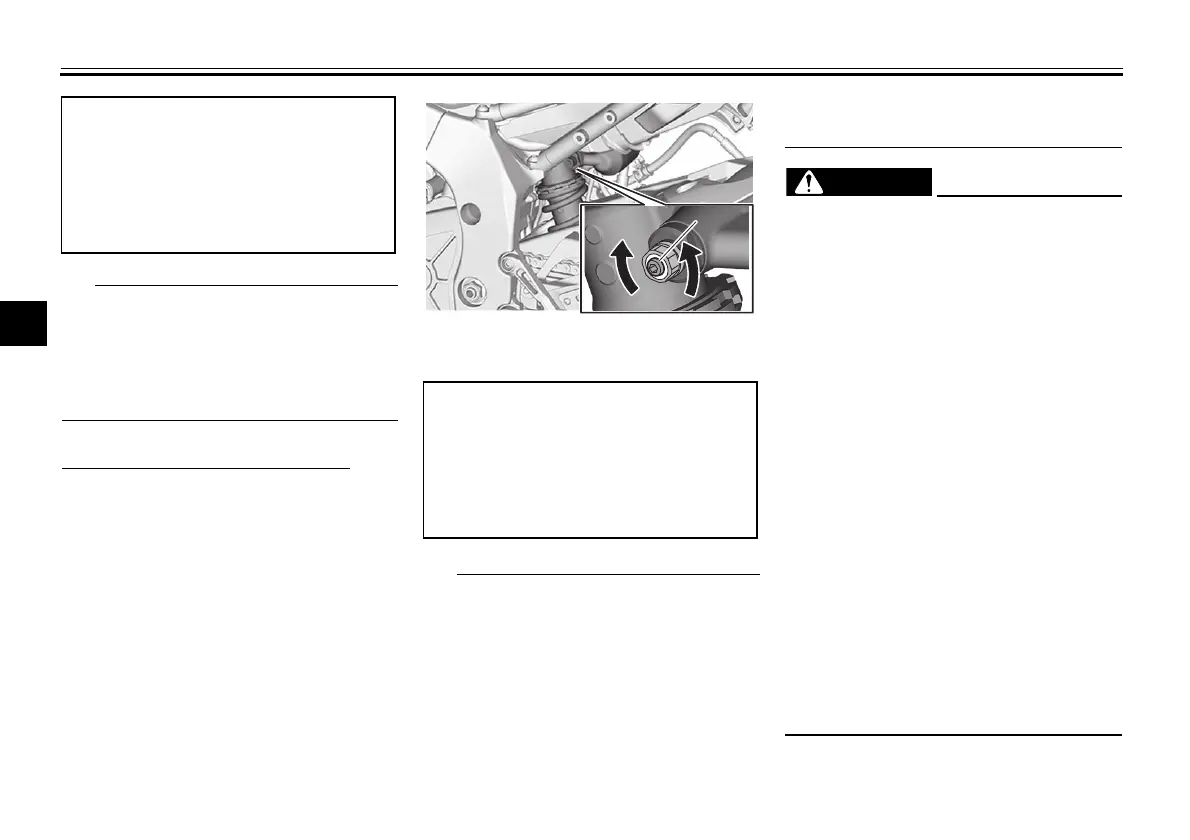

1. Slow compression damping force
adjusting screw
Slow compression damping setting
Minimum (soft):
18 click(s) in direction (b)
Standard:
12 click(s) in direction (b)
Maximum (hard):
1 click(s) in direction (b)
(a
(a)
(b
(b)
1
