Yamaha MT-25 - Page 75

7-31
Periodic maintenance and adjustment
7
If a fuse is blown, replace it as follows.
1.
Turn the key to“OFF” and turn
o
ff the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specied
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a re.
[EWA15132]
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, ha
ve a Yamaha dealer
check the electrical system.

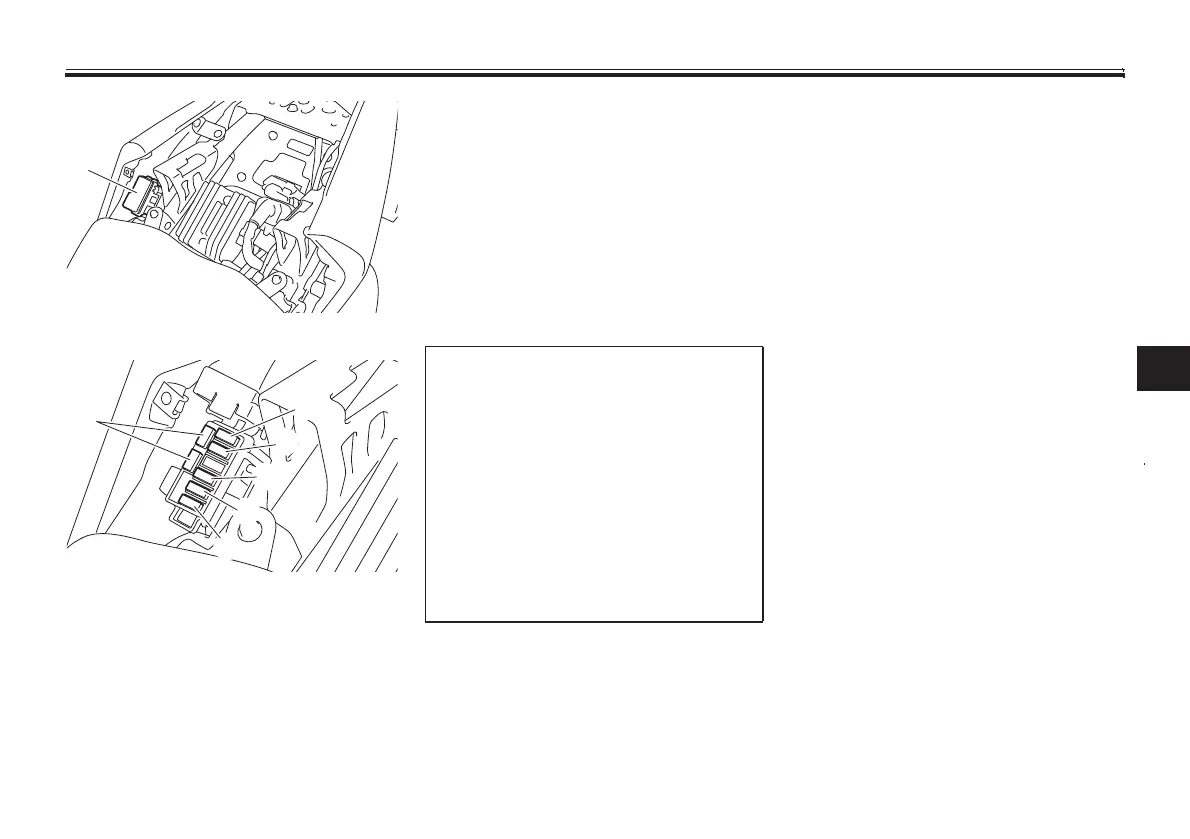

1. Fuse box
1. Ignition fuse
2. Signaling system fuse
3. Headlight fuse
4. Backup fuse (for clock)
5. Radiator fan motor fuse
6. Spare fuse
1
6
1
2
3
4
5
Specied fuses:
Main fuse:
30.0 A
Headlight fuse:
7.5 A
Signaling system fuse:
15.0 A
Ignition fuse:
15.0 A
Radiator fan motor fuse:
7.5 A
Backup fuse:
7.5 A
