Yamaha MT125A - Removing and Installing Cowlings

PERIODIC MAINTENANCE AND ADJUSTMENT
6-8
6
EAU18782
Removing and installing cowl-
ings
The cowlings shown need to be re-
moved to perform some of the mainte-
nance jobs described in this chapter.
Refer to this section each time a cowl-
ing needs to be removed and installed.
EAUM3480

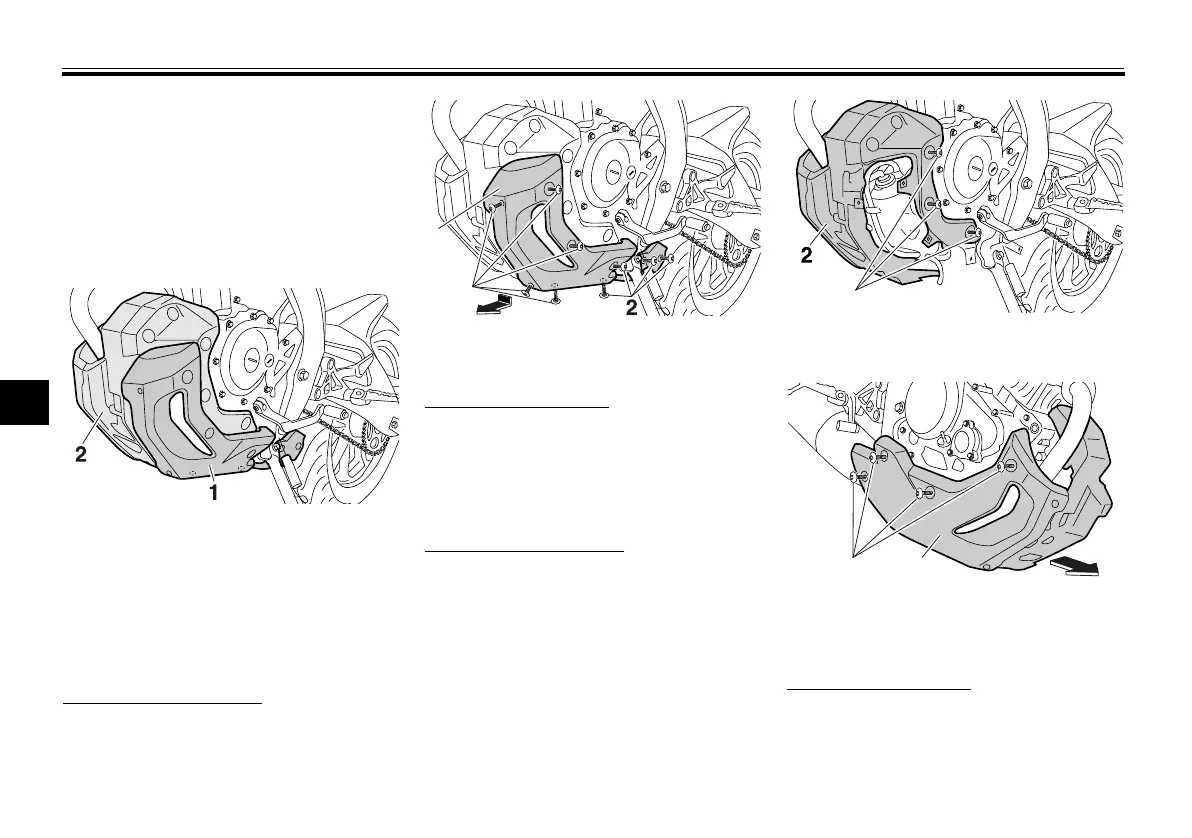

Cowling A
To remove the cowling
Remove the screws, and then take the
cowling off.
To install the cowling
Place the cowling in the original posi-
tion, and then install the screws.
Cowling B
To remove the cowling
1. Remove cowling A. (See page
6-8.)
2. Remove the screws shown, and
then take the cowling off.
To install the cowling
1. Place the cowling in the original
position, and then install the
screws.
2. Install cowling A.
1. Cowling A
2. Cowling B
ZAUM1204
1. Cowling A
2. Screw
ZAUM1205
2
1
1. Screw
2. Cowling B
1. Screw
2. Cowling B
ZAUM1219
FULL
LOW
1
ZAUM1206
YAMAH
A
12
