PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
6
TIP
Fuse tongs are included in the owner’s
tool kit. Use the tongs to remove and
install a fuse.
MT125
MT125A
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.

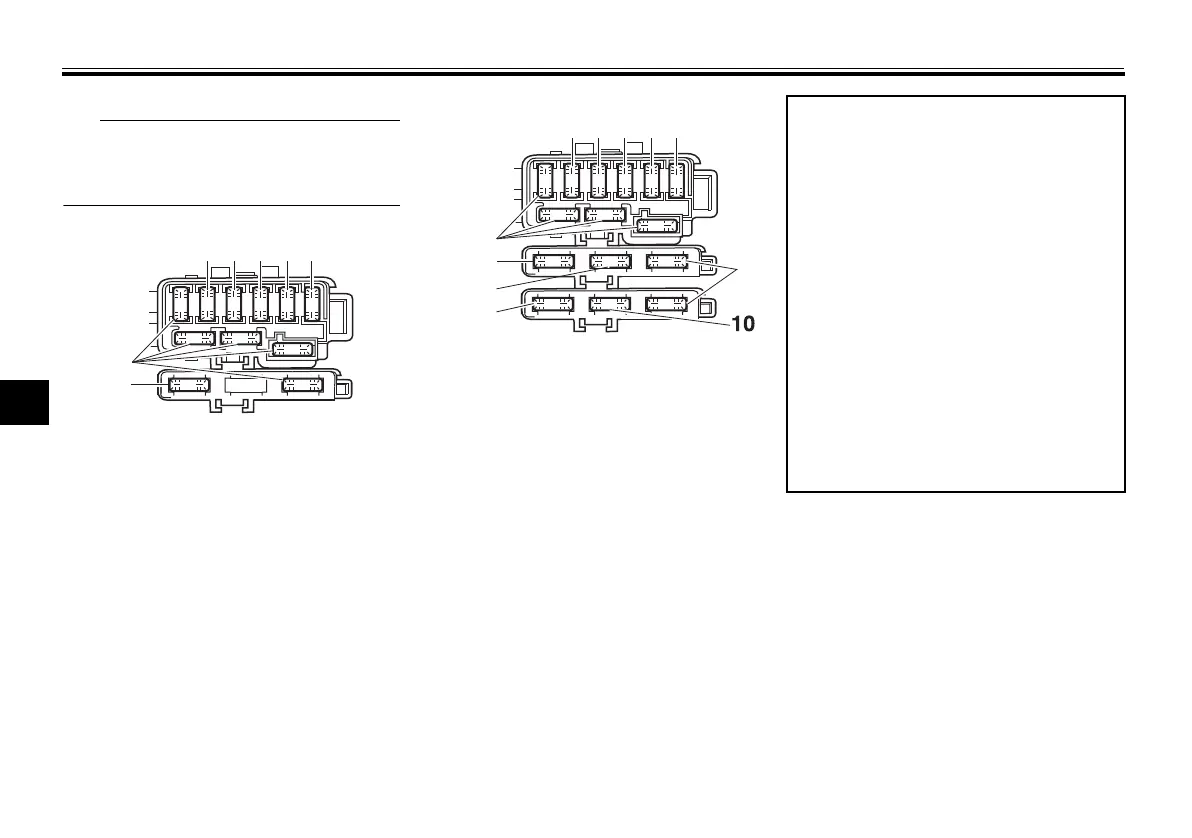

1. Headlight fuse
2. Signaling system fuse
3. Ignition fuse
4. Radiator fan motor fuse
5. Main fuse
6. Backup fuse
7. Spare fuse
ZAUM1189
1010
15
7.5
5
20
7.5
7.5
15
20
5
7
1
2
3
4
5
6
1. Headlight fuse
2. Signaling system fuse
3. Ignition fuse
4. Radiator fan motor fuse
5. Main fuse
6. ABS control unit fuse
7. Spare fuse
8. Backup fuse
9. ABS solenoid fuse
10.ABS motor fuse
ZAUM1231
10
30 3020
7
8
9
1010
15
7.5
20
7.5
7.5
15
5
20
5
7
1
2
3
4
5
6
Specified fuses:
Main fuse:
20.0 A
Ignition fuse:
7.5 A
Signaling system fuse:
7.5 A
Headlight fuse:
15.0 A
Radiator fan motor fuse:
5.0 A
ABS control unit fuse:
MT125A 10.0 A
ABS motor fuse:
MT125A 30.0 A
ABS solenoid fuse:
MT125A 20.0 A
Backup fuse:
10.0 A
