Yamaha MT400 - Page 14

14
from REC 1/2-CN503
PUNCH I/O PHONES
to REC 2/2-CN508
from SUB 1/3-CN104
from SUB 3/3-CN109from SUB 1/3-CN103to SUB 2/3-CN108
from MIX 1/3-CN105
MT400

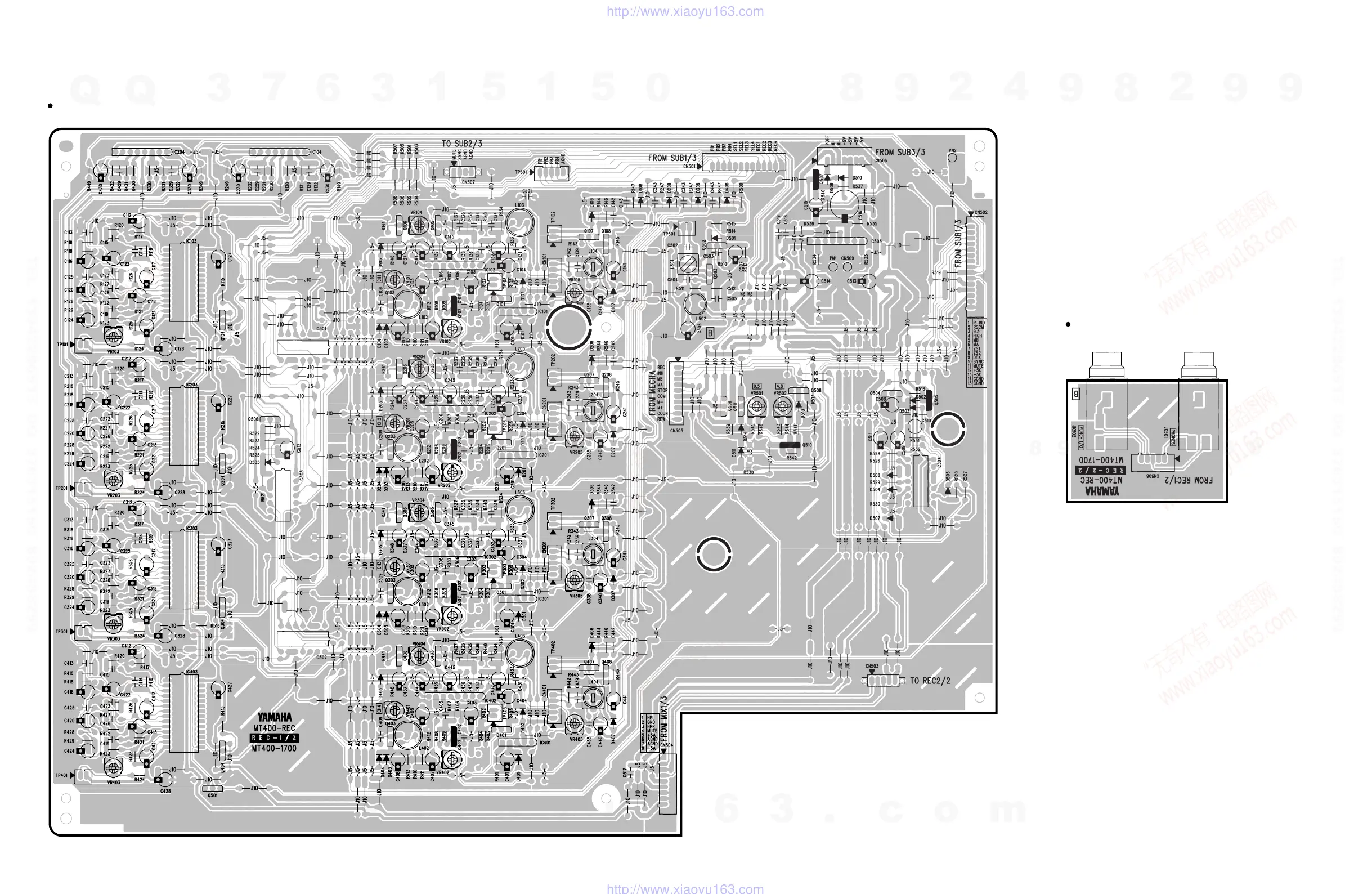

REC-1/2 Circuit Board
Component side
REC-2/2 Circuit Board
Component side
REC : MT400-3500
