Yamaha MX300 - Controls and Features; Component Description and Views

9
Controls and features
Description

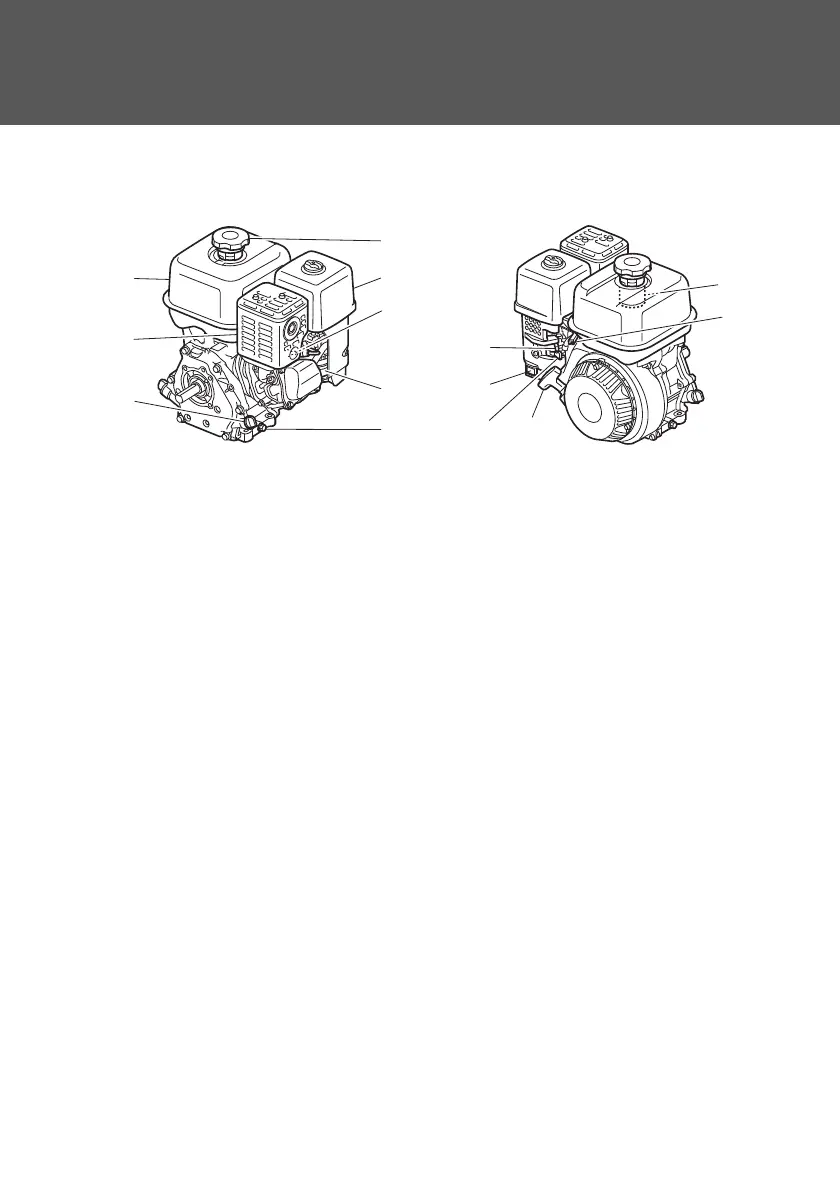

General view (MX175/MX200)
1 Fuel tank cap 8 Fuel tank
2 Air filter case cover 9 Throttle lever
3 Spark plug 10 Recoil starter handle
4 Carburetor 11 Fuel cock lever
5 Oil drain bolt 12 Engine switch
6 Oil filler cap 13 Choke lever
7 Muffler 14 Fuel tank filter
8
7
6
5
4
3
2
1
14
13
12
11
9
10
