NOTE:
_
The wheels need to be removed to inspect the
brake pads. (See pages 8-37–8-38 for wheel
removal and installation procedures.)
_
EBU13990
Rear brake pad inspection
Each brake pad is provided with a wear indi-
cator groove. The indicator grooves allow
checking of brake pad wear without disas-
sembling the brake. Apply the brake and in-
spect the wear indicator grooves. If a brake
pad is worn to the point that the wear indicator
groove is almost in contact with the disc plate,
ask a Yamaha dealer to replace the brake
pads as a set.

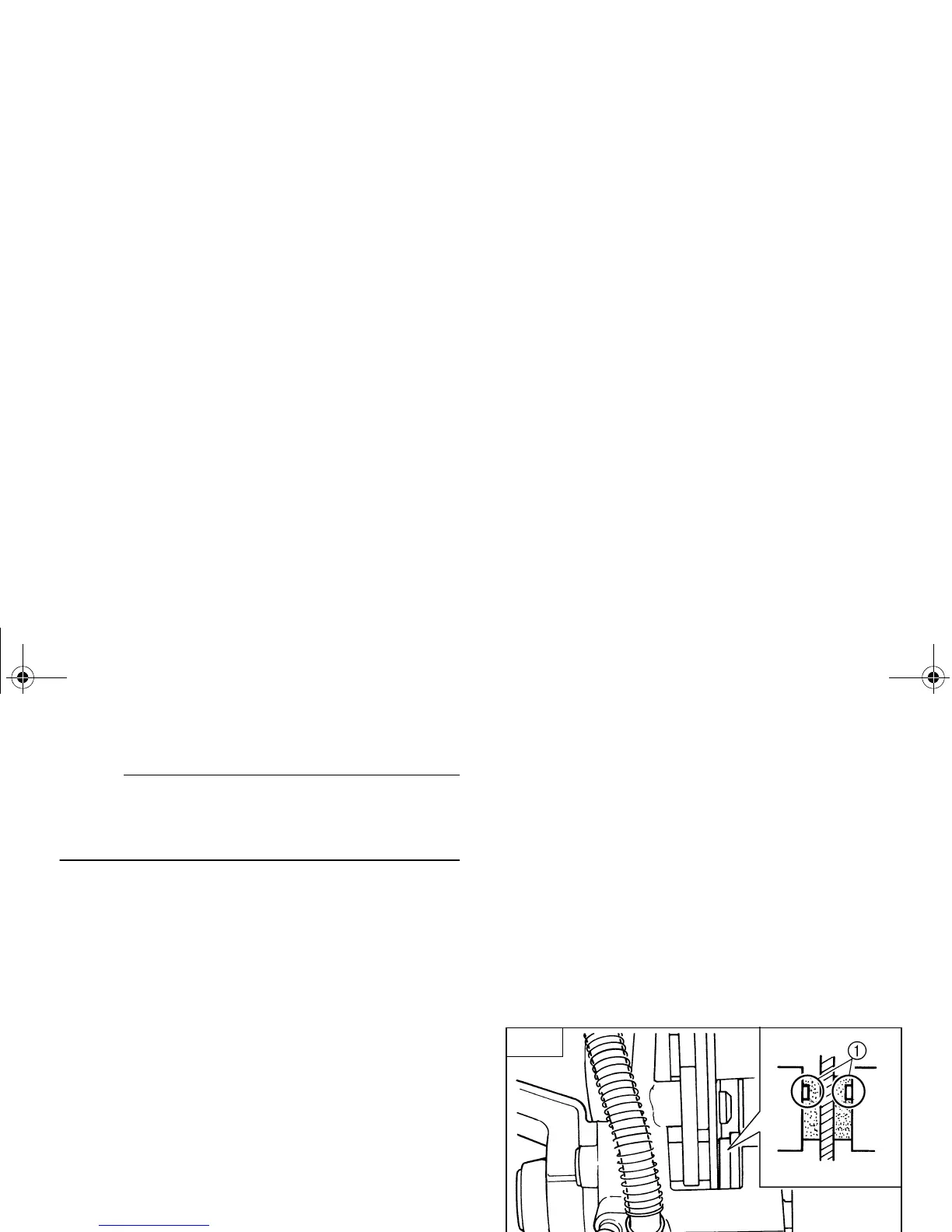

1. Wear indicator groove
Rear
