RGX A2
5

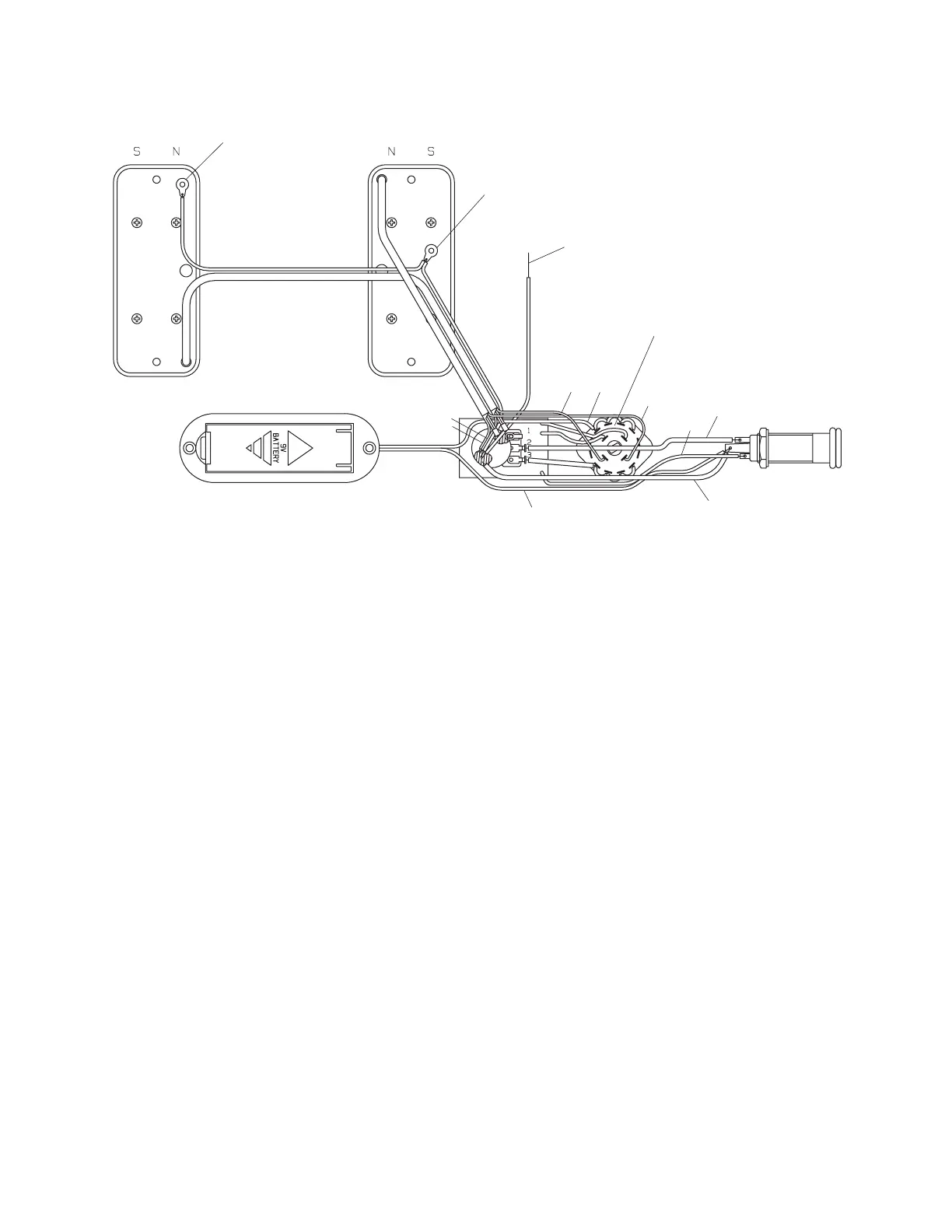

■ WIRING
■ SPECIFICATIONS
● STANDARD SPECIFICATIONS
Scale Length..................................... 648 mm
Body-Neck Construction.................. Bolt On
Length............................................... 953.7 mm
Width................................................ 325.5 mm
Net Weight ....................................... 2.5 kg
● COLOR
Head
WH............................................... White
Neck
ACG............................................. Aircraft Gray
Body
WH/ACG ..................................... White/Aircraft Gray
● BODY
Material ............................................ Agathis/Falcata
Body Depth ...................................... 44.5 mm
● FINGERBOARD
Material ............................................ Rosewood
Fingerboard Width ........................... 0-F 43.0 mm, 12-F 52.4 mm
● NECK
Material ............................................ Maple
Neck Thickness ................................ 1-F 20.0 mm, 12-F 23.0 mm
● PARTS
Hardware .......................................... Satin Chrome Plated
Nut.................................................... Urea
Bridge............................................... Fixed type (Satin Chrome)
Strings............................................... D’addario (XL-120)
● CONTROLS
Volume............................................. A 500 KΩ x 1
Pickup Switch................................... 4pole 3position Rotary Switch
● PICKUPS
Front/Rear .........................................Humbucking
Magnet
Front/Rear ....................................Alnico
Electrical Unit
Battery Box
FRONT PICKUP
REAR PICKUP
Screw the lug terminal in
cavity for the front pickup.
Screw the lug terminal in
cavity for the rear pickup.
to bridge ground
OUTPUT
JACK
Red
Red
Red
Black
Black
Black
Green+Bare Wire
Green+Bare Wire
White
