Yamaha RX-A720 User Manual

APPENDIX ➤ Ideal speaker layout En 110

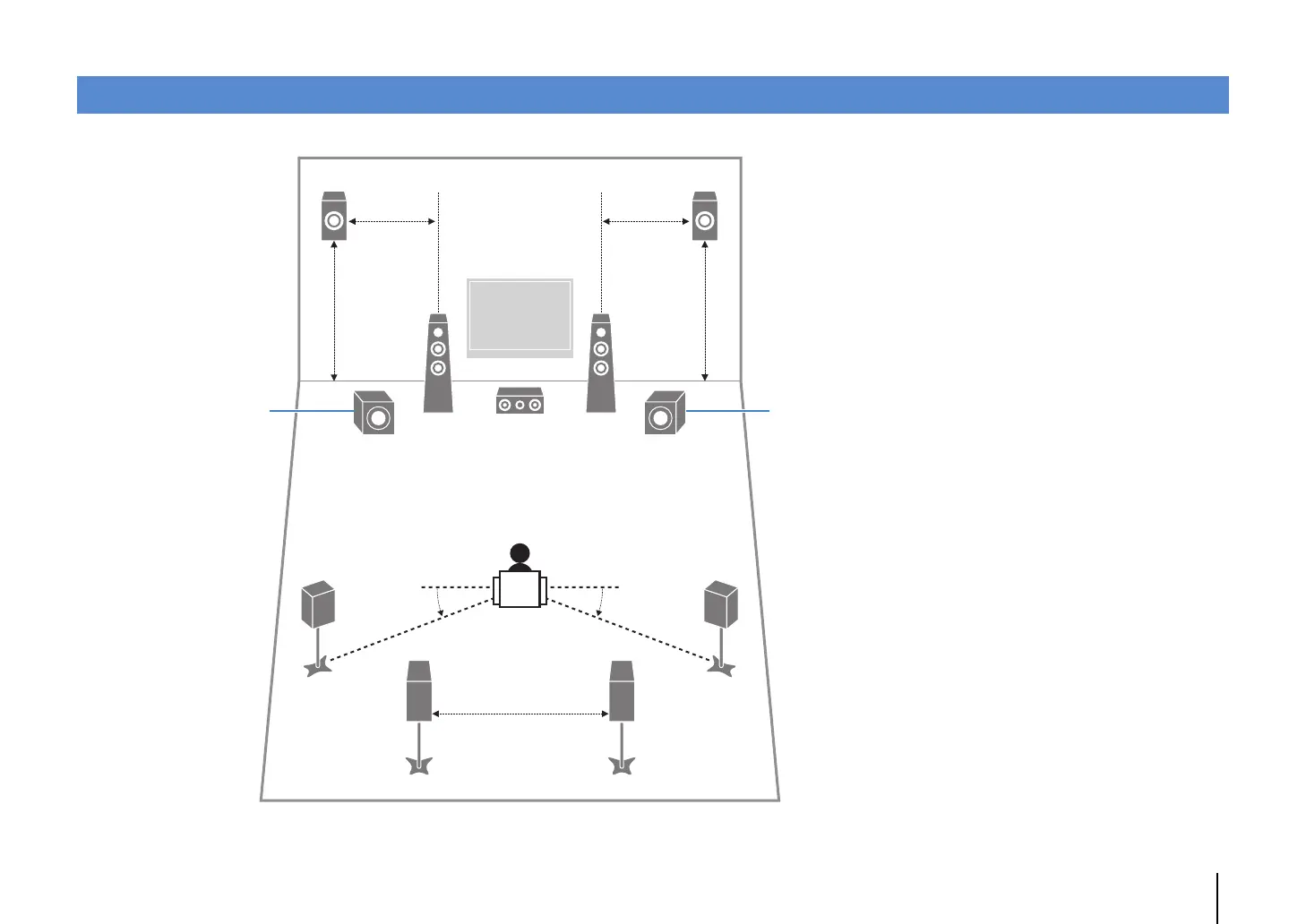

Use this diagram as a guide. You do not need to adjust the speaker layout to the following diagram exactly.
Ideal speaker layout
12
3
45
6 7
99
QW
30 cm (1 ft) or more
0.5 to 1 m
(1.6 to 3.3 ft)
1.8 m
(5.9 ft)
0.5 to 1 m
(1.6 to 3.3 ft)
1.8 m
(5.9 ft)
Turn it slightly inward to
reduce wall reflections.
Turn it slightly inward to
reduce wall reflections.
1 Front speaker (L)
2 Front speaker (R)
3 Center speaker
4 Surround speaker (L)
5 Surround speaker (R)
6 Surround back speaker (L)
7 Surround back speaker (R)
Q Presence speaker (L)
W Presence speaker (R)
9 Subwoofer
10° to 30°10° to 30°

Yamaha RX-A720 Specifications

General

Model	RX-A720
Amplifier Type	AV Receiver
Channels	7.2
HDMI Inputs	6
HDMI Outputs	1
Subwoofer Outputs	2
Optical Outputs	0
Component Video Outputs	1
Composite Video Outputs	1
USB Input	1
Phono Input	Yes
Optical Inputs	2
Coaxial Inputs	2
Component Video Inputs	2
Network Capability	Yes
AirPlay	Yes
Bluetooth	No
4K pass-through	Yes
3D pass-through	Yes
Weight	23.6 lbs
Frequency Response	10 Hz-100 kHz
Analog Audio Inputs	5
Supported Audio Formats	Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus
Power Output	90 W (8 ohms, 20 Hz - 20 kHz, 0.09 % THD, 2 ch driven)
Dimensions	435 x 171 x 369 mm
