Yamaha SLIDER EW50 NAKED User Manual

3
INSTRUMENT AND CONTROL FUNCTIONS
1
ZAUM0085
2
1
ZAUM0144
EAU00163
Rear brake lever
The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the
handlebar grip.
1. Rear brake lever
EAU03463
Fuel and 2-stroke engine oil
tank caps

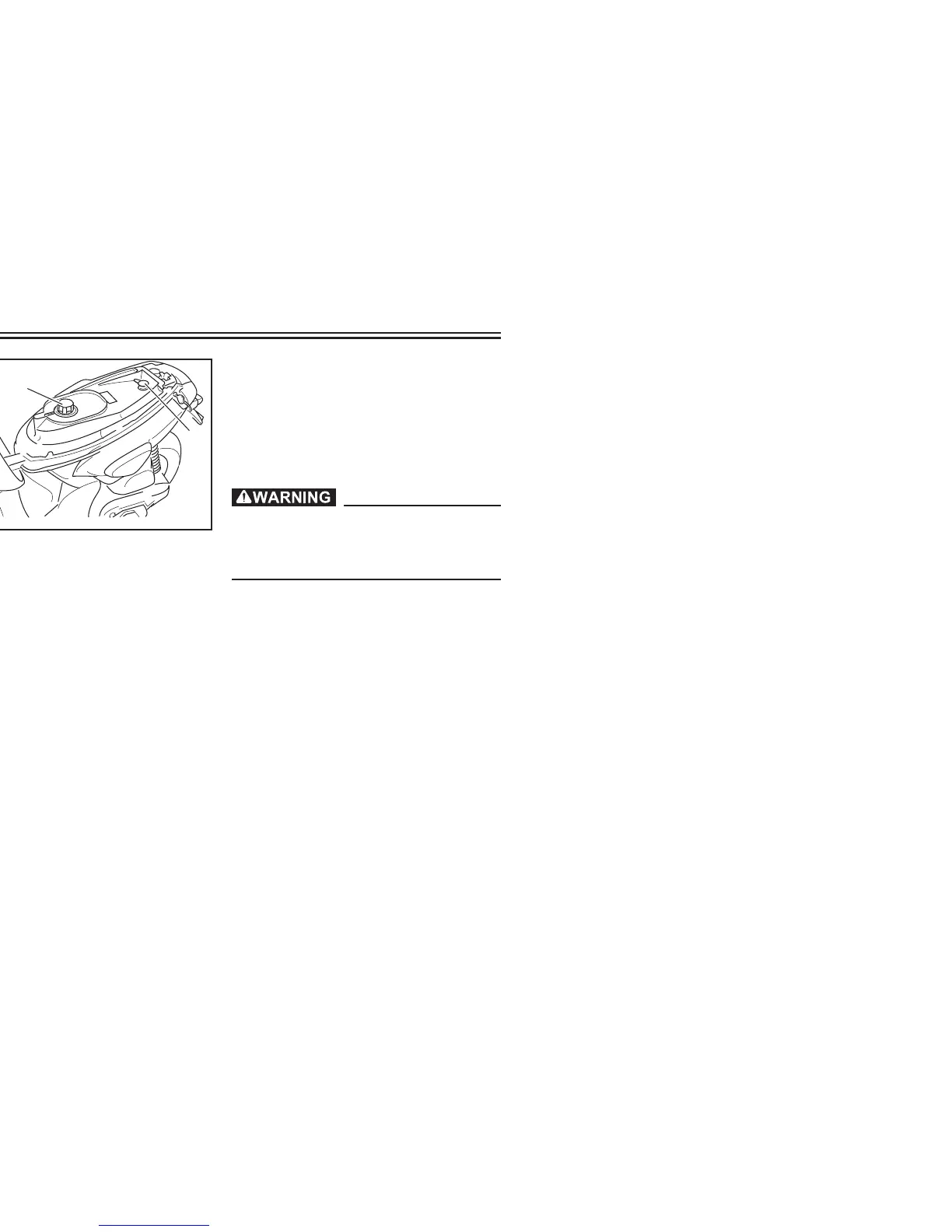

The fuel tank cap and the 2-stroke
engine oil tank cap are located under
the seat. (See page 3-8 for seat
opening and closing procedures.)
Fuel tank cap
To remove the fuel tank cap, turn it
counterclockwise, and then pull it off.
To install the fuel tank cap, turn it
clockwise.
2-stroke engine oil tank cap
To remove the 2-stroke engine oil tank
cap, pull it off.
To install the 2-stroke engine oil tank
cap, push it into the oil tank opening.
EW000025
Make sure that the fuel and 2-stroke
engine oil tank caps are properly
installed before riding the scooter.
1. Fuel tank cap
2. Oil tank cap
3-5

Yamaha SLIDER EW50 NAKED Specifications

General

Displacement	49cc
Starter	Electric and kick
Front Suspension	Telescopic fork
Rear Suspension	Unit Swing
Max Torque	2.7 Nm @ 6, 000 rpm
Fuel System	Carburetor
Transmission	Automatic
Rear Brake	Drum
