PERIODIC MAINTENANCE
3-23

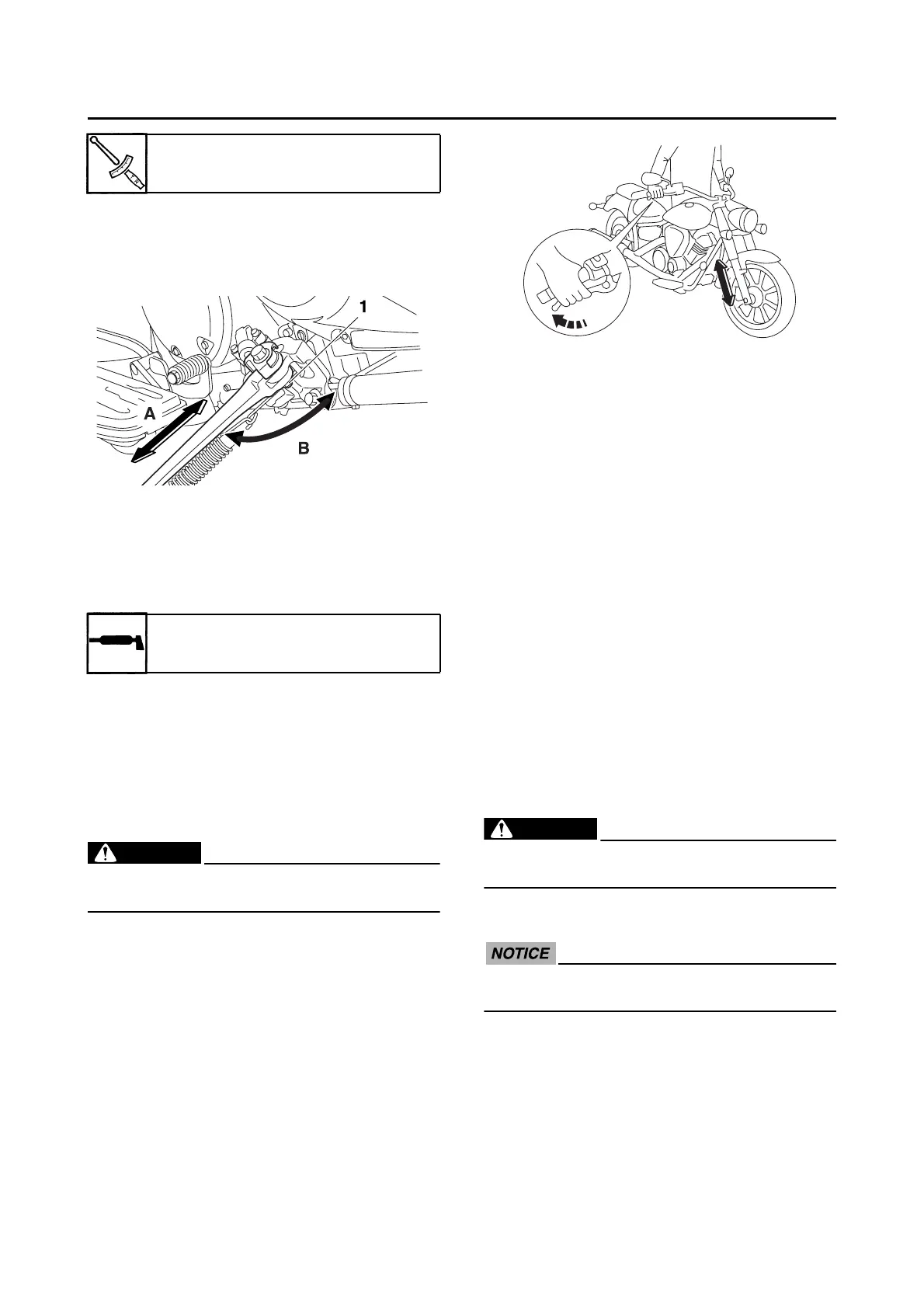

b. Check the sidestand vertical movement “A”
by moving the sidestand up and down.
c. Check the sidestand axial movement “B” by
moving the sidestand up and down.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS21720
LUBRICATING THE SIDESTAND
Lubricate the pivoting point and metal-to-metal
moving parts of the sidestand.
EAS5S71035
CHECKING THE SIDESTAND SWITCH
Refer to “ELECTRICAL COMPONENTS” on
page 7-83.
EAS21530
CHECKING THE FRONT FORK
1. Stand the vehicle on a level surface.
WARNING
EWA13120
Securely support the vehicle so that there
is no danger of it falling over.
2. Check:
• Inner tube
Damage/scratches → Replace.
• Oil seal
Oil leakage → Replace.
3. Hold the vehicle upright and apply the front
brake.
4. Check:
• Front fork operation
Push down hard on the handlebar several
times and check if the front fork rebounds
smoothly.
Rough movement → Repair.
Refer to “FRONT FORK” on page 4-46.
EAS5S71025
CHECKING THE REAR SHOCK ABSORBER
ASSEMBLY
1. Check:
• Damper rod
• Oil leakage
• Gas leakage
•Spring
Refer to “CHECKING THE REAR
SHOCK ABSORBER ASSEMBLY” on
page 4-60.
2. Check:
• Operation
Pump the rear shock absorber assembly
up and down several times.
Unsmooth operation → Replace rear
shock absorber assembly.
Refer to “REAR SHOCK ABSORBER
ASSEMBLY” on page 4-58.
EAS21590
ADJUSTING THE REAR SHOCK
ABSORBER ASSEMBLY
WARNING
EWA13120
Securely support the vehicle so that there
is no danger of it falling over.
Spring preload
ECA13590
Never go beyond the maximum or minimum
adjustment positions.
1. Remove:
• Left side cover
Refer to “GENERAL CHASSIS” on page
4-1.
• Air duct
• Drive pulley cover
Refer to “BELT DRIVE” on page 4-65.
• Drive belt upper guard
Refer to “REAR WHEEL” on page 4-13.
Sidestand nut
64 Nm (6.4 m·kgf, 46 ft·lbf)
Recommended lubricant
Lithium-soap-based grease
To Next Page
