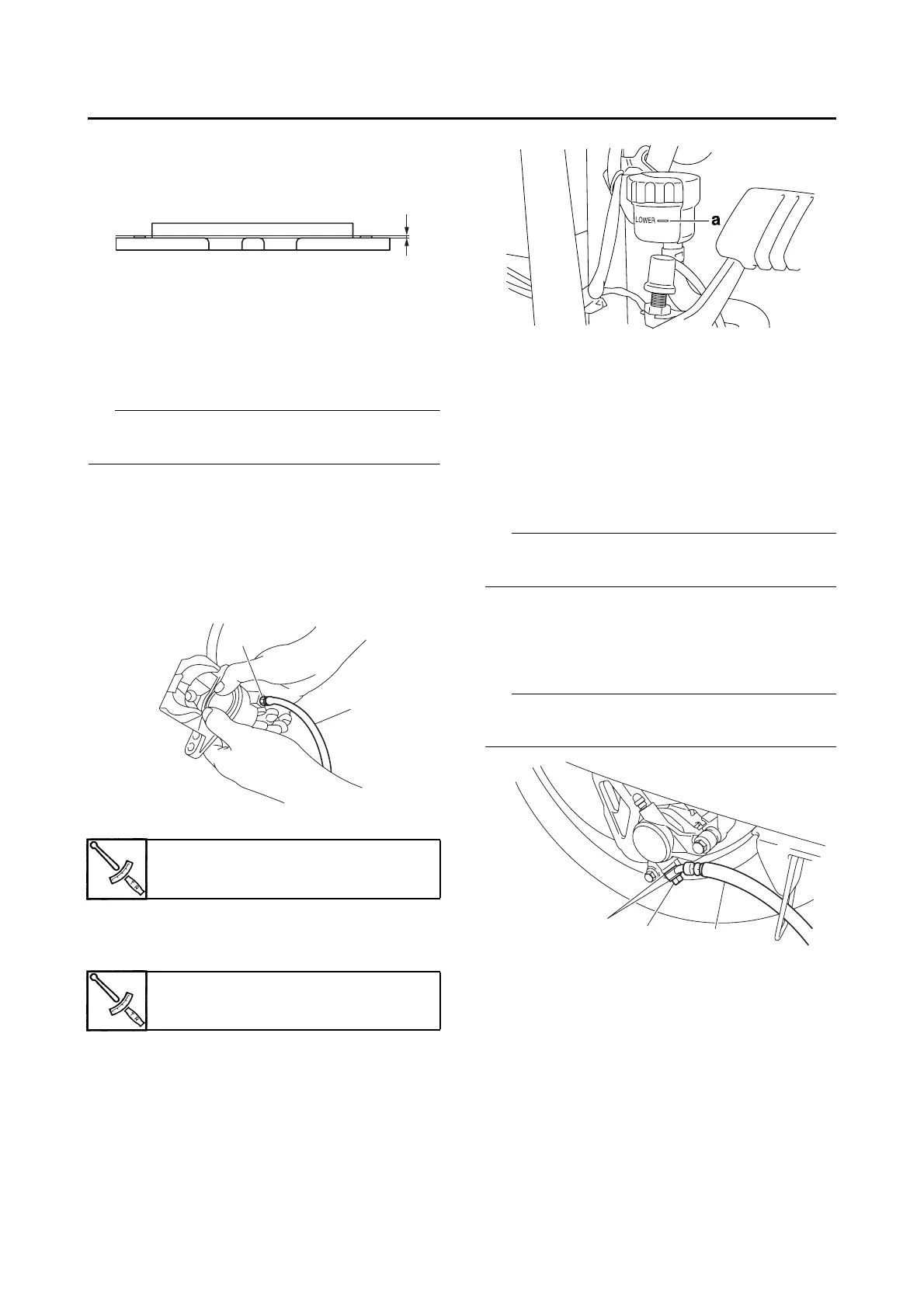

REAR BRAKE
4-37
2. Install:
• Brake pads
• Brake pad springs
TIP
Always install new brake pads and brake pad
springs as a set.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Connect a clear plastic hose “1” tightly to
the bleed screw “2”. Put the other end of
the hose into an open container.
b. Loosen the bleed screw and push the
brake caliper piston into the brake caliper
with your fingers.
c. Tighten the bleed screw to specification.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
3. Install:
• Rear brake caliper
4. Check:
• Brake fluid level
Below the minimum level mark “a” → Add
the recommended brake fluid to the
proper level.
Refer to “CHECKING THE BRAKE
FLUID LEVEL” on page 3-13.
5. Check:
• Brake pedal operation
Soft or spongy feeling → Bleed the brake
system.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM” on page 3-15.
EAS22590
REMOVING THE REAR BRAKE CALIPER
TIP
Before removing the brake caliper, drain the
brake fluid from the entire brake system.
1. Remove:
• Rear brake hose union bolt “1”
• Washers “2”
• Rear brake hose “3”
TIP
Put the end of the brake hose into a container
and pump out the brake fluid carefully.
EAS22600
DISASSEMBLING THE REAR BRAKE CALI-
PER
1. Remove:
• Brake caliper piston
• Brake caliper piston dust seal
• Brake caliper piston seal
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Blow compressed air into the brake hose
joint opening “a” to force out the piston from
the brake caliper.
Bleed screw
6 Nm (0.6 m·kgf, 4.3 ft·lbf)
Rear brake caliper retaining bolt
27 Nm (2.7 m·kgf, 19 ft·lbf)
a
1
2
2
1
3
To Next Page
