Yamaha SX190 2012 User Manual

Description
23
Location of main components

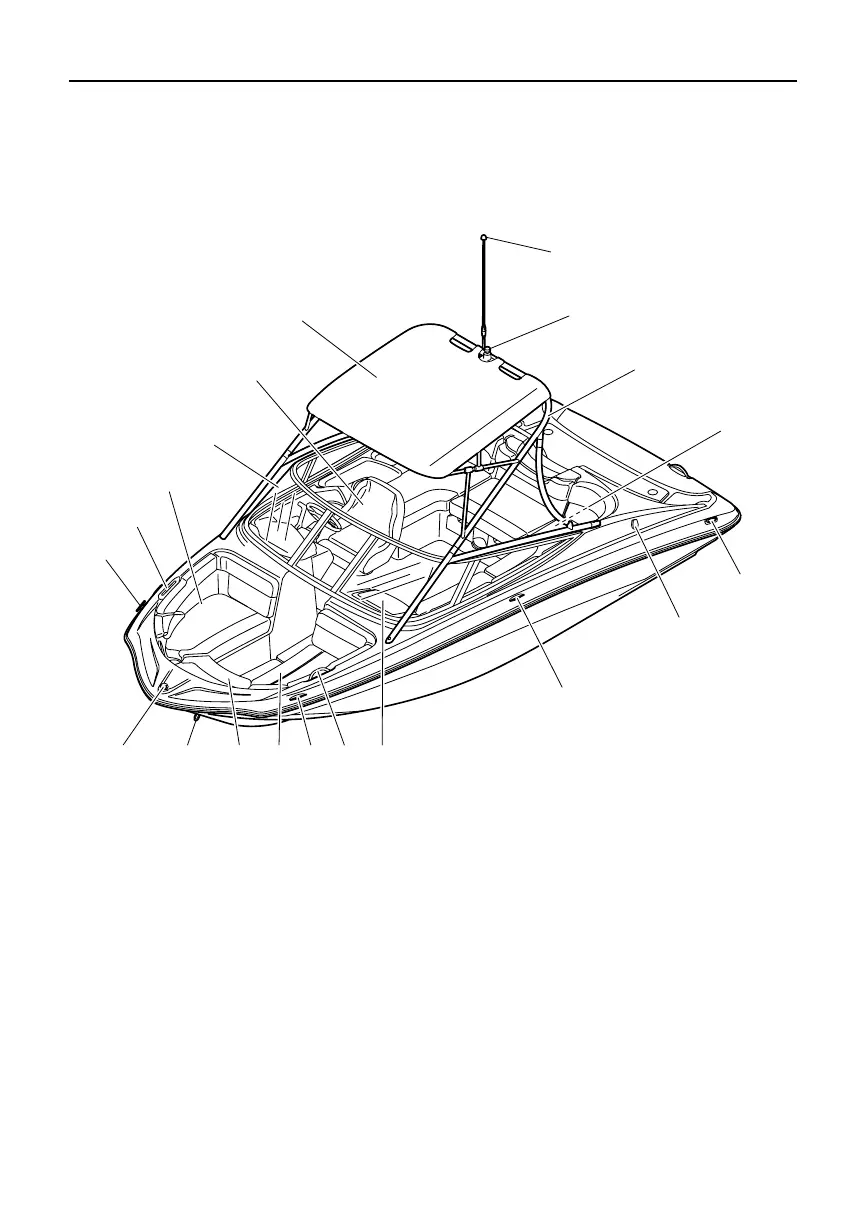

Exterior components
AR190
1 Cleat
2 Handgrip
3 Front starboard seat (page 48, 51)
4 Windshield (page 56)
5 Driver’s seat (page 48)
6 Bimini top (page 62)
7 Stern light (page 43, 57)
8 Tow pylon
9 Wakeboard tower (page 60)
10 Battery (page 82, 106, 117)
11 Bow light (page 43)
12 Bow eye
13 Front center seat (page 48, 51)
14 Front port seat (page 48, 51)
15 Glove compartment (page 53)
16 Fuel tank filler cap (page 70)
1
2
3
4
5
6
7
8
9
1
16
1
152114131211
10
SportsBoat.book Page 23 Monday, October 31, 2011 4:12 PM

Yamaha SX190 2012 Specifications

General

Fuel Capacity	30 gal
Engine	Yamaha 1.8L High Output
Seating Capacity	8 persons
Horsepower	180 HP
Propulsion	Jet Drive
Beam	8'0"
Length	19 ft
