5-66
OIL PAN AND OIL PUMP
ENG
EAS00365

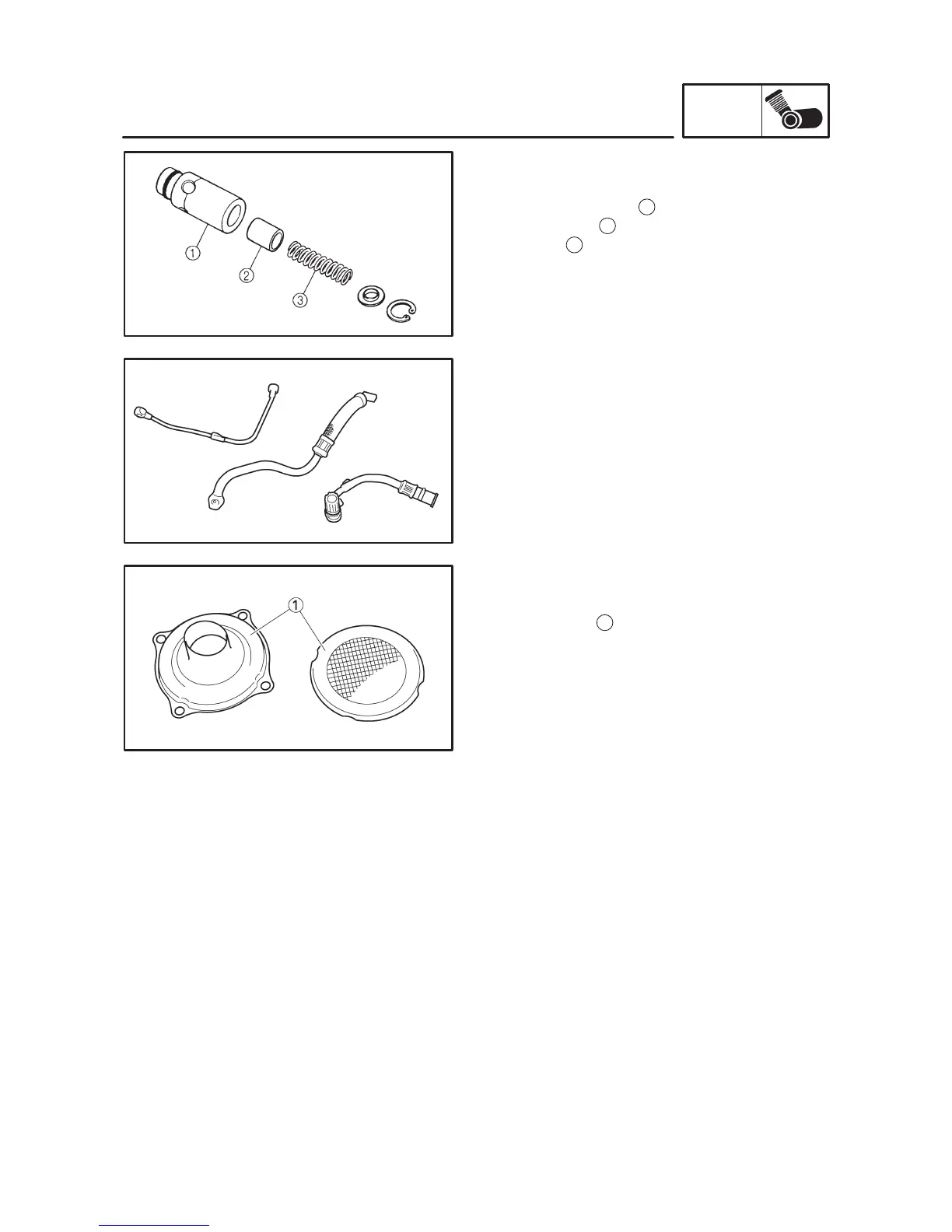

CHECKING THE RELIEF VALVE
1. Check:
S relief valve body
1
S relief valve
2
S spring
3
EAS00367
CHECKING THE OIL DELIVERY PIPES
The following procedure applies to all of the oil
delivery pipes.
1. Check:
S oil delivery pipes
Damage ! Replace.
Obstruction ! Wash and blow out with com-
pressed air.
EAS00368
CHECKING THE OIL STRAINER
1. Check:
S oil strainer
1
Damage ! Replace.
Contaminants ! Clean with solvent.
EAS00373
CHECKING THE OIL NOZZLES
The following procedure applies to all of the oil
nozzles.
1. Check:
S oil nozzle
S check ball
Damage/wear ! Replace the oil nozzle.
S O-ring
Damage/wear ! Replace.
S oil nozzle passage
Obstruction ! Blow out with compressed air.
To Next Page
