6-1
RADIATOR
COOL
Order Job/Part Q’ty Remarks
1
2
3
4
5
6

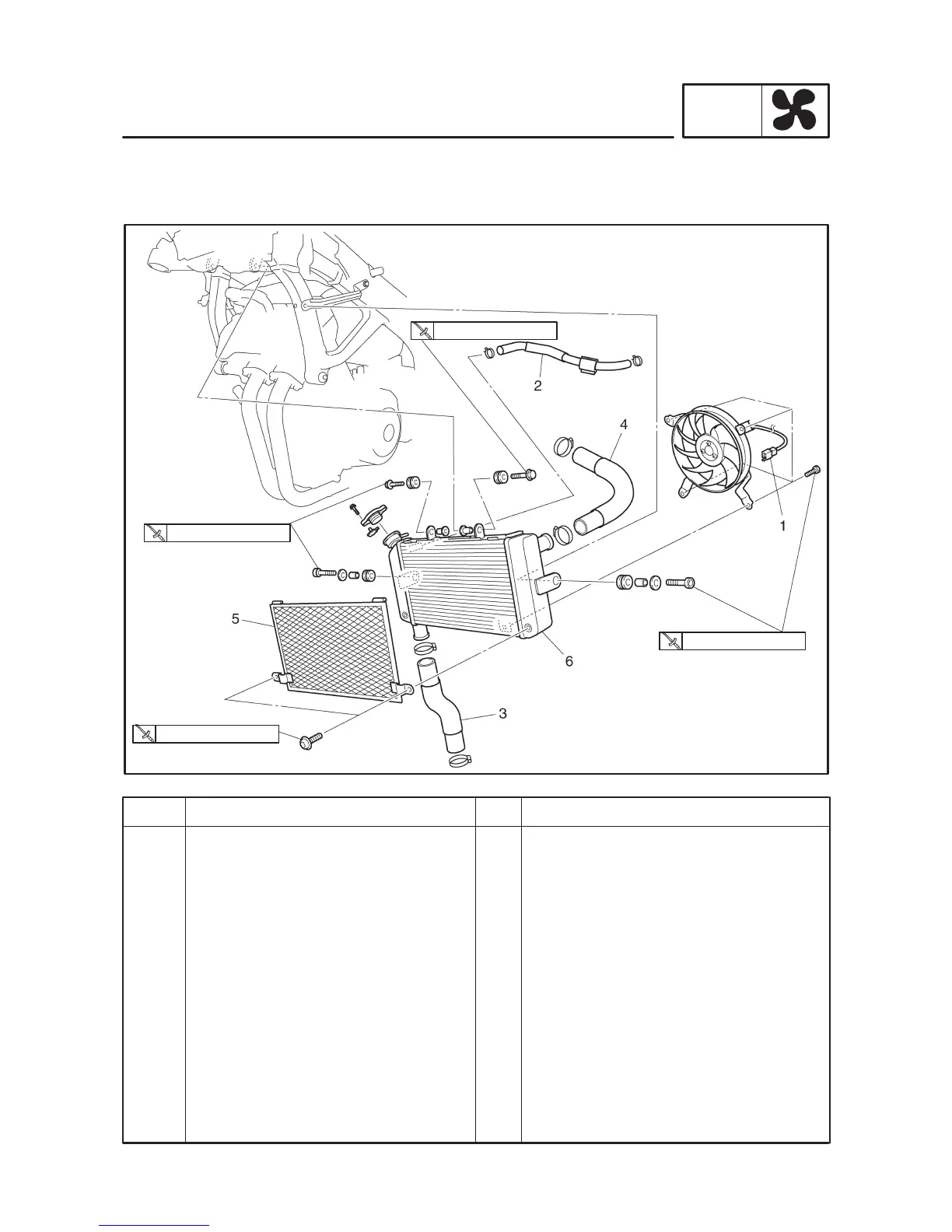

Removing the radiator
Side cowlings
Coolant
Fuel tank
Air filter case
Radiator fan coupler
Coolant reservoir hose
Radiator outlet hose
Radiator inlet hose
Radiator cover
Radiator
1
1
1
1
1
1
Remove the parts in the order listed.
Refer to “FRONT COWLING”.
Drain.
Refer to “CHANGING THE COOLANT”
in chapter 3.
Refer to “FUEL TANK” in chapter 3.
Refer to “AIR FILTER CASE” in chapter 3.
Disconnect.
For installation, reverse the removal
procedure.
7 Nm (0.7 mSkg)
7 Nm (0.7 mSkg)
7 Nm (0.7 mSkg)
5 Nm (0.5 mSkg)
EAS00454
COOLING SYSTEM
RADIATOR
To Next Page
