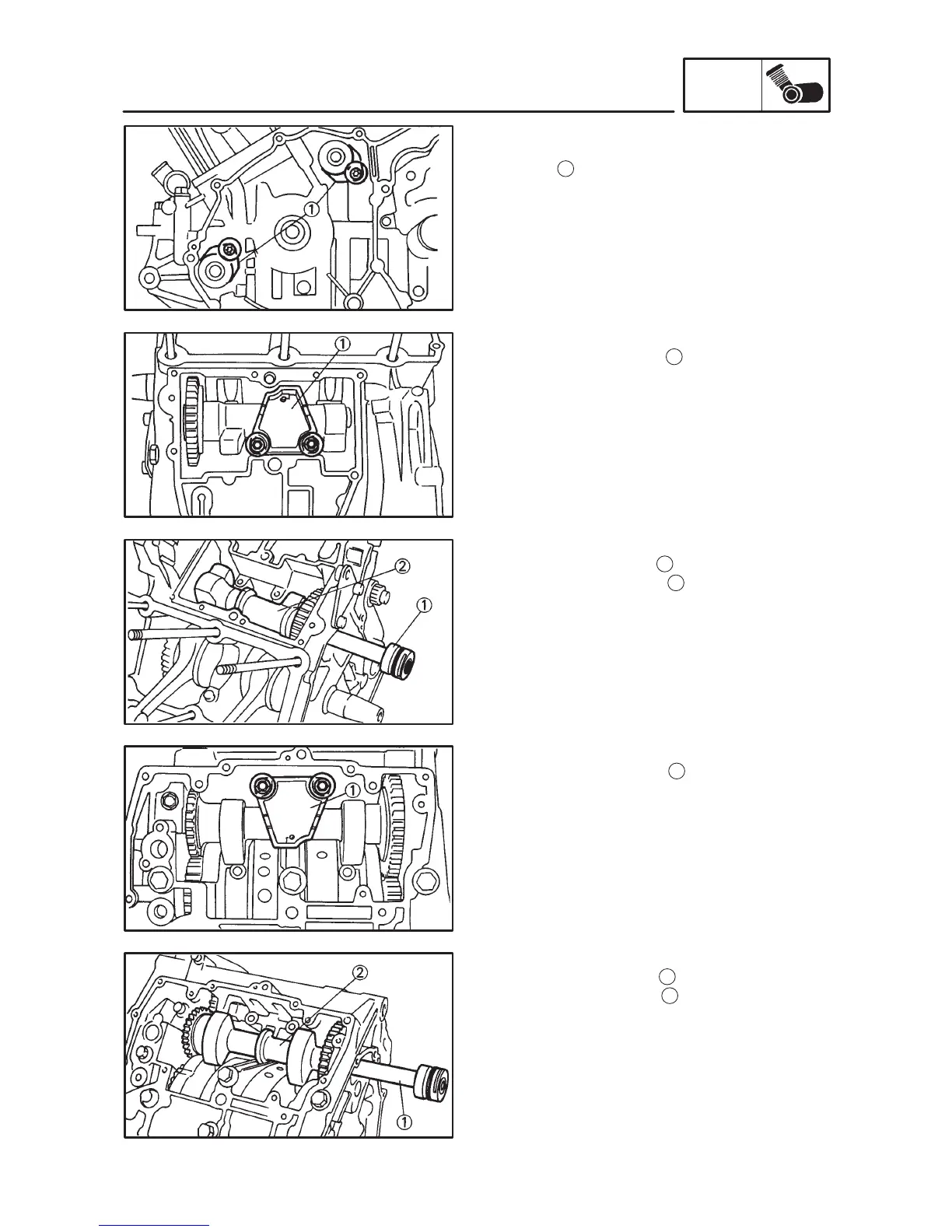

4-49
OIL PAN
ENG
REMOVAL
1. Remove:
Plate
1
2. Remove:
Rear balancer holder
1
Dowel pins
3. Remove:
Rear balancer shaft
1
Rear balancer weight
2
4. Remove:
Front balancer holder
1
Dowel pins
5. Remove:
Front balancer shaft
1
Front blancer weight
2
