8-41

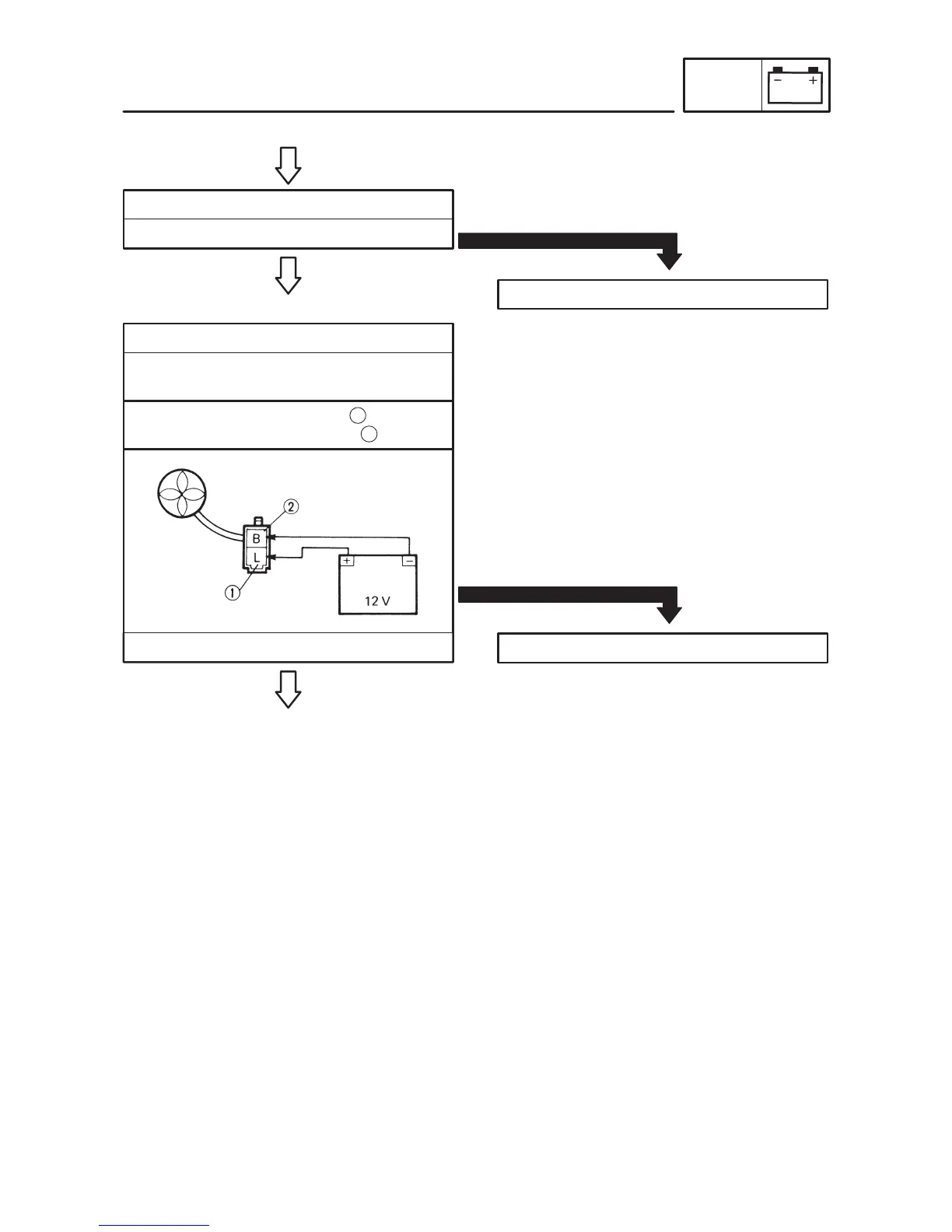

4. Fan motors
S Disconnect the fan motor couplers.
S Connect the battery (12 V) as shown.
Battery (+) lead Blue lead
Battery (–) lead Black lead
1
Main switch is faulty, replace it.
INCORRECT
3. Main switch
Refer to “SWITCH INSPECTION”.
S Check the fan motors for operation.
Fan motor(s) is faulty, replace it(them).
DOES NOT MOVES
CORRECT
2
:
MOVES
:
COOLING SYSTEM
ELEC

Table of Contents

Questions and Answers:

Yamaha TDM850 1996 Specifications

General IconGeneral
Displacement849 cc
Bore x Stroke89.5 mm x 67.5 mm
Compression Ratio10.5:1
Fuel SystemCarburetor
Transmission5-speed
Final DriveChain
Front SuspensionTelescopic fork
Rear SuspensionMonoshock
Front BrakesDual disc
Rear BrakesSingle disc
Rear Tire150/70-17
Fuel Capacity20 liters
Seat Height825 mm
Width800 mm
Engine Type4-stroke, parallel-twin
IgnitionDigital
