THROTTLE BODY
7-6

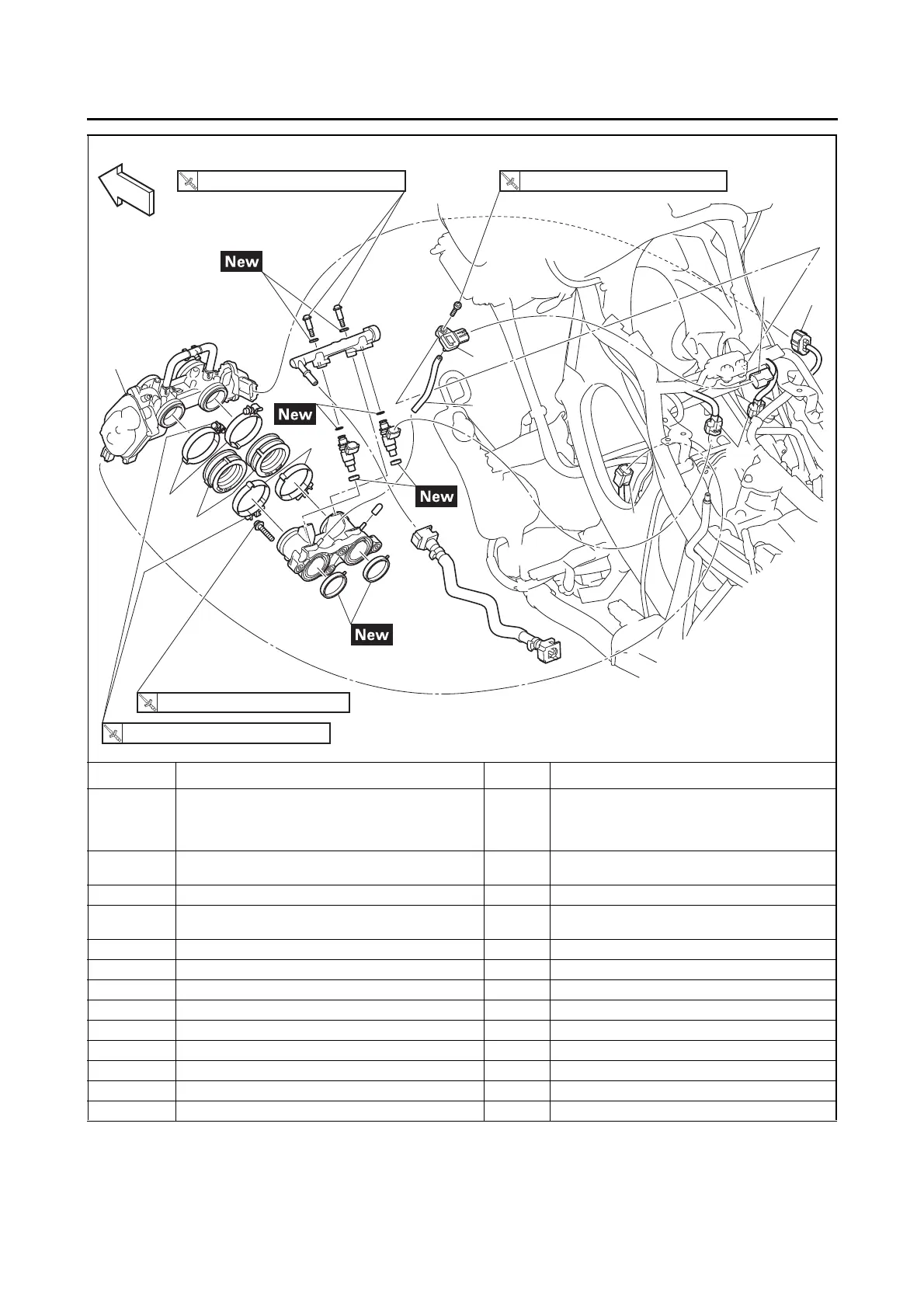

Removing the throttle body
Order Job/Parts to remove Q’ty Remarks
Windshield/Front cover/Windshield inner
panel/Meter assembly/Rearview mirror/Bottom
side cowling/Side panel/Front cowling assem-
bly/Leg shield assembly
Refer to “GENERAL CHASSIS (1)” on page
4-1.
Center cover/Fuel tank cover assembly/Side
cover/Footboard
Refer to “GENERAL CHASSIS (2)” on page
4-11.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Air filter case
Disconnect.
Refer to “THROTTLE BODY” on page 7-5.
1 Throttle servo motor coupler 1 Disconnect.
2 Throttle position sensor coupler 1 Disconnect.
3 Throttle body joint clamp screw 4 Loosen.
4 Throttle body assembly 1
5 Throttle body joint 2
6 Intake air pressure sensor coupler 1 Disconnect.
7 Injector coupler 2 Disconnect.
8 Intake air pressure sensor hose 1
9 Intake air pressure sensor 1
FWDFWD
1
2
3
3
4
5
6
7
9
8
(4)
3.5 N・m (0.35 kgf・m, 2.6 lb・ft) 2.0 N・m (0.20 kgf・m, 1.5 lb・ft)
14 N・m (1.4 kgf・m, 10 lb・ft)
3.0 N・m (0.30 kgf・m, 2.2 lb・ft)
To Next Page
